| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZX79-B5V6,143DIODE ZENER 5.6V 400MW ALF2 |
3,729 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 400 mW | Through Hole | 40 Ohms | -65°C ~ 200°C | 5.6 V | 1 µA @ 2 V | 900 mV @ 10 mA | |||
|
BZV85-C13,133NEXPERIA BZV85-C13 - ZENER DIODE |
123,900 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.3 W | Through Hole | 10 Ohms | -65°C ~ 200°C | 13 V | 200 nA @ 9.1 V | 1 V @ 50 mA | |||
|
PZU6.8B2L,315NEXPERIA PZU6.8B2L - ZENER DIODE |
49,977 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 250 mW | Surface Mount | 20 Ohms | -55°C ~ 150°C | 6.8 V | 500 nA @ 3.5 V | 1.1 V @ 100 mA | |||
|

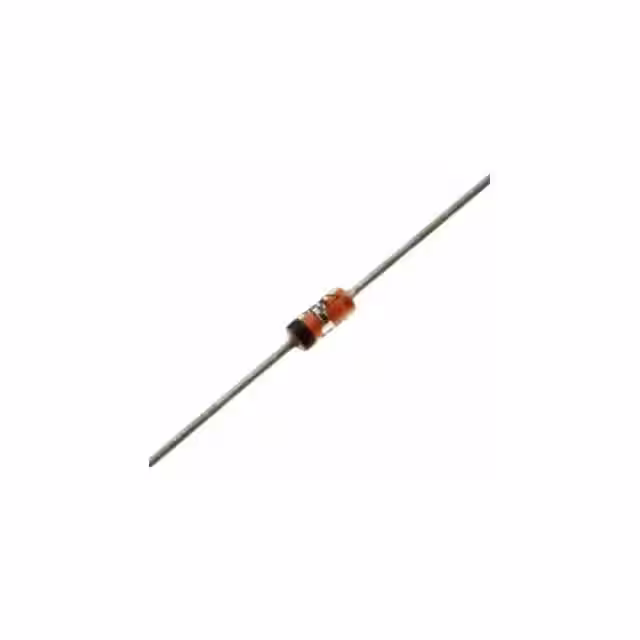

1N829ADIODE ZENER 6.2V 500MW DO35 |
676 | $6.92 |
RFQ |
Datasheet |
Bag | RoHS | ±5% | Active | 500 mW | Through Hole | 10 Ohms | -65°C ~ 175°C | 6.2 V | 2 µA @ 3 V | - | |||
|
MM3Z20VST1GDIODE ZENER 20V 300MW SOD323 |
2,378 | $0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 300 mW | Surface Mount | 55 Ohms | -65°C ~ 150°C (TJ) | 20 V | 50 nA @ 14 V | 900 mV @ 10 mA | |||
|
1SMB5949BT3GDIODE ZENER 100V 3W SMB |
3,642 | $0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | ±5% | Active | 3 W | Surface Mount | 250 Ohms | -65°C ~ 150°C | 100 V | 1 µA @ 76 V | 1.5 V @ 200 mA | |||
|
BZT52-C2V7S_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
2,043 | $0.23 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 200 mW | Surface Mount | 83 Ohms | -55°C ~ 150°C (TJ) | 2.7 V | 75 µA @ 1 V | - | ||||
|
BZX884S-C12-QYLBZX884S-C12-Q/SOD882BD/XSON2 |
3,291 | $0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±1.67% | Active | 365 mW | Surface Mount | 25 Ohms | 150°C (TJ) | 12 V | 100 nA @ 8 V | 900 mV @ 10 mA | |||
|
|
BZX84C18_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
2,326 | $0.20 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 410 mW | Surface Mount | 45 Ohms | -55°C ~ 150°C (TJ) | 18 V | 100 nA @ 12.6 V | - | ||||
|
JANTX1N4103UR-1DIODE ZENER 9.1V 500MW DO213AA |
287 | $11.44 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/435 | RoHS | ±5% | Discontinued at Digi-Key | 500 mW | Surface Mount | 200 Ohms | -65°C ~ 175°C | 9.1 V | 1 µA @ 6.69 V | 1.1 V @ 200 mA | ||
|
|
1N5240BTRDIODE ZENER 10V 0.5W 5% UNID |
40,000 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 500 mW | Through Hole | 17 Ohms | -65°C ~ 200°C | 10 V | 3 µA @ 8 V | 1.2 V @ 200 mA | |||
|
|
BZV85-C13,113NEXPERIA BZV85-C13 - ZENER DIODE |
122,922 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.3 W | Through Hole | 10 Ohms | -65°C ~ 200°C | 13 V | 200 nA @ 9.1 V | 1 V @ 50 mA | |||
|
1N4748A,133DIODE ZENER 22V 1W DO41 |
49,115 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1 W | Through Hole | 23 Ohms | -65°C ~ 200°C | 22 V | 5 µA @ 16.7 V | 1.2 V @ 200 mA | |||
|
BZY93C15DIODE ZENER 15V 20W DO4 |
1,000 | $7.50 |
RFQ |
Datasheet |
Box | RoHS | ±6% | Active | 20 W | Stud Mount | 1.2 Ohms | 175°C (TJ) | 15 V | 50 µA @ 10 V | - | |||
|
BZX84W-B11XDIODE ZENER 11V 275MW SOT323 |
2,308 | $0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | ±2% | Active | 275 mW | Surface Mount | 20 Ohms | 150°C (TJ) | 11 V | 100 nA @ 8 V | 900 mV @ 10 mA | ||
|
JANTX1N3025B-1DIODE ZENER 16V 1W DO204AL |
150 | $11.55 |
RFQ |
Bulk | Military, MIL-PRF-19500/115 | RoHS | ±5% | Discontinued at Digi-Key | 1 W | Through Hole | 16 Ohms | -55°C ~ 175°C | 16 V | 10 µA @ 12.2 V | 1.2 V @ 200 mA | |||
|
BZX8450-C51-QRBZX8450-C51-Q/SOT23/TO-236AB |
3,757 | $0.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 250 mW | Surface Mount | 180 Ohms | 150°C (TJ) | 51 V | 50 nA @ 35.7 V | 900 mV @ 10 mA | |||
|
BZV55-B4V7,135DIODE ZENER 4.7V 500MW LLDS |
3,832 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 500 mW | Surface Mount | 80 Ohms | -65°C ~ 200°C | 4.7 V | 3 µA @ 2 V | 900 mV @ 10 mA | |||
|
|
1N4742A,113NEXPERIA 1N4742A - ZENER DIODE, |
120,000 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | - | Active | - | - | - | - | - | - | - | |||
|
PZU6.2B3A,115DIODE ZENER 6.2V 320MW SOD323 |
36,000 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | ±2% | Active | 320 mW | Surface Mount | 30 Ohms | -55°C ~ 150°C | 6.2 V | 500 nA @ 3 V | 1.1 V @ 100 mA |
