| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZX884S-C75-QYLBZX884S-C75-Q/SOD882BD/XSON2 |
3,093 | $0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 365 mW | Surface Mount | 255 Ohms | 150°C (TJ) | 75 V | 50 nA @ 52.5 V | 900 mV @ 10 mA | |||
|
BZX84B20_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
3,218 | $0.20 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 410 mW | Surface Mount | 55 Ohms | -55°C ~ 150°C (TJ) | 20 V | 100 nA @ 14 V | - | ||||
|
|
BZT52-C6V8_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
2,814 | $0.16 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 410 mW | Surface Mount | 8 Ohms | -55°C ~ 150°C (TJ) | 6.8 V | 100 nA @ 3 V | - | ||||
|
BZX384B5V6-E3-08DIODE ZENER 5.6V 200MW SOD323 |
2,416 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | BZX384 | RoHS | ±2% | Active | 200 mW | Surface Mount | 40 Ohms | -55°C ~ 150°C | 5.6 V | 1 µA @ 2 V | - | ||
|
KDZVTFTR5.6BDIODE ZENER 5.6V 1W PMDU |
3,000 | $0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | ±6.25% | Active | 1 W | Surface Mount | - | 150°C (TJ) | 5.6 V | 20 µA @ 1.5 V | - | ||
|
MMSZ5254BS_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
3,639 | $0.23 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | MMSZ5221BS | RoHS | ±5% | Active | 200 mW | Surface Mount | 41 Ohms | -55°C ~ 150°C (TJ) | 27 V | 100 nA @ 21 V | - | |||
|
|
BZX884S-C9V1-QYLBZX884S-C9V1-Q/SOD882BD/XSON2 |
2,946 | $0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±1.98% | Active | 365 mW | Surface Mount | 15 Ohms | 150°C (TJ) | 9.1 V | 500 nA @ 6 V | 900 mV @ 10 mA | |||
|
|
MMSZ5253B_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
3,812 | $0.20 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 500 mW | Surface Mount | 35 Ohms | -55°C ~ 150°C (TJ) | 25 V | 100 nA @ 19 V | - | ||||
|
|
BZT52-C11_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
2,222 | $0.16 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 410 mW | Surface Mount | 20 Ohms | -55°C ~ 150°C (TJ) | 11 V | 100 nA @ 8.5 V | - | ||||
|
|
BZX384B75-E3-08DIODE ZENER 75V 200MW SOD323 |
3,676 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | BZX384 | RoHS | ±2% | Active | 200 mW | Surface Mount | 255 Ohms | -55°C ~ 150°C | 75 V | 50 nA @ 52.5 V | - | ||
|
BZX85C20ZENER DIODE, 20V, 5%, 1W, UNIDIR |
49,000 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.3 W | Through Hole | 24 Ohms | - | 20 V | 500 nA @ 15 V | 1.2 V @ 200 mA | |||
|
1N3011BDIODE ZENER 150V 10W DO4 |
500 | $7.50 |
RFQ |
Datasheet |
Box | RoHS | ±5% | Active | 10 W | Stud Mount | 175 Ohms | -65°C ~ 175°C (TJ) | 150 V | 5 µA @ 114 V | 1.5 V @ 2 A | |||
|
BZX55B12-TAPDIODE ZENER 12V 500MW DO35 |
2,282 | $0.23 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | Automotive, AEC-Q101, BZX55 | RoHS | ±2% | Active | 500 mW | Through Hole | 20 Ohms | -65°C ~ 175°C | 12 V | 100 nA @ 9.1 V | 1.5 V @ 200 mA | ||
|
JANTX1N3035B-1DIODE ZENER 43V 1W DO41 |
146 | $11.55 |
RFQ |
Bulk | Military, MIL-PRF-19500/115 | RoHS | ±5% | Discontinued at Digi-Key | 1 W | Through Hole | 70 Ohms | -55°C ~ 175°C | 43 V | 10 µA @ 32.7 V | 1.2 V @ 200 mA | |||
|
BZX79-B22,143DIODE ZENER 22V 400MW ALF2 |
3,974 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 400 mW | Through Hole | 55 Ohms | -65°C ~ 200°C | 22 V | 50 nA @ 15.4 V | 900 mV @ 10 mA | |||
|
PZU7.5B2L,315NEXPERIA PZU7.5B2L - ZENER DIODE |
117,500 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 250 mW | Surface Mount | 10 Ohms | -55°C ~ 150°C | 7.5 V | 500 nA @ 4 V | 1.1 V @ 100 mA | |||
|
TDZ27J,115NOW NEXPERIA TDZ27J - ZENER DIOD |
2,371 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 500 mW | Surface Mount | 40 Ohms | -55°C ~ 150°C | 27 V | 50 nA @ 18.9 V | 1.1 V @ 100 mA | |||
|

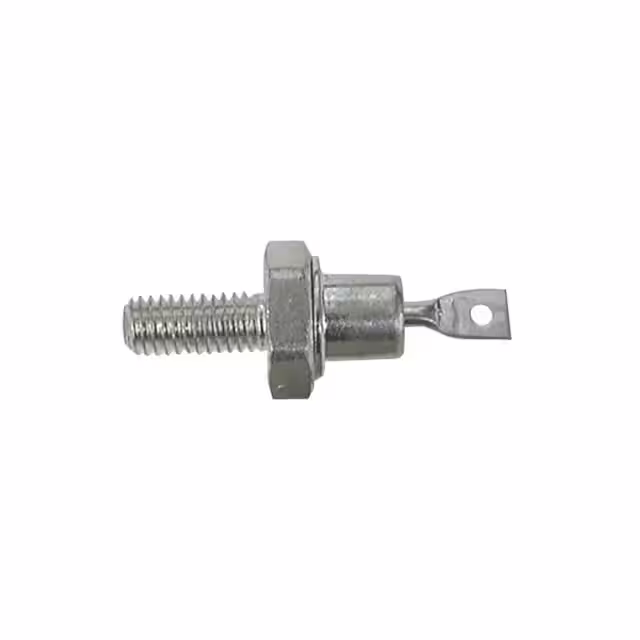

BZY93C24DIODE ZENER 24V 20W DO4 |
500 | $7.50 |
RFQ |
Datasheet |
Box | RoHS | ±6.67% | Active | 20 W | Stud Mount | 2 Ohms | 175°C (TJ) | 24 V | 50 µA @ 16 V | - | |||
|
NZX10D,133DIODE ZENER 10V 500MW ALF2 |
2,276 | $0.23 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | ±2% | Active | 500 mW | Through Hole | 25 Ohms | -55°C ~ 175°C | 10 V | 200 nA @ 7 V | 1.5 V @ 200 mA | |||
|
|
JANTX1N3038B-1DIODE ZENER 56V 1W DO204AL |
120 | $11.55 |
RFQ |
Bulk | Military, MIL-PRF-19500/115 | RoHS | ±5% | Discontinued at Digi-Key | 1 W | Through Hole | 110 Ohms | -55°C ~ 175°C | 56 V | 10 µA @ 42.6 V | 1.2 V @ 200 mA |
