| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZT52C8V2-13-FDIODE ZENER 8.2V 370MW SOD123 |
2,659 | $0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±6% | Active | 370 mW | Surface Mount | 15 Ohms | -65°C ~ 150°C | 8.2 V | 700 nA @ 5 V | 900 mV @ 10 mA | |||
|
JANTX1N4108-1DIODE ZENER 14V 500MW DO35 |
116 | $8.09 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/435 | RoHS | ±5% | Discontinued at Digi-Key | 500 mW | Through Hole | 200 Ohms | -65°C ~ 175°C | 14 V | 50 nA @ 10.65 V | 1.1 V @ 200 mA | ||
|
BZV85-C36,113NEXPERIA BZV85-C36 - ZENER DIODE |
152,230 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.3 W | Through Hole | 50 Ohms | -65°C ~ 200°C | 36 V | 50 nA @ 25 V | 1 V @ 50 mA | |||
|
1N4751ATRDIODE ZENER 30V 1W DO41 |
54,094 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1 W | Through Hole | 40 Ohms | -65°C ~ 200°C | 30 V | 5 µA @ 22.8 V | - | |||
|
1N2970BDIODE ZENER 6.8V 10W DO4 |
420 | $6.50 |
RFQ |
Datasheet |
Box | RoHS | ±5% | Active | 10 W | Stud Mount | 1.2 Ohms | -65°C ~ 175°C (TJ) | 6.8 V | 150 µA @ 5.2 V | 1.5 V @ 2 A | |||
|
BZX85C15 A0GDIODE ZENER 15V 1.3W DO204AL |
2,576 | $0.23 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | ±5% | Active | 1.3 W | Through Hole | 15 Ohms | -55°C ~ 175°C (TJ) | 15 V | 500 nA @ 11 V | 1.2 V @ 10 mA | |||
|
JANTX1N4101UR-1DIODE ZENER 8.2V 500MW DO213AA |
3,963 | $8.58 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/435 | RoHS | ±5% | Active | 500 mW | Surface Mount | 200 Ohms | -65°C ~ 175°C | 8.2 V | 1 µA @ 6.24 V | 1.1 V @ 200 mA | ||
|
1N4728ATRDIODE ZENER 3.3V 1W DO41 |
150,000 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1 W | Through Hole | 10 Ohms | -65°C ~ 200°C | 3.3 V | 100 µA @ 1 V | - | |||
|
|
BZX85C22ZENER DIODE, 22V, 5%, 1W, UNIDIR |
54,000 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1.3 W | Through Hole | 25 Ohms | - | 22 V | 500 nA @ 16 V | 1.2 V @ 200 mA | |||
|

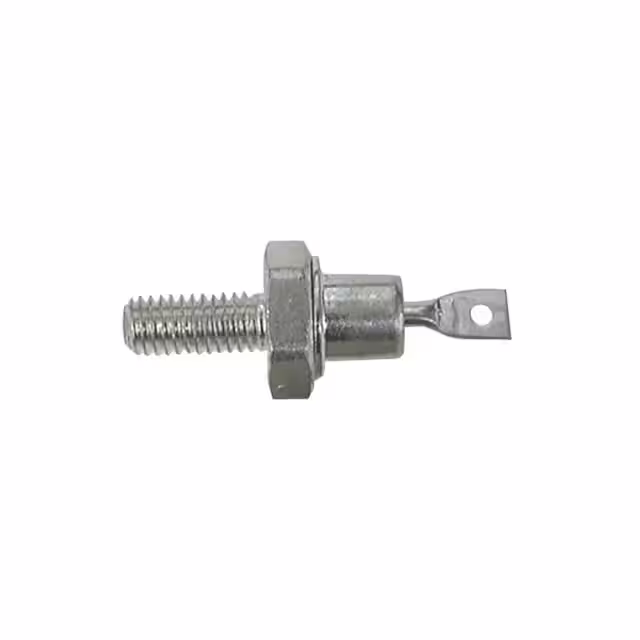

1N2976RBDIODE ZENER 12V 10W DO4 |
200 | $6.50 |
RFQ |
Datasheet |
Box | RoHS | ±5% | Active | 10 W | Stud Mount | 3 Ohms | -65°C ~ 175°C (TJ) | 12 V | 5 µA @ 9.1 V | 1.5 V @ 2 A | |||
|
NZX10B,133DIODE ZENER 10V 500MW ALF2 |
2,557 | $0.23 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | ±2% | Active | 500 mW | Through Hole | 25 Ohms | -55°C ~ 175°C | 10 V | 200 nA @ 7 V | 1.5 V @ 200 mA | |||
|
JANTX1N4980DIODE ZENER 82V 5W AXIAL |
1,455 | $8.92 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/356 | RoHS | ±5% | Active | 5 W | Through Hole | 80 Ohms | -65°C ~ 175°C | 82 V | 2 µA @ 62.2 V | 1.5 V @ 1 A | ||
|
BZX84C10BZX84C10 - ZENER DIODE SINGLE 10 |
44,491 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | - | Active | - | Surface Mount | 20 Ohms | - | 10 V | 200 nA @ 7 V | - | |||
|
PZU5.1B1,115NEXPERIA PZU5.1B1 - ZENER DIODE, |
150,000 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 310 mW | Surface Mount | 60 Ohms | -65°C ~ 150°C | 5.1 V | 2 µA @ 1.5 V | 1.1 V @ 100 mA | |||
|
|
1N4728A,133DIODE ZENER 3.3V 1W DO41 |
52,723 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1 W | Through Hole | 10 Ohms | -65°C ~ 200°C | 3.3 V | 100 µA @ 1 V | 1.2 V @ 200 mA | |||
|
1N2986BDIODE ZENER 24V 10W DO4 |
200 | $6.50 |
RFQ |
Datasheet |
Box | RoHS | ±5% | Active | 10 W | Stud Mount | 5 Ohms | -65°C ~ 175°C (TJ) | 24 V | 5 µA @ 18.2 V | 1.5 V @ 2 A | |||
|
BZT52H-C33,115DIODE ZENER 33V 375MW SOD123F |
2,515 | $0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | ±5% | Active | 375 mW | Surface Mount | 40 Ohms | -65°C ~ 150°C (TA) | 33 V | 50 nA @ 23.1 V | 900 mV @ 10 mA | ||
|
|
JANTX1N969BUR-1DIODE ZENER 22V 500MW DO213AA |
236 | $9.28 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/117 | RoHS | ±5% | Discontinued at Digi-Key | 500 mW | Surface Mount | 29 Ohms | -65°C ~ 175°C | 22 V | 5 µA @ 16.7 V | 1.1 V @ 200 mA | ||
|
BZX84C4V3ZENER DIODE, 4.3V, 5%, 0.25W, UN |
43,120 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 250 mW | Surface Mount | - | - | 4.3 V | - | - | |||
|
MM3Z51VCDIODE ZENER 51V 200MW SOD323F |
142,437 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 200 mW | Surface Mount | 169 Ohms | -65°C ~ 150°C | 51 V | 45 nA @ 35.7 V | 1 V @ 10 mA |
