| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

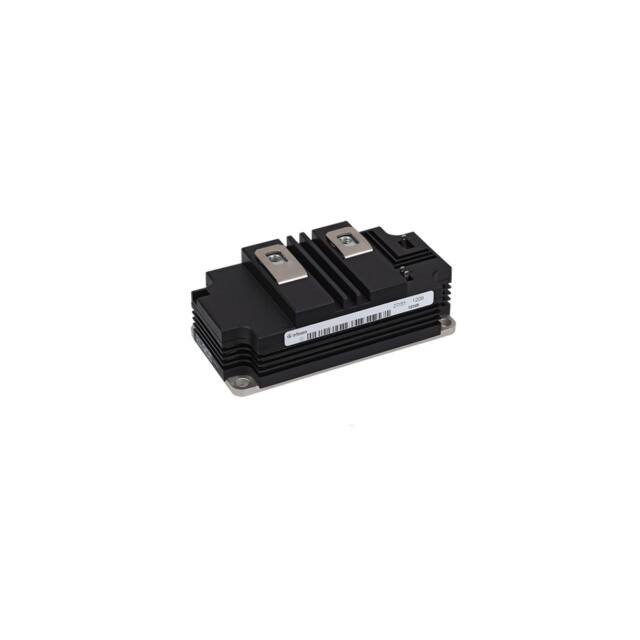

DD200S33K2CC1NOSA1MODULE DIODE IHV73-3 |
2,140 | $241500.00 |
RFQ |
Datasheet |
Tray | - | Last Time Buy | 1 Pair Series Connection | Standard | 3300 V | 200A (DC) | 3.5 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 275 A @ 1800 V | -40°C ~ 125°C | Chassis Mount |
|
MBR10200CDSCHOTTKY DIODE 200V 10A TO-252 |
3,137 | $0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 175°C | Surface Mount |
|
|
MBR10100CDSCHOTTKY DIODE 100V 10A TO-252 |
3,268 | $0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 800 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 175°C | Surface Mount |
|
|
MBR10150CDSCHOTTKY DIODE 150V 10A TO-252 |
2,928 | $0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 175°C | Surface Mount |
|
BAS70-05ESchottkyD, 70V, 0.07A |
2,834 | $0.30 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Schottky | 70 V | 70mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | -55°C ~ 125°C | Surface Mount |
|
BAT54CWSchottkyD, 30V, 0.2A |
3,388 | $0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 3 µA @ 30 V | -55°C ~ 150°C | Surface Mount |
|
DD500S33HE3BPSA1DIODE MODULE VCES 3300V 500A |
102 | $892.29 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | 2 Independent | Standard | 3300 V | - | 3.85 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 A @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD1200S17H4B2BOSA2DIODE MODULE 1200V 1200A |
2,439 | $1266.07 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 1700 V | - | 2.1 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | 1250 A @ 900 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD200S33K2CNOSA1RECTIFIER DIODE MOD 3300V 200A |
2,028 | $1276.15 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | - | Standard | 3300 V | - | 3.5 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 270 A @ 1800 V | -40°C ~ 125°C | Chassis Mount |
|
DD800S45KL3B5NPSA1DIODE MOD 4500V 800A 1600W |
2,826 | $1859.13 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 4500 V | 800A (DC) | 3.1 V @ 800 A | - | - | 1000 A @ 2800 V | -50°C ~ 125°C | Chassis Mount |
|
|
DD250S65K3NOSA1DIODE MODULE GP 6500V AIHV130-6 |
2,044 | $1324.05 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 6500 V | - | 3.5 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | - | 370 A @ 3600 V | -50°C ~ 125°C | Chassis Mount |
|
|
DD1000S33HE3BPSA1DIODE MODULE 3300V 1000A |
3,495 | $1062.84 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | 2 Independent | Standard | 3300 V | - | 3.85 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | 1000 A @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
|

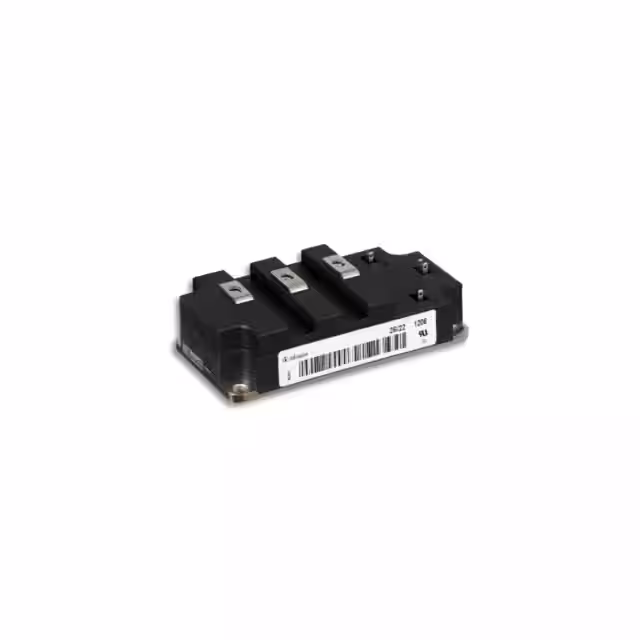

DD400S45KL3B5NOSA1DIODE MODULE GP 4500V AIHV130-4 |
3,743 | $1444.17 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 4500 V | - | 3.1 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 A @ 2800 V | -50°C ~ 125°C | Chassis Mount |
|
DD500S33HE3B60BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB13 |
2,585 | $1444.17 |
RFQ |
Tray | - | Active | 2 Independent | Standard | 3300 V | 500A (DC) | 3.85 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 A @ 1800 V | -40°C ~ 150°C | Chassis Mount | |
|
|
DD400S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
3,694 | $1605.22 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | 2 Independent | Standard | 3300 V | - | 3.5 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | 550 A @ 1800 V | -40°C ~ 125°C | Chassis Mount |
|
DD400S33KL2CNOSA1DIODE MODULE GP 3300V AIHV73-3 |
2,714 | $1605.22 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | - | Standard | 3300 V | - | 2.6 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | 530 A @ 1800 V | -40°C ~ 125°C | Chassis Mount |
|
|
DD1000S33HE3B60BOSA1IHV IHM T XHP 3 3-6 5K AG-IHVB13 |
2,491 | $1668.03 |
RFQ |
Tray | - | Active | 2 Independent | Standard | 3300 V | 1000A (DC) | 3.85 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | 1000 A @ 1800 V | -40°C ~ 150°C | Chassis Mount | |
|

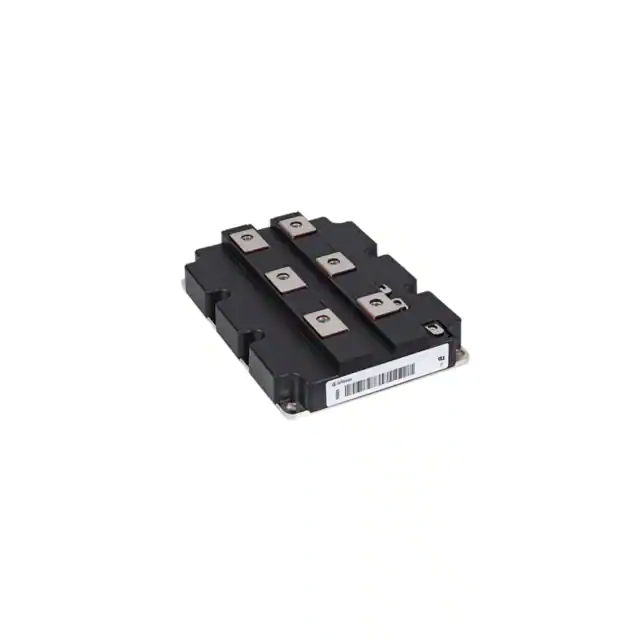

DZ3600S17K3B2NOSA1DIODE MODULE GP 1700V AIHM190-1 |
2,310 | $1752.51 |
RFQ |
Datasheet |
Tray | - | Not For New Designs | 3 Independent | Standard | 1700 V | - | 2.2 V @ 3600 A | Standard Recovery >500ns, > 200mA (Io) | - | 3050 A @ 900 V | -40°C ~ 125°C | Chassis Mount |
|
|
DD500S65K3NOSA1DIODE MODULE VCES 3300V 500A |
2,079 | $1875.51 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 6500 V | - | 3.5 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 730 A @ 3600 V | -50°C ~ 125°C | Chassis Mount |
|
|
DD800S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
3,463 | $1956.26 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | 2 Independent | Standard | 3300 V | - | 3.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 1100 A @ 1800 V | -40°C ~ 125°C | Chassis Mount |
