| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCDC600A120AGPM-DIODE-SIC-SBD-SP6C |
2,741 | $671.42 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1200 V | 600A (DC) | 1.8 V @ 600 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
PD410611DIODE MODULE 600V 1100A POWRBLOK |
3,530 | $687.63 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 600 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 600 V | - | Chassis Mount |
|
|
PD410811DIODE MODULE 800V 1100A POWRBLOK |
3,470 | $687.63 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 800 V | - | Chassis Mount |
|
|
PD411011DIODE MODULE 1KV 1100A POWRBLOK |
2,763 | $693.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1000 V | - | Chassis Mount |
|
|
PD411211DIODE MODULE 1.2KV 1100A POWRBLK |
3,403 | $699.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1200 V | - | Chassis Mount |
|
|
PD411411DIODE MODULE 1.4KV 1100A POWRBLK |
2,727 | $707.40 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1400 V | - | Chassis Mount |
|

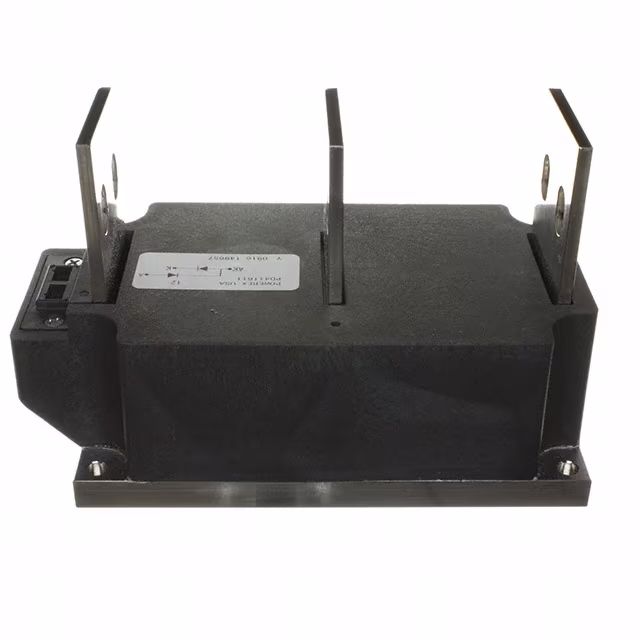

PD411611DIODE MODULE 1.6KV 1100A POWRBLK |
3,424 | $713.31 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 1100A | - | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD411811DIODE MODULE 1.8KV 1100A POWRBLK |
2,939 | $723.23 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1800 V | - | Chassis Mount |
|
DD435N40KHPSA1DIODE MODULE GP 4000V 573A |
2,425 | $626.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 4000 V | 573A | 1.71 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 4000 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD412011DIODE MODULE 2KV 1100A POWRBLOK |
3,307 | $733.09 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2000 V | - | Chassis Mount |
|
|
PD412211DIODE MODULE 2.2KV 1100A POWRBLK |
3,260 | $744.96 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2200 V | - | Chassis Mount |
|
|
PD412411DIODE MODULE 2.4KV 1100A POWRBLK |
2,379 | $764.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2400 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2400 V | - | Chassis Mount |
|
|
PD412611DIODE MODULE DUAL |
2,117 | $774.63 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2600 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD414010DIODE MODULE DUAL |
3,445 | $861.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 4000 V | 1100A | 1.35 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 200 mA @ 4000 V | -40°C ~ 150°C | Chassis Mount |
|
MSCDC450A170AGPM-DIODE-SIC-SBD-SP6C |
3,717 | $1041.98 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1700 V | 450A (DC) | 1.8 V @ 450 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
DD800S17H4B2BOSA2DIODE MODUL GP 1700V AGIHMB130-1 |
2,874 | $1116.13 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 1700 V | - | 2.1 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 900 A @ 900 V | -40°C ~ 150°C | Chassis Mount |
|
DD750S65K3NOSA1DIODE MODULE GP 6500V AIHV130-6 |
2,038 | $2189.46 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 6500 V | - | 3.5 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 1100 A @ 3600 V | -50°C ~ 125°C | Chassis Mount |
|
|
DD1200S45KL3B5NOSA1DIODE MODULE 1200V 1200A |
3,564 | $2197.65 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 4500 V | - | 3.1 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | 1500 A @ 2800 V | -50°C ~ 125°C | Chassis Mount |
|
|
DD170N36KHPSA1DIODE MODULE GP 2500V 98A |
3,709 | $21595.00 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 3600 V | 170A | 1.82 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 mA @ 3600 V | 150°C | Chassis Mount |
|
|
DD250S65K3C1NPSA1IHV IHM T XHP 3 3-6 5K |
3,854 | $210000.00 |
RFQ |
Datasheet |
Tray | - | Active | 2 Independent | Standard | 6500 V | 250A (DC) | 3.5 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | - | 370 mA @ 3600 V | -50°C ~ 125°C | Chassis Mount |
