| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2954918DIODE MODULE 1.3KV 700MA |
3,884 | $270.77 |
RFQ |
Datasheet |
Bulk | - | Active | 32 Common Cathode | Standard | 1300 V | 700mA | 800 mV @ 700 mA | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 150°C | DIN Rail |
|
DD175N32KHPSA1DIODE MODULE GP 3200V 223A |
3,644 | $254.54 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 3200 V | 223A | 2.05 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 3200 V | -40°C ~ 150°C | Chassis Mount |
|
1N6771RUFR,FRR |
2,570 | $290.40 |
RFQ |
Bulk | - | Active | 1 Pair Common Anode | Standard, Reverse Polarity | 200 V | 8A (DC) | 1.06 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 160 V | - | Through Hole | |
|
|
PD700MYN16DIODE MODULE PHASE LEG D+D 1.6KV |
3,915 | $324.90 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 700A | 1.3 V @ 2000 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
1N6659U1UFR,FRR |
3,868 | $335.24 |
RFQ |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 200 V | 15A (DC) | 1 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | - | Surface Mount | |
|
DD600N12KHPSA2DIODE MODULE GP 1200V 600A |
3,595 | $305.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 600A | 1.32 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
JANS1N6842U3POWER SCHOTTKY |
2,372 | $349.64 |
RFQ |
Bulk | Military, MIL-PRF-19500/680 | Active | 1 Pair Common Cathode | Schottky | 60 V | 10A | 780 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 60 V | -65°C ~ 150°C | Surface Mount | |
|
|
DD600N14KHPSA2DIODE MODULE GP 1400V 600A |
3,075 | $312.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 600A | 1.32 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1400 V | -40°C ~ 150°C | Chassis Mount |
|
DD540N22KHPSA2DIODE MODULE GP 2200V 540A |
2,257 | $317.89 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 540A | 1.48 V @ 1700 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2200 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD710N16KHPSA2DIODE MODULE GP 1600V 710A |
2,061 | $325.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 710A | 1.31 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD600N18KHPSA2DIODE MODULE GP 1800V 600A |
3,532 | $328.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 600A | 1.32 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD540N22KTIMHPSA1THYR / DIODE MODULE DK |
3,479 | $334.78 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 2200 V | 540A | 1.48 V @ 1.7 kA | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2200 V | 150°C (Max) | Chassis Mount |
|
|
VS-VSKD600-08PBFDIODE GEN 800V 300A MAGNAPAK |
2,799 | $388.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 800 V | 300A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD600-12PBFDIODE GEN 1.2KV 300A MAGNAPAK |
3,558 | $388.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 300A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD600-16PBFDIODE GEN 1.6KV 300A MAGNAPAK |
3,394 | $388.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 300A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD600-20PBFDIODE GEN 2KV 300A MAGNAPAK |
2,295 | $388.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 2000 V | 300A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 2000 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD600N16KAHPSA1DIODE ARRAY MOD 1200V 950A |
2,663 | $306.65 |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | - | - | - | - | - | - | - | - | - | - |
|
MSCDC200KK170D1PAGPM-DIODE-SIC-SBD-D1P |
3,295 | $473.46 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1700 V | 200A (DC) | 1.8 V @ 200 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|

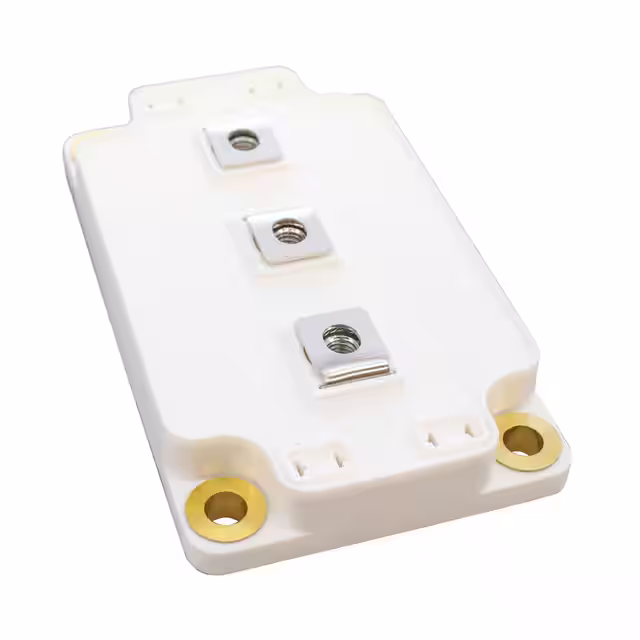

MSCDC450A120AGPM-DIODE-SIC-SBD-SP6C |
3,589 | $537.96 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1200 V | 450A (DC) | 1.8 V @ 450 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
|
DD435N36KHPSA1DIODE MODULE GP 3600V 573A |
2,059 | $540.75 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 3600 V | 573A | 1.71 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 3600 V | -40°C ~ 150°C | Chassis Mount |
