| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DD171N18KHPSA2THYR / DIODE MODULE DK |
3,554 | $161.18 |
RFQ |
Datasheet |
Tray | DD171N | Active | 1 Pair Series Connection | Standard | 1800 V | 171A | 1.26 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | 150°C | Chassis Mount |
|
|
DD171N16KHPSA2DIODE |
3,121 | $156.89 |
RFQ |
Datasheet |
Tray | DD171N | Active | 1 Pair Series Connection | Standard | 1600 V | 171A | 1.26 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | 150°C | Chassis Mount |
|
|
PD700MYN18DIODE MODULE PHASE LEG D+D 1.8KV |
2,946 | $334.27 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 700A | 1.3 V @ 2000 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|

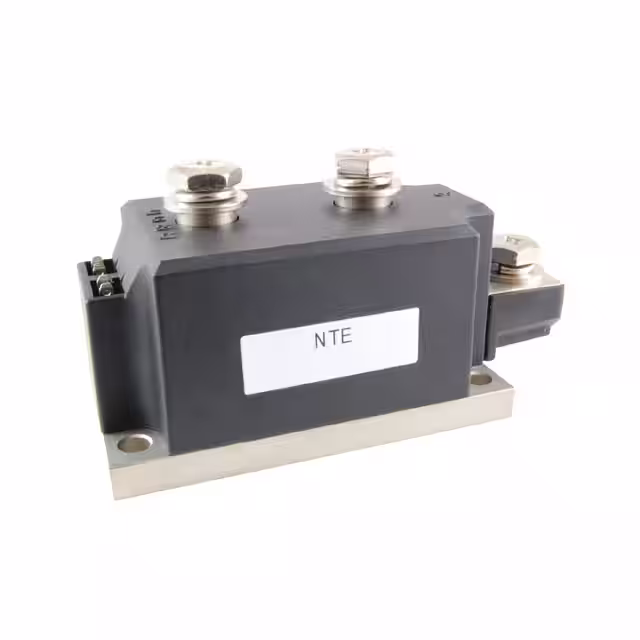

NTE6236RECT-MODULE 1600V 250 AMP |
2,782 | $411.14 |
RFQ |
Datasheet |
Bag | - | Active | 1 Pair Series Connection | Standard | - | 250A | 1.29 V @ 785 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
DDB6U215N16LHOSA1DIODE MODULE GP 1600V |
3,366 | $199.36 |
RFQ |
Datasheet |
Tray | - | Active | 3 Independent | Standard | 1600 V | - | 1.61 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
CMPD2003S TR TIN/LEADDIODE GEN PURP 200V 200MA SOT23 |
3,992 | $0.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Series Connection | Standard | 200 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 200 V | -65°C ~ 150°C | Surface Mount |
|
BAT54AWFDIODE SCHOTTKY 30V 200MA SC70 |
3,861 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 150°C (Max) | Surface Mount |
|
|
BAT54CWFDIODE SCHOTTKY 30V 200MA SC70 |
3,328 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 150°C (Max) | Surface Mount |
|
|
BAT54SWFDIODE SCHOTTKY 30V 200MA SC70 |
3,059 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 150°C (Max) | Surface Mount |
|
BAT54SQ-13SCHOTTKY DIODE SOT23 T&R 10K |
3,312 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 150°C | Surface Mount |
|
|
BAT54CQ-13SCHOTTKY DIODE SOT23 T&R 10K |
3,380 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 150°C | Surface Mount |
|
BAV170VLDIODE ARRAY GP 85V 125MA SOT23 |
2,967 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Standard | 85 V | 125mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 5 nA @ 75 V | 150°C (Max) | Surface Mount |
|
BAW56-HE3-18DIODE ARRAY GP 70V 250MA SOT23 |
2,692 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAT54AQ-13SCHOTTKY DIODE SOT23 T&R 10K |
2,559 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 150°C | Surface Mount |
|
BAW56M,315DIODE ARRAY GP 90V 150MA SOT883 |
2,720 | $1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 90 V | 150mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 150°C (Max) | Surface Mount |
|
|
BAS40-04Q-13-FSCHOTTKY DIODE SOT23 T&R 10K |
3,923 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 40 V | 200mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | -55°C ~ 125°C | Surface Mount |
|
BAT54AWDIODE SCHOTTKY 30V 100MA SOT323 |
3,453 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Anode | Schottky | 30 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAT54CWDIODE SCHOTTKY 30V 100MA SOT323 |
3,497 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Anode | Schottky | 30 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAV70WDIODE STANDARD 75V 150MA SOT323 |
3,128 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Standard | 75 V | 150mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 2.5 µA @ 75 V | -65°C ~ 150°C | Surface Mount |
|
|
PMEG3002EEFZPMEG3002EEF/SOD972/DFN0603 |
3,149 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | - | Schottky | 30 V | 200mA | 520 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 2 ns | 15 µA @ 30 V | 150°C (Max) | Surface Mount |
