| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAW56HDW-13DIODE FS 100V 250MA SOT363 |
3,797 | $0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 2 Pair Common Anode | Standard | 100 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 500 nA @ 80 V | -65°C ~ 155°C | Surface Mount |
|
BAV99TQ-13-FDIODE ARRAY GP 85V 75MA SOT523 |
2,041 | $0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Standard | 85 V | 75mA (DC) | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2 µA @ 75 V | -65°C ~ 150°C | Surface Mount |
|
BAS40-06Q-7-FSCHOTTKY DIODE SOT23 T&R 3K |
2,816 | $0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 40 V | 200mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | -55°C ~ 125°C | Surface Mount |
|

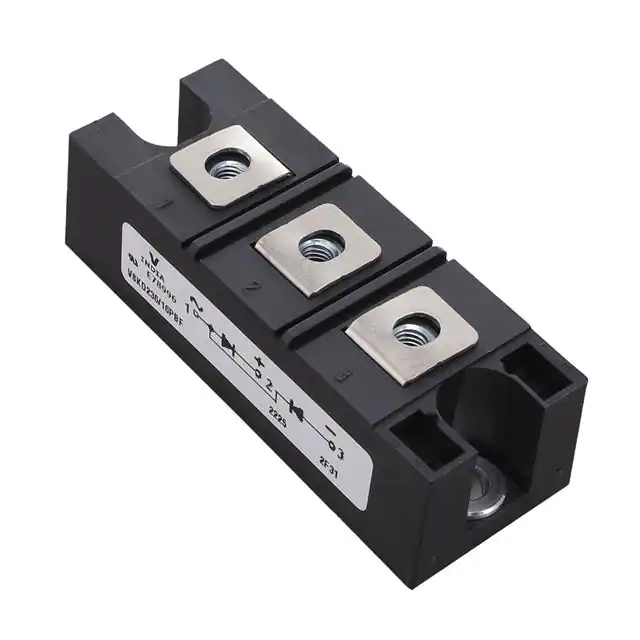

VS-VSKD236/16PBFDIODE GEN 1.6KV 115A INTAPAK |
3,954 | $69.24 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
GD2X150MPS06N650V 300A SOT-227 SIC SCHOTTKY M |
3,321 | $71.73 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | Active | 2 Independent | Silicon Carbide Schottky | 650 V | 150A (DC) | 1.8 V @ 150 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 650 V | -55°C ~ 175°C | Chassis Mount |
|

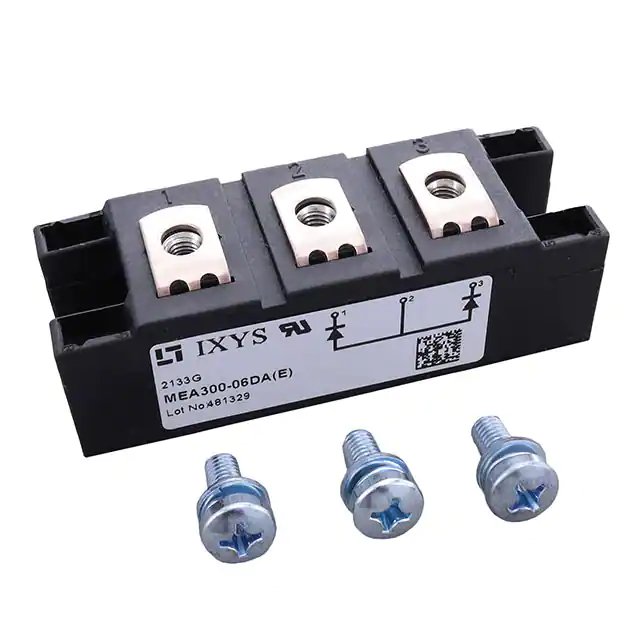

MEA300-06DADIODE MODULE 600V 304A Y4-M6 |
2,745 | $73.75 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Common Anode | Standard | 600 V | 304A | 1.36 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 12 mA @ 600 V | - | Chassis Mount |
|
|
MEA250-12DADIODE MODULE 1.2KV 260A Y4-M6 |
3,763 | $77.25 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Common Anode | Standard | 1200 V | 260A | 1.8 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 12 mA @ 1200 V | - | Chassis Mount |
|
|
MSCDR90A160BL1NGPM-DIODE-RECTIFIER-BL1 |
2,580 | $81.08 |
RFQ |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 90A (DC) | 1.21 V @ 33 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 1600 V | -55°C ~ 150°C | Chassis Mount | |
|
|
MDMA280P1600YDBIPOLAR MODULE - DIODE Y4-M5/6 |
3,609 | $84.51 |
RFQ |
Box | MDMA280P1600YD | Active | 1 Pair Series Connection | Standard | 1600 V | 280A | 1.14 V @ 280 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount | |
|
VS-VSKCS409/150DIODE SCHOTTKY 150V 200A ADDAPAK |
2,304 | $88.84 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 150 V | 200A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKDS409/150DIODE SCHOTTKY 150V 100A ADDAPAK |
2,695 | $88.84 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 100A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 175°C | Chassis Mount |
|
|
MDD200-22N1DIODE MODULE 2.2KV 224A Y4-M6 |
2,562 | $94.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 224A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 2200 V | - | Chassis Mount |
|
|
PD100KN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,723 | $103.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | 1.54 V @ 320 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
MDD310-16N1DIODE MODULE 1.6KV 305A Y2-DCB |
2,366 | $118.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1600 V | - | Chassis Mount |
|
|
PD200KN8DIODE MODULE PHASE LEG D+D 0.8KV |
3,933 | $118.77 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 200A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD200MYN18DIODE MODULE PHASE LEG D+D 1.8KV |
3,492 | $133.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 200A | 1.5 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD200KN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,457 | $134.61 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.53 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD250KN8ADIODE MODULE PHASE LEG D+D 0.8KV |
3,664 | $151.94 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 250A | 1.57 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD250KN16ADIODE MODULE PHASE LEG D+D 1.6KV |
3,841 | $155.19 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 250A | 1.72 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

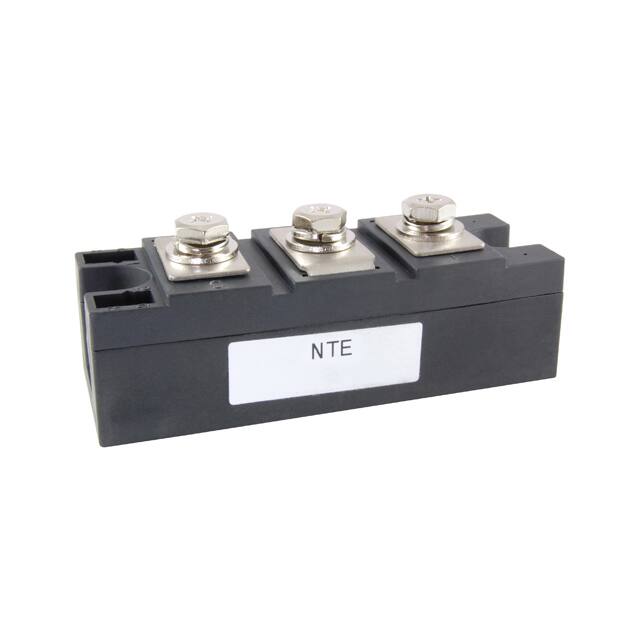

NTE6234RECT-MODULE 1600V 195AMPS |
2,215 | $158.00 |
RFQ |
Datasheet |
Bag | - | Active | 1 Pair Series Connection | Standard | - | 190A | 1.38 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 µA @ 1600 V | - | Chassis Mount |
