| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

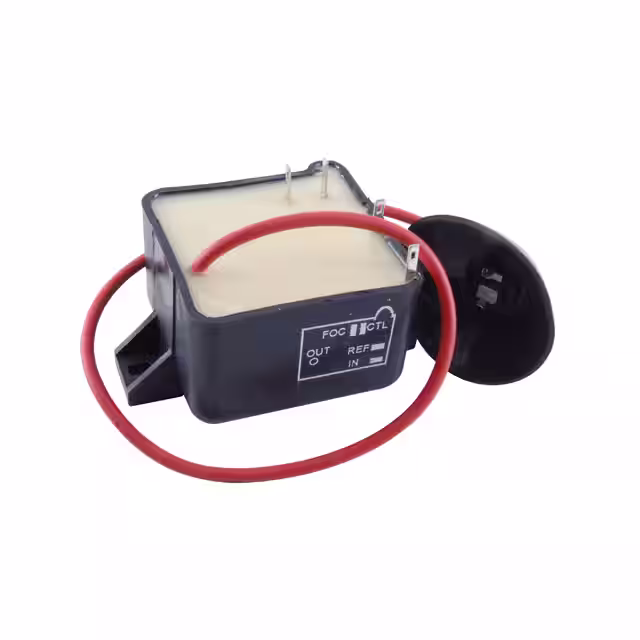

NTE528R-5 STEP TRIPLER |
2,854 | $29.10 |
RFQ |
Datasheet |
Bag | - | Active | 5 Series Connection | Standard | 30000 V | - | - | - | - | - | - | Chassis Mount |
|
MDD44-18N1BDIODE MODULE 1.8KV 64A TO240AA |
3,692 | $29.47 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 64A | 1.6 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1800 V | - | Chassis Mount |
|
VS-UFL330FA60RECTIFIER MODULE 330A SOT-227 |
160 | $30.13 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 2 Independent | Standard | 600 V | 243A (DC) | 1.65 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 98 ns | 150 µA @ 600 V | -55°C ~ 175°C | Chassis Mount |
|
GHXS050B065S-D3SIC SBD PARALLEL POWER MODULE 65 |
2,722 | $34.78 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 650 V | 95A (DC) | 1.6 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 125 µA @ 650 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-UFB211FA40MODULE DIODE 400V SOT-227 |
160 | $30.23 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 2 Independent | Standard | 400 V | 120A | 1.59 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 50 µA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|
VS-VSKC56/04DIODE GEN PURP 400V 30A ADDAPAK |
2,908 | $39.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 400 V | 30A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
VS-301CNQ045PBFDIODE MODULE 45V 300A TO244 |
2,372 | $39.01 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 300A | 900 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | - | Chassis Mount |
|
|
VS-VSKD56/04DIODE GEN PURP 400V 30A ADDAPAK |
3,138 | $39.28 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 30A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD91/04DIODE GEN PURP 400V 50A ADDAPAK |
2,572 | $40.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
GSXF100A120S1-D3DIODE FAST REC 1200V 100A SOT227 |
3,446 | $40.87 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 100A | 2.35 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 125 ns | 25 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKJ71/10DIODE GEN PURP 1KV 40A ADDAPAK |
3,517 | $40.88 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1000 V | 40A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1000 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC91/10DIODE GEN PURP 1KV 50A ADDAPAK |
3,244 | $41.74 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1000 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC91/16DIODE GEN PURP 1.6KV 50A ADDAPAK |
3,670 | $43.01 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD91/16DIODE GEN PURP 1.6KV 50A ADDAPAK |
2,616 | $43.29 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

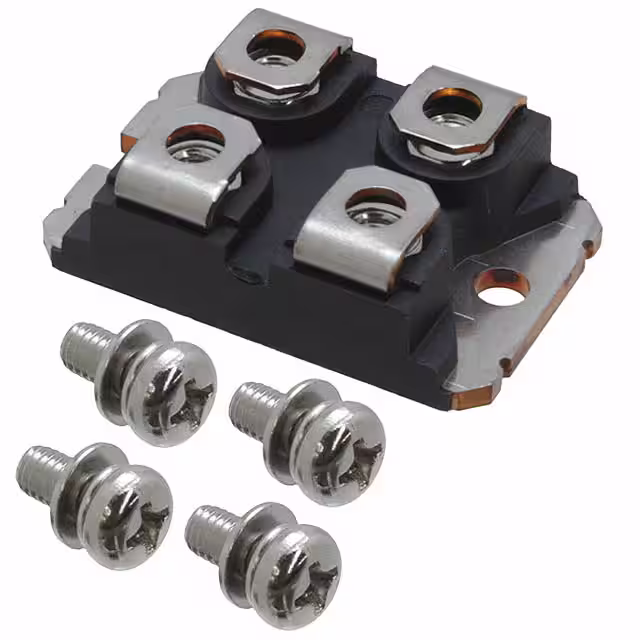

VS-UFB130FA20DIODE MODULE 200V 65A SOT227 |
160 | $37.54 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 200 V | 65A (DC) | 1.13 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 42 ns | 50 µA @ 200 V | - | Chassis Mount |
|
|
VS-VSKCS203/100DIODE SCHOTTKY 100V 100A ADDAPAK |
2,073 | $44.81 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 100 V | 100A | 990 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | -55°C ~ 150°C | Chassis Mount |
|
|
VS-VSKCS209/150DIODE SCHOTTKY 150V 100A ADDAPAK |
2,517 | $45.39 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 150 V | 100A | 1.01 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
|
GSXD160A010S1-D3DIODE SCHOTTKY 100V 160A SOT227 |
2,367 | $46.71 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 100 V | 160A | 840 mV @ 160 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKJ166/08PBFDIODE MOD GP 800V 82.5A INTAPAK |
2,284 | $47.44 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 800 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
GD2X60MPS06N650V 120A SOT-227 SIC SCHOTTKY |
300 | $42.06 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | Active | 2 Independent | Silicon Carbide Schottky | 650 V | 70A (DC) | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 650 V | -55°C ~ 175°C | Chassis Mount |
