| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2950048DIODE MODULE 1.3KV 700MA |
2,116 | $86.54 |
RFQ |
Datasheet |
Bulk | - | Active | 4 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - |
|
2950077DIODE MODULE 1.3KV 700MA |
2,488 | $93.13 |
RFQ |
Datasheet |
Bulk | - | Active | 7 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - |
|
DD340N22SHPSA1MOD DIODE PWRBLOCK PB50SB-1 |
3,024 | $94.72 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 2200 V | 330A | - | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 2200 V | -40°C ~ 135°C | Chassis Mount |
|
MBR400100CTDIODE MODULE 100V 200A 2TOWER |
2,849 | $102.96 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 200A | 840 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
2950103DIODE MODULE 1.3KV 700MA |
3,165 | $132.31 |
RFQ |
Datasheet |
Bulk | - | Active | 8 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail |
|

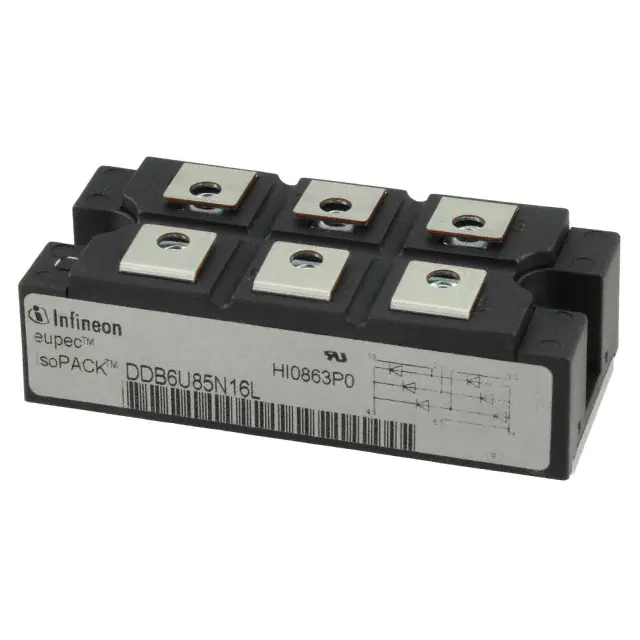

DDB6U85N16LHOSA1DIODE MOD GP 1600V 60A AGISOPACK |
2,750 | $134.82 |
RFQ |
Datasheet |
Tray | - | Active | 3 Independent | Standard | 1600 V | 60A | 1.44 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | 150°C (Max) | Chassis Mount |
|

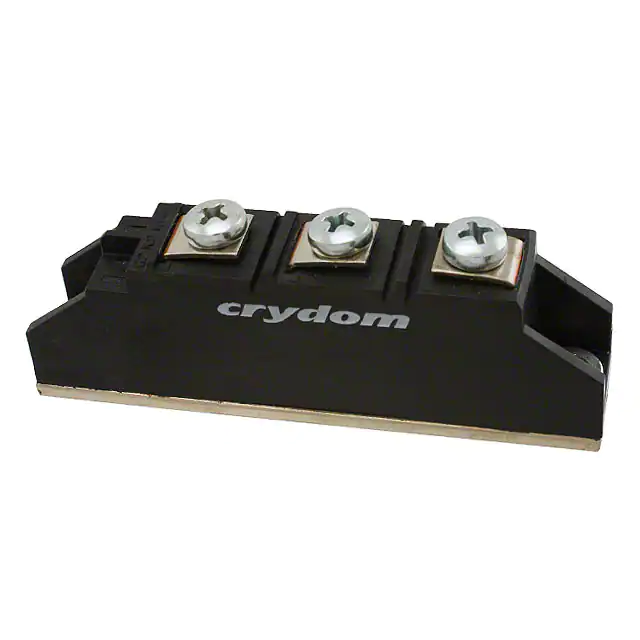

F1892CCD600DIODE MODULE 600V 90A |
2,257 | $135.81 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 600 V | 90A (DC) | 1.4 V @ 270 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|

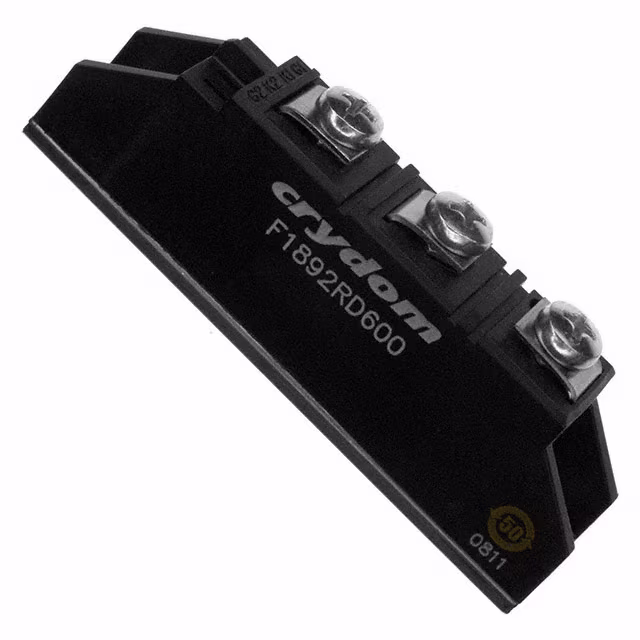

F1892RD600DIODE MODULE 600V 90A |
3,744 | $135.81 |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | 1 Pair Series Connection | Standard | 600 V | 90A (DC) | 1.4 V @ 270 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
2950116DIODE MODULE 1.3KV 700MA |
3,257 | $142.79 |
RFQ |
Datasheet |
Bulk | - | Active | 14 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail |
|
2950129DIODE MODULE 1.3KV 700MA |
3,049 | $142.79 |
RFQ |
Datasheet |
Bulk | - | Active | 14 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail |
|
MDD312-16N1DIODE MODULE 1.6KV 310A Y1-CU |
3,033 | $152.37 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1600 V | - | Chassis Mount |
|
M50100THC1600DIODE MODULE 1.6KV 100A |
2,397 | $158.77 |
RFQ |
Datasheet |
Bulk | - | Active | 3 Common Cathode | Standard | 1600 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|

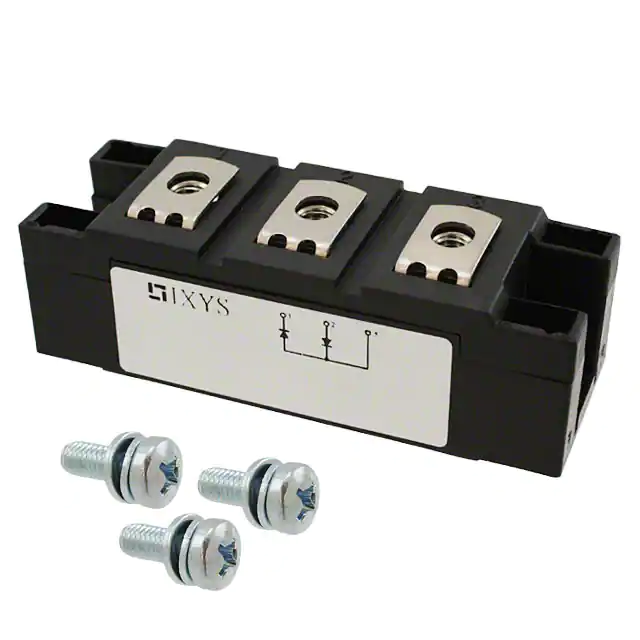

MEK300-06DADIODE MODULE 600V 304A Y4-M6 |
2,883 | $73.75 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Common Cathode | Standard | 600 V | 304A | 1.36 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 12 mA @ 600 V | - | Chassis Mount |
|
2950132DIODE MODULE 1.3KV 700MA |
3,478 | $198.28 |
RFQ |
Datasheet |
Bulk | - | Active | 7 Pair Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail/Channel |
|
LD412660DIODE MODULE DUAL |
3,538 | $263.38 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2600 V | 600A | 1.18 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2600 V | -40°C ~ 150°C | Chassis Mount |
.jpg)
|

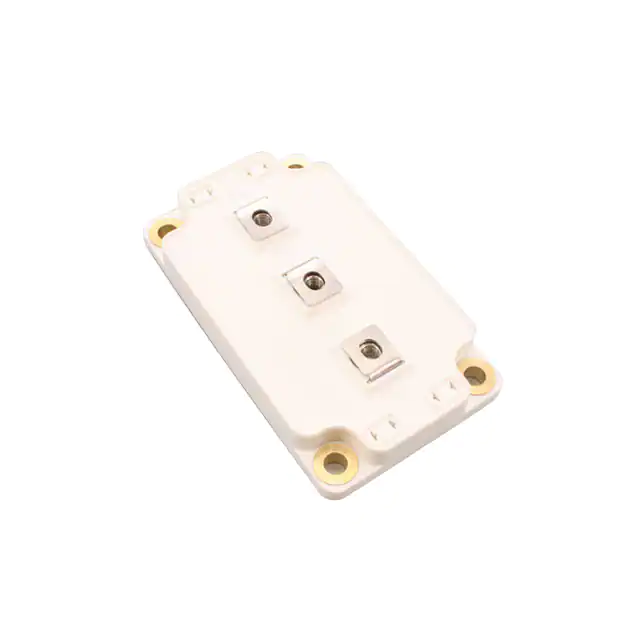

MSCDC300A120AGPM-DIODE-SIC-SBD-SP6C |
3,227 | $404.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1200 V | 300A (DC) | 1.8 V @ 300 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
DD104N16KHPSA1DIODE MODULE GP 1600V 104A |
3,483 | $1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 104A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
.jpg)
|

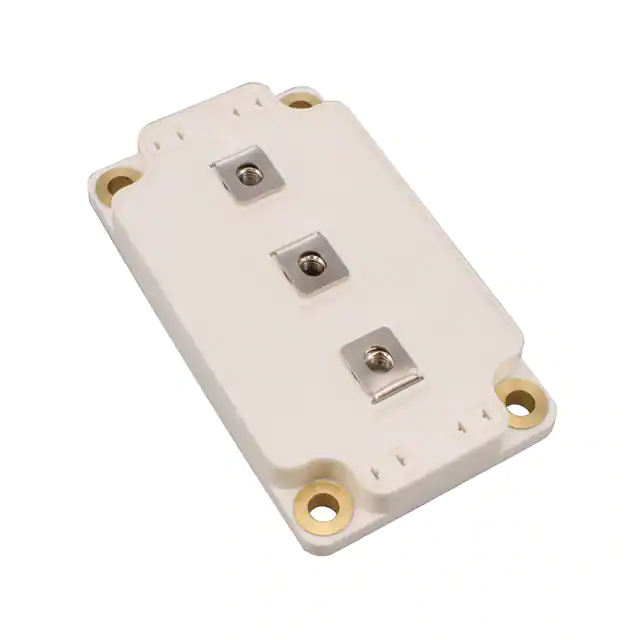

MSCDC300A170AGPM-DIODE-SIC-SBD-SP6C |
3,736 | $740.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1700 V | 300A (DC) | 1.8 V @ 300 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
|
DD171N16KHPSA1DIODE MODULE GP 1600V 171A |
2,231 | $156.89 |
RFQ |
Datasheet |
Tray | DD171N | Active | 1 Pair Common Cathode | Standard | 1600 V | 171A | 1.26 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
.jpg)
|
MSCDC600A170AGPM-DIODE-SIC-SBD-SP6C |
2,241 | $1343.46 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1700 V | 600A (DC) | 1.8 V @ 600 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
