| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH20002TV1DIODE MODULE 200V 120A ISOTOP |
2,487 | $27.97 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 200 V | 120A | 1.05 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 200 V | 150°C (Max) | Chassis Mount |
|
|
STTH200L04TV1DIODE MODULE 400V 120A ISOTOP |
2,658 | $28.08 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 400 V | 120A | 1.2 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 µA @ 400 V | 150°C (Max) | Chassis Mount |
|

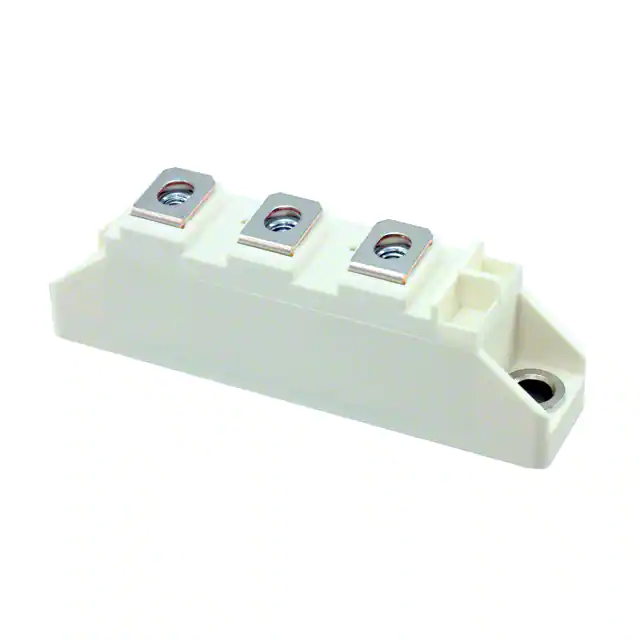

DD100N16SHPSA1DIODE MODULE 1600V 100A |
3,828 | $28.81 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 130A | - | - | - | - | - | Chassis Mount |
|
APT2X100D60JDIODE MODULE 600V 100A ISOTOP |
3,166 | $28.99 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 600 V | 100A | 1.8 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 180 ns | 250 µA @ 600 V | -55°C ~ 175°C | Chassis Mount |
|
|
APT2X101D20JDIODE MODULE 200V 100A ISOTOP |
2,348 | $28.99 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 200 V | 100A | 1.1 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 µA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|
DSEP2X25-12CDIODE MODULE 1.2KV 25A SOT227B |
2,242 | $28.99 |
RFQ |
Datasheet |
Tube | HiPerDynFRED™ | Active | 2 Independent | Standard | 1200 V | 25A | 4.71 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 15 ns | 250 µA @ 1200 V | - | Chassis Mount |
|
|
DSEP2X91-06ADIODE MODULE 600V 90A SOT227B |
2,163 | $29.18 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 600 V | 90A | 2.05 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 mA @ 600 V | - | Chassis Mount |
|
|
STTH200R04TV1DIODE MODULE 400V 100A ISOTOP |
2,092 | $29.30 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 400 V | 100A | 1.35 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 80 µA @ 400 V | -55°C ~ 150°C | Chassis Mount |
|
|
STTH12010TV1DIODE MODULE 1KV 60A ISOTOP |
3,971 | $29.59 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1000 V | 60A | 2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 115 ns | 20 µA @ 1000 V | 150°C (Max) | Chassis Mount |
|
|
STTH200L06TV1DIODE MODULE 600V 120A ISOTOP |
3,577 | $30.09 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 600 V | 120A | 1.55 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 100 µA @ 600 V | 150°C (Max) | Chassis Mount |
|
|
STTH20004TV1DIODE MODULE 400V 120A ISOTOP |
3,974 | $31.33 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 400 V | 120A | 1.2 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 µA @ 400 V | 150°C (Max) | Chassis Mount |
|
|
DSEP2X60-12ADIODE MODULE 1.2KV 60A SOT227B |
3,140 | $31.96 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 1200 V | 60A | 2.42 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 1 mA @ 1200 V | - | Chassis Mount |
|
|
DSEP2X61-12ADIODE MODULE 1.2KV 60A SOT227B |
3,775 | $31.96 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 2 Independent | Standard | 1200 V | 60A | 2.42 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 1 mA @ 1200 V | - | Chassis Mount |
|
|
APT2X60D120JDIODE MODULE 1.2KV 53A ISOTOP |
3,455 | $32.78 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 53A | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 250 µA @ 1200 V | - | Chassis Mount |
|
|
APT2X61D120JDIODE MODULE 1.2KV 53A ISOTOP |
3,953 | $32.78 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 53A | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 250 µA @ 1200 V | - | Chassis Mount |
|
MEE75-12DADIODE MODULE 1.2KV 75A TO240AA |
3,398 | $33.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 75A | 2.17 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 1200 V | - | Chassis Mount |
|
|
MEK75-12DADIODE MODULE 1.2KV 75A TO240AA |
3,133 | $33.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 75A | 2.17 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 1200 V | - | Chassis Mount |
|

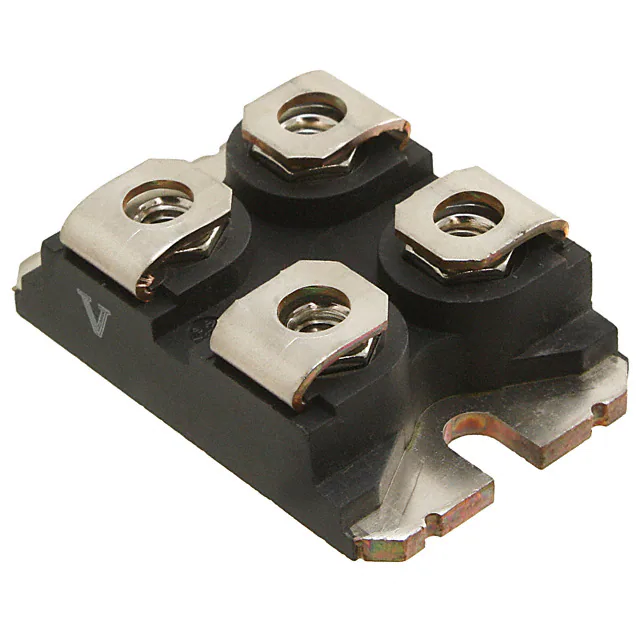

VS-UFB80FA20DIODE MODULE 200V 40A SOT227 |
130 | $20.73 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Standard | 200 V | 40A (DC) | 1.08 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 34 ns | 50 µA @ 200 V | - | Chassis Mount |
|
|
DH2X60-18ADIODE MODULE 1.8KV 60A SOT227B |
3,472 | $36.13 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1800 V | 60A | 2.01 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 200 µA @ 1800 V | - | Chassis Mount |
|
|
MDMA110P1600TGDIODE MODULE 1.6KV 110A TO240AA |
2,270 | $37.28 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 110A | 1.18 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 1600 V | - | Chassis Mount |
