| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDA72-16N1BDIODE MODULE 1.6KV 113A TO240AA |
3,959 | $38.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 113A | 1.6 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1600 V | - | Chassis Mount |
|
|
MDMA140P1600TGDIODE MODULE 1.6KV 140A TO240AA |
3,381 | $38.97 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 140A | 1.18 V @ 140 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 1600 V | - | Chassis Mount |
|
VS-VSKC91/12DIODE GEN PURP 1.2KV 50A ADDAPAK |
3,028 | $42.16 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|

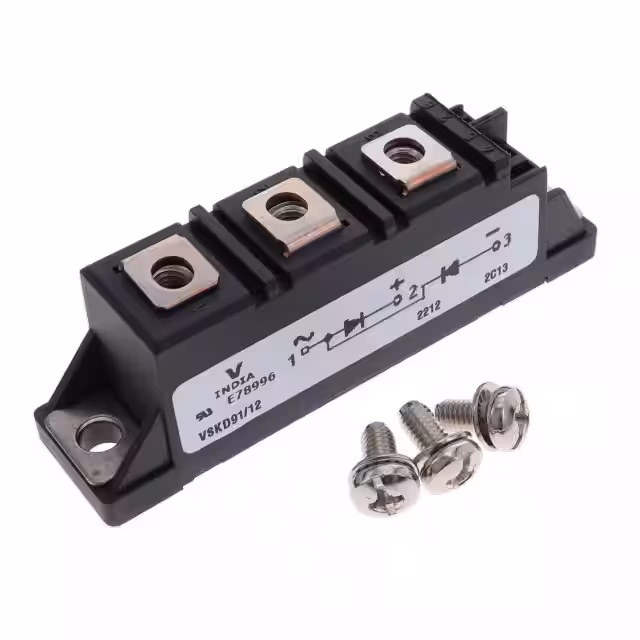

VS-VSKD91/12DIODE GEN PURP 1.2KV 50A ADDAPAK |
2,996 | $42.44 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
MD36K16D1-BPDIODE RECT 1600V 36A D1 PACK |
3,895 | $24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 36A | 1.4 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
MSC2X31SDA120JSIC SBD 1200 V 30 A DUAL PARALLE |
2,225 | $48.03 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | |
|
DPF240X400NADIODE MODULE 400V 120A SOT227B |
2,487 | $27.79 |
RFQ |
Datasheet |
Tube | HiPerFRED²™ | Active | 2 Independent | Standard | 400 V | 120A | 1.25 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 5 µA @ 400 V | - | Chassis Mount |
|
160CMQ045DIODE SCHOTTKY 45V 80A TO249AA |
2,748 | $51.21 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 80A | 860 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|
|
163CMQ080DIODE SCHOTTKY 80V 80A TO249AA |
2,283 | $51.39 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 80A | 1.17 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
|
DSEC240-06ADIODE MODULE 600V 120A SOT227B |
3,169 | $53.22 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 600 V | 120A | 1.91 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 2 mA @ 600 V | - | Chassis Mount |
|
MDD142-16N1DIODE MODULE 1.6KV 165A Y4-M6 |
2,996 | $53.39 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 165A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | Chassis Mount |
|
MBR2X080A045DIODE SCHOTTKY 45V 80A SOT227 |
2,421 | $53.85 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Schottky | 45 V | 80A | 700 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | Chassis Mount |
|
VS-HFA320NJ40CPBFDIODE MODULE 400V 320A TO244 |
3,474 | $56.83 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 420A | 1.54 V @ 320 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 3 mA @ 400 V | - | Chassis Mount |
|
MDD172-18N1DIODE MODULE 1.8KV 190A Y4-M6 |
2,382 | $58.98 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 190A | 1.15 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | - | Chassis Mount |
|
M5060THC600DIODE MODULE 600V 60A |
3,486 | $63.90 |
RFQ |
Datasheet |
Bulk | - | Active | 3 Common Cathode | Standard | 600 V | 60A | 1.35 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
VS-VSKD166/16PBFDIODE GEN 1.6KV 82.5A INTAPAK |
2,285 | $67.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1400 V | -40°C ~ 150°C | Chassis Mount |
|

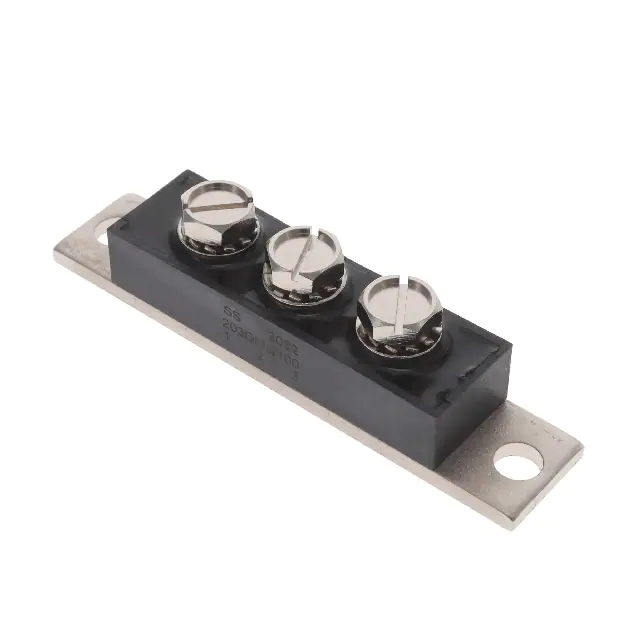

203DMQ100200A, 100V, PRM4-ISO, POWER MODU |
3,007 | $67.66 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Series Connection | Schottky | 100 V | 100A | 860 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
|
MSC2X101SDA070JSIC SBD 700 V 100 A DUAL ISOTOP |
2,968 | $73.76 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 700 V | 100A (DC) | 1.8 V @ 100 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 700 V | -55°C ~ 175°C | Chassis Mount |
|

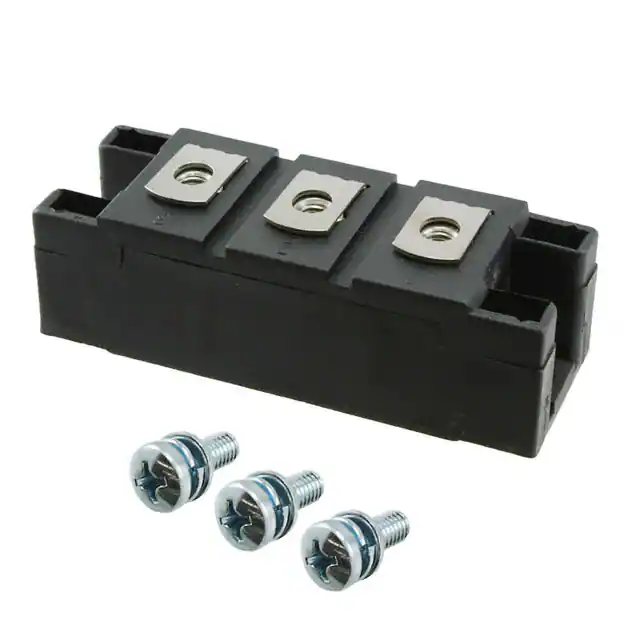

MEK250-12DADIODE MODULE 1.2KV 260A Y4-M6 |
3,986 | $77.25 |
RFQ |
Datasheet |
Bulk | FRED | Active | 1 Pair Common Cathode | Standard | 1200 V | 260A | 1.8 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 12 mA @ 1200 V | - | Chassis Mount |
|
DD180N16SHPSA1DIODE MODULE GP 1600V 192A |
2,233 | $49.53 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 192A | 1.39 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 1600 V | -40°C ~ 125°C | Chassis Mount |
