| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT75GT120JRDQ3IGBT MOD 1200V 97A 480W ISOTOP |
2,131 | $46.61 |
RFQ |
Datasheet |
Tube | Thunderbolt IGBT® | Active | NPT | Single | 1200 V | 97 A | 480 W | 3.7V @ 15V, 75A | 200 µA | 5.1 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
MUBW15-12A6KIGBT MODULE 1200V 19A 90W E1 |
2,431 | $46.77 |
RFQ |
Datasheet |
Box | - | Active | NPT | Three Phase Inverter with Brake | 1200 V | 19 A | 90 W | 3.4V @ 15V, 15A | 600 µA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
A1P25S12M3-FIGBT MOD 1200V 25A 197W ACEPACK1 |
3,764 | $50.28 |
RFQ |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
A1P50S65M2IGBT MOD 650V 50A 208W ACEPACK1 |
3,527 | $50.28 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
A1P35S12M3IGBT MOD 1200V 35A 250W ACEPACK1 |
2,342 | $56.25 |
RFQ |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
FS50R12W2T7B11BOMA1IGBT MOD 1200V 50A |
3,127 | $60.80 |
RFQ |
Datasheet |
Bulk,Tray | EasyPACK™ | Active | Trench Field Stop | Full Bridge | 1200 V | 50 A | 20 mW | 1.5V @ 15V, 50A (Typ) | 7.9 µA | 11.1 nF @ 25 V | Standard | No | -40°C ~ 175°C | Chassis Mount |
|

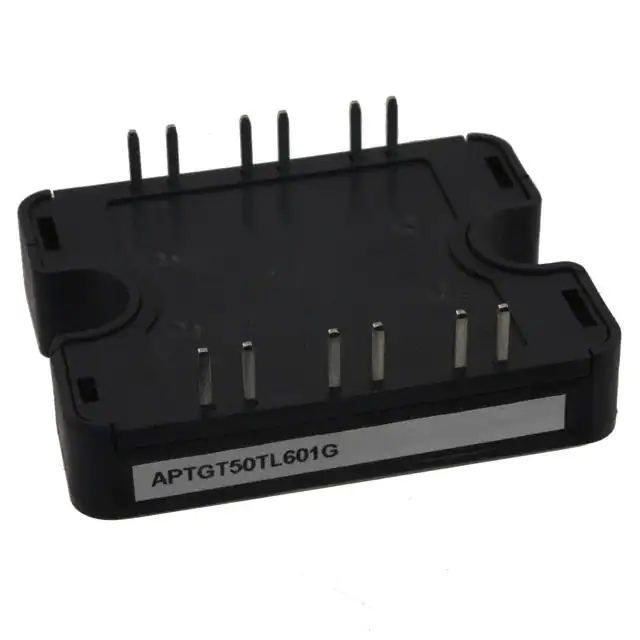

APTGT50TL601GIGBT MODULE 600V 80A 176W SP1 |
2,699 | $66.47 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Three Level Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
A2C50S65M2IGBT MOD 650V 50A 208W ACEPACK2 |
2,612 | $69.88 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter with Brake | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

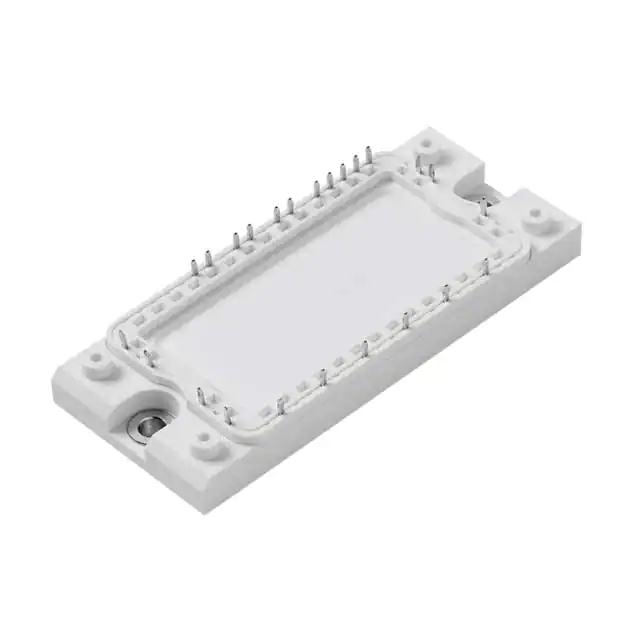

MIXA40WB1200TEDIGBT MODULE 1200V 60A 195W E2 |
3,678 | $79.92 |
RFQ |
Datasheet |
Box | - | Active | PT | Three Phase Inverter with Brake | 1200 V | 60 A | 195 W | 2.1V @ 15V, 35A | 2.1 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MWI15-12A7IGBT MODULE 1200V 30A 140W E2 |
3,242 | $82.46 |
RFQ |
Datasheet |
Box | - | Active | NPT | Three Phase Inverter | 1200 V | 30 A | 140 W | 2.6V @ 15V, 15A | 900 µA | 1 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
A2P75S12M3IGBT MOD 1200V 75A ACEPACK2 |
2,556 | $86.82 |
RFQ |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 454.5 W | 2.3V @ 15V, 75A | 100 µA | 4.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|

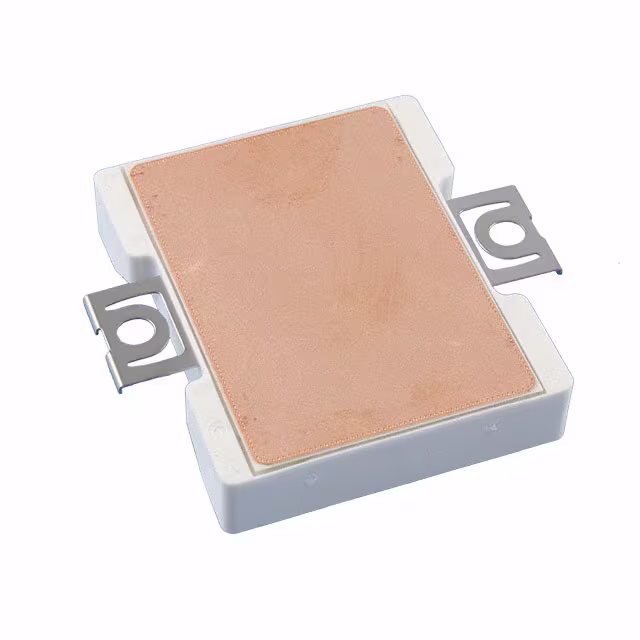

FS100R12W2T7B11BOMA1IGBT MOD 1200V 100A 20MW EASY |
3,744 | $89.02 |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Single | 1200 V | 100 A | 20 mW | 1.50V @ 15V, 100A | 9 µA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount |
|

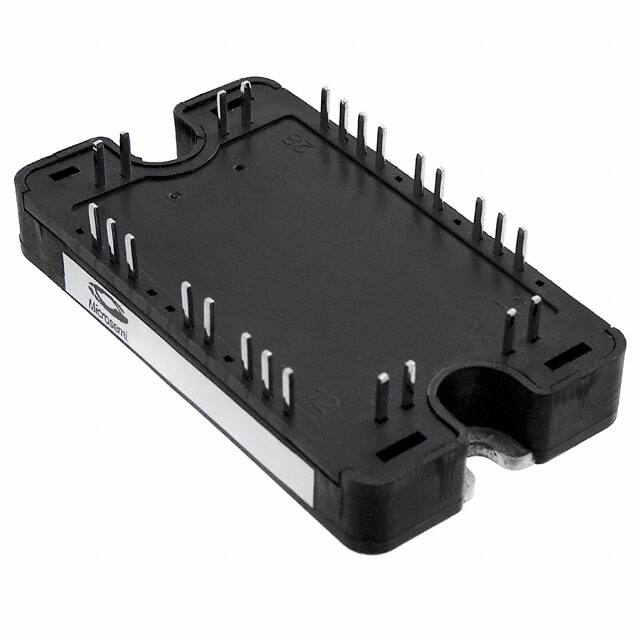

APTGT100H60T3GIGBT MODULE 600V 150A 340W SP3 |
3,052 | $103.71 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FF150R17KE4HOSA1MODULE IGBT 1700V AG-62MM-1 |
2,026 | $146.70 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 1700 V | 150 A | - | 2.3V @ 15V, 150A | 1 mA | 12 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FP10R06W1E3BOMA1IGBT MODULE 600V 16A 68W |
2,532 | $37.00 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 600 V | 16 A | 68 W | 2V @ 15V, 10A | 1 mA | 550 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FP50R12KE3BOSA1IGBT MOD 1200V 75A 280W |
2,977 | $1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | NPT | Single | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
FS75R12KE3GBOSA1IGBT MOD 1200V 100A 355W |
3,466 | $162.42 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | - | Three Phase Inverter | 1200 V | 100 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
|
FP15R12W1T4B3BOMA1IGBT MOD 1200V 28A 130W |
2,808 | $41.29 |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 28 A | 130 W | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|

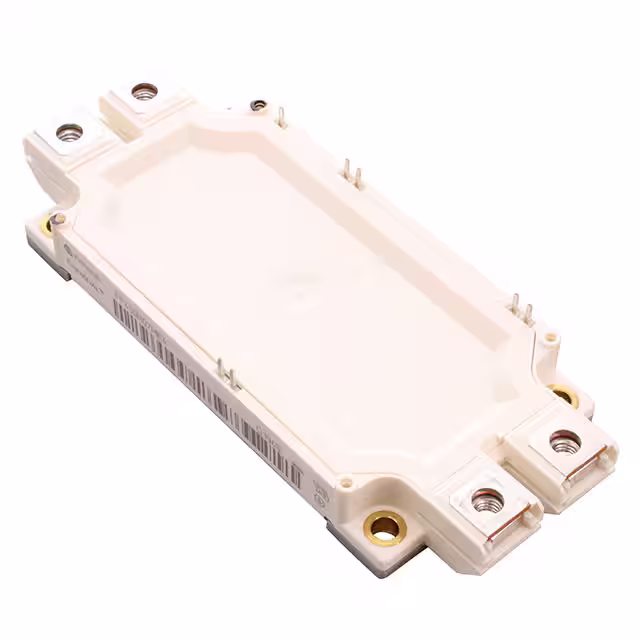

FF450R07ME4BOSA1GBT MODULE 650V 450A |
3,106 | $181.54 |
RFQ |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 450 A | 20 mW | 1.95V @ 15V, 450A | 1 mA | 27.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
FZ400R17KE3HOSA1IGBT MOD 1700V 620A 2250W |
3,109 | $186.34 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Single | 1700 V | 620 A | 2250 W | 2.45V @ 15V, 400A | 3 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
