| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

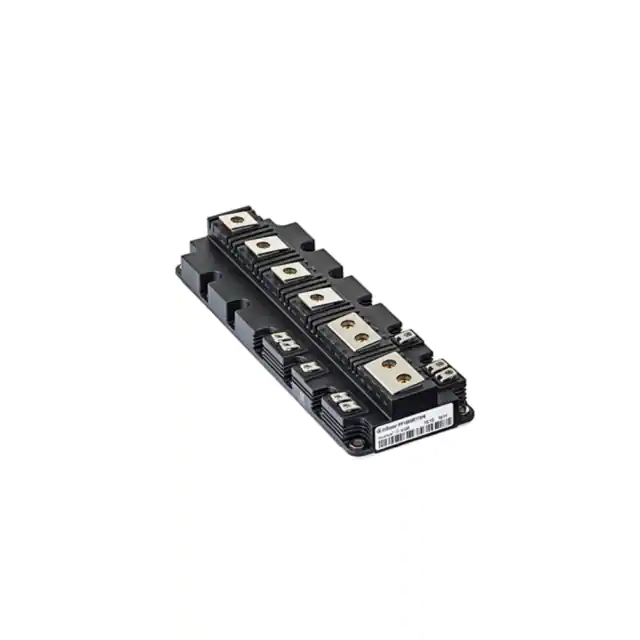

FF1800R12IE5BPSA1IGBT MOD 1200V 1800A 20MW |
3,415 | $1325.45 |
RFQ |
Datasheet |
Bulk,Tray | PrimePACK™3+ | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | 20 mW | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FF1800R17IP5BPSA1IGBT MODULE 1200V 300A |
2,494 | $1827.33 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 300 A | - | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
FF300R12KE3HOSA1IGBT MOD 1200V 440A 1450W |
3,604 | $186.34 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 1200 V | 440 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
FF300R12KT3HOSA1IGBT MOD 1200V 480A 1450W |
240 | $186.34 |
RFQ |
Datasheet |
Bulk,Tray | C | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 480 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
FZ1200R45KL3B5NOSA1IGBT MODULE 4500V 1200A |
2,539 | $2836.47 |
RFQ |
Datasheet |
Tray | - | Active | - | Single | 4500 V | 1200 A | 13500 W | 2.85V @ 15V, 1200A | 5 mA | 280 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount |
|
FS100R12KT3BOSA1IGBT MOD 1200V 140A 480W |
3,883 | $220.15 |
RFQ |
Datasheet |
Tray | EconoPIM™ 3 | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 140 A | 480 W | 2.15V @ 15V, 100A | 5 mA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
FZ900R12KE4HOSA1IGBT MOD 1200V 900A 4300W |
2,389 | $221.99 |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Single | 1200 V | 900 A | 4300 W | 2.1V @ 15V, 900A | 5 mA | 56 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FF300R17KE4HOSA1IGBT MOD 1700V 440A 1800W |
3,799 | $1.00 |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | 2 Independent | 1700 V | 440 A | 1800 W | 2.3V @ 15V, 300A | 1 mA | 24.5 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
FS200R06KE3BOSA1IGBT MOD 600V 200A 600W |
3,346 | $226.20 |
RFQ |
Datasheet |
Tray | EconoPACK™ 3 | Active | Trench Field Stop | Three Phase Inverter | 600 V | 200 A | 600 W | 1.9V @ 15V, 200A | 1 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FS150R12KT4B11BOSA1IGBT MOD 1200V 150A 750W |
3,334 | $251.30 |
RFQ |
Datasheet |
Bulk,Tray | EconoPACK™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | 750 W | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FS150R12KT3BOSA1IGBT MOD 1200V 200A 700W |
2,299 | $275.92 |
RFQ |
Datasheet |
Tray | EconoPACK™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 700 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
|
FS200R12PT4BOSA1IGBT MOD 1200V 280A 1000W |
2,629 | $291.71 |
RFQ |
Datasheet |
Tray | EconoPACK™ 4 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 280 A | 1000 W | 2.15V @ 15V, 200A | 1 mA | 14 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FF450R17ME4BOSA1IGBT MOD 1700V 600A 2500W |
3,144 | $319.58 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 1700 V | 600 A | 2500 W | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|

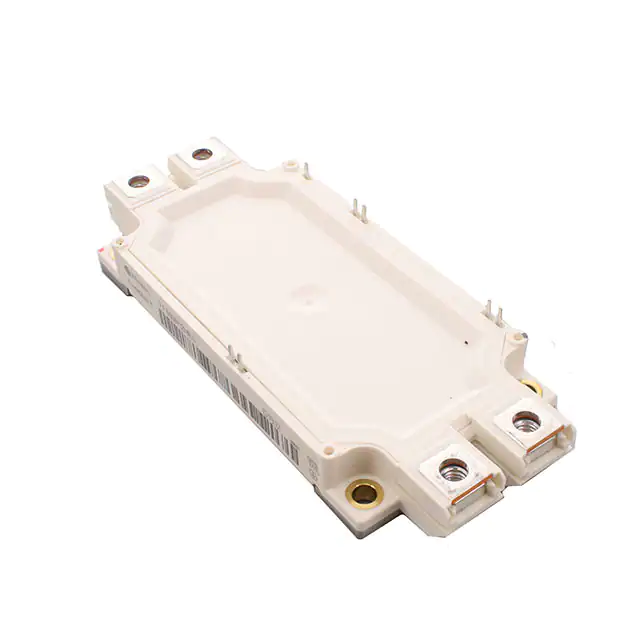

FF600R12ME4BOSA1IGBT MODULE 1200V 4050W |
3,834 | $324.64 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | - | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FF650R17IE4BOSA1IGBT MODULE 1700V 4150W |
3,119 | $612.40 |
RFQ |
Datasheet |
Tray | PrimePACK™2 | Active | - | 2 Independent | 1700 V | - | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FF1000R17IE4BOSA1IGBT MODULE 1700V 6250W |
3,739 | $867.59 |
RFQ |
Datasheet |
Tray | PrimePACK™3 | Active | - | 2 Independent | 1700 V | - | 6250 W | 2.45V @ 15V, 1000A | 5 mA | 81 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FF1400R12IP4BOSA1IGBT MODULE 1200V 1400A |
3,192 | $930.87 |
RFQ |
Datasheet |
Tray | PrimePACK™3 | Active | Trench Field Stop | 2 Independent | 1200 V | 1400 A | 765000 W | 2.05V @ 15V, 1400A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
FF1400R17IP4BOSA1IGBT MODULE 1700V 1400A |
2,741 | $1111.11 |
RFQ |
Datasheet |
Tray | PrimePACK™3 | Active | Trench Field Stop | 2 Independent | 1700 V | 1400 A | 955000 W | 2.2V @ 15V, 1400A | 5 mA | 110 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
IXA70I1200NAIGBT MOD 1200V 100A 350W SOT227B |
3,318 | $32.98 |
RFQ |
Datasheet |
Tube | - | Active | PT | Single | 1200 V | 100 A | 350 W | 2.1V @ 15V, 50A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis, Stud Mount |
|
FP15R12W1T7B3BOMA1IGBT MODULE LOW POWER EASY |
2,373 | $44.32 |
RFQ |
Tray | TrenchStop™ | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | - | - | - | - | - | Standard | No | 175°C (TJ) | Chassis Mount |
