| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSXF060A060S1-D3DIODE FAST REC 600V 60A SOT22 |
3,901 | $31.88 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 600 V | 60A | 1.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 600 V | -55°C ~ 175°C | Chassis Mount |
|
|
GSXD050A006S1-D3DIODE SCHOTTKY 60V 50A SOT227 |
3,882 | $31.88 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 60 V | 50A | 750 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -40°C ~ 150°C | Chassis Mount |
|
|
GSXD050A008S1-D3DIODE SCHOTTKY 80V 50A SOT227 |
3,706 | $31.88 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 80 V | 50A | 840 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 80 V | -40°C ~ 150°C | Chassis Mount |
|
|
GSXD050A010S1-D3DIODE SCHOTTKY 100V 50A SOT227 |
2,884 | $31.88 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 100 V | 50A | 840 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | Chassis Mount |
|
|
GSXD050A018S1-D3DIODE SCHOTTKY 180V 50A SOT227 |
3,302 | $31.88 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 180 V | 50A | 920 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 180 V | -40°C ~ 150°C | Chassis Mount |
|
|
GSXD050A020S1-D3DIODE SCHOTTKY 200V 50A SOT227 |
3,858 | $31.88 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 200 V | 50A | 920 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | -40°C ~ 150°C | Chassis Mount |
|
|
GSXF060A040S1-D3DIODE FAST REC 400V 60A SOT227 |
3,383 | $31.88 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 400 V | 60A | 1.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|

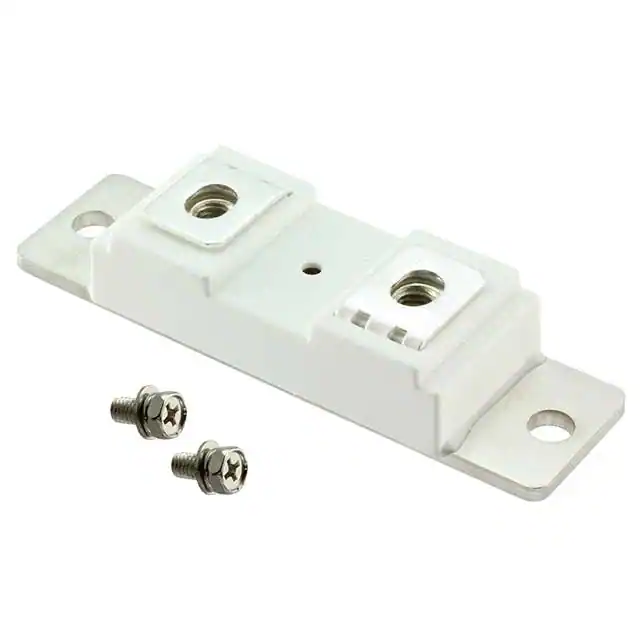

MF300K06F3-BPDIODE MODULE GP 600V 150A F3 |
3,341 | $31.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 600 V | 150A | 1.4 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 1 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
MDD72-14N1BDIODE MODULE 1.4KV 113A TO240AA |
2,555 | $32.04 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 113A | 1.6 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1400 V | - | Chassis Mount |
|
|
MF400K04F3-BPDIODE MODULE GP 400V 200A F3 |
2,752 | $32.07 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 400 V | 200A | 1.35 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 135 ns | 1 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
MF200K06F3-BPDIODE MODULE GP 600V 100A F3 |
2,096 | $32.32 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 600 V | 100A | 1.15 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 105 ns | 500 µA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
MF300K04F3-BPDIODE MODULE GP 400V 150A F3 |
2,223 | $32.32 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 400 V | 150A | 1.05 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 500 µA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
APT2X100DQ120JDIODE MODULE 1.2KV 100A ISOTOP |
2,829 | $32.69 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 100A | 3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 385 ns | 100 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
GSXD050A004S1-D3DIODE SCHOTTKY 45V 50A SOT227 |
3,474 | $32.71 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 45 V | 50A | 700 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | Chassis Mount |
|
|
MEA75-12DADIODE MODULE 1.2KV 75A TO240AA |
2,885 | $33.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1200 V | 75A | 2.17 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 1200 V | - | Chassis Mount |
|
JANTX1N4148UBCADIODE GEN PURP 75V 200MA SMD |
2,001 | $33.23 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Common Anode | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | -65°C ~ 200°C | Surface Mount | |
|
|
JANTX1N4148UBCCDIODE GEN PURP 75V 200MA SMD |
3,352 | $33.23 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Common Cathode | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 75 V | -65°C ~ 200°C | Surface Mount | |
|
|
JANTX1N4148UBCD/TRSIGNAL OR COMPUTER DIODE |
2,758 | $33.23 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/116 | Active | 1 Pair Series Connection | Standard | 75 V | 1A | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 25 nA @ 20 V | -65°C ~ 200°C | Surface Mount | |
|
|
JANTX1N4148UBCCC/TRSIGNAL OR COMPUTER DIODE |
3,734 | $33.23 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/116 | Active | 1 Pair Common Cathode | Standard | 75 V | 1A | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 25 nA @ 20 V | -65°C ~ 200°C | Surface Mount | |
|
|
JANTX1N4148UBCDSIGNAL OR COMPUTER DIODE |
2,395 | $33.23 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Series Connection | Standard | 75 V | 1A | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 25 nA @ 20 V | -65°C ~ 200°C | Surface Mount |
