| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDMA85P1200TGDIODE MODULE 1.2KV 85A TO240AA |
2,278 | $26.50 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 85A | 1.17 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 1200 V | - | Chassis Mount |
|
|
MDMA65P1600TGDIODE MODULE 1.6KV 65A TO240AA |
2,776 | $26.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 65A | 1.18 V @ 65 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 1600 V | - | Chassis Mount |
|
MD120A16D1-BPDIODE RECT 1600V 120A D1 PAC |
3,047 | $27.26 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 120A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD36A16D1-BPDIODE RECT 1600V 36A D1 PACK |
2,905 | $24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 36A | 1.4 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD60A16D1-BPDIODE RECT 1600V 60A D1 PACK |
3,385 | $24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 60A | 1.45 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD60C16D1-BPDIODE RECT 1600V 60A D1 PACK |
2,212 | $24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 60A | 1.45 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD70C16D1-BPDIODE RECT 1600V 70A D1 PACK |
2,902 | $24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 70A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MD70K16D1-BPDIODE RECT 1600V 70A D1 PACK |
3,873 | $24.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 70A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
APT2X61DQ100JDIODE MODULE 1KV 60A ISOTOP |
2,662 | $24.75 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1000 V | 60A | 2.8 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 235 ns | 100 µA @ 1000 V | - | Chassis Mount |
|
GSXF030A040S1-D3DIODE FAST REC 400V 30A SOT227 |
3,689 | $24.96 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 400 V | 30A | 1.3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|
|
APT2X30D100JDIODE MODULE 1KV 28A ISOTOP |
2,461 | $24.96 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1000 V | 28A | 2.3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | -55°C ~ 175°C | Chassis Mount |
|
DMA200XA1600NAPWRDIODEDISC-RECTIFIER SOT-227B( |
3,238 | $25.01 |
RFQ |
Datasheet |
Tube | DMA200XA1600NA | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | 1.24 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

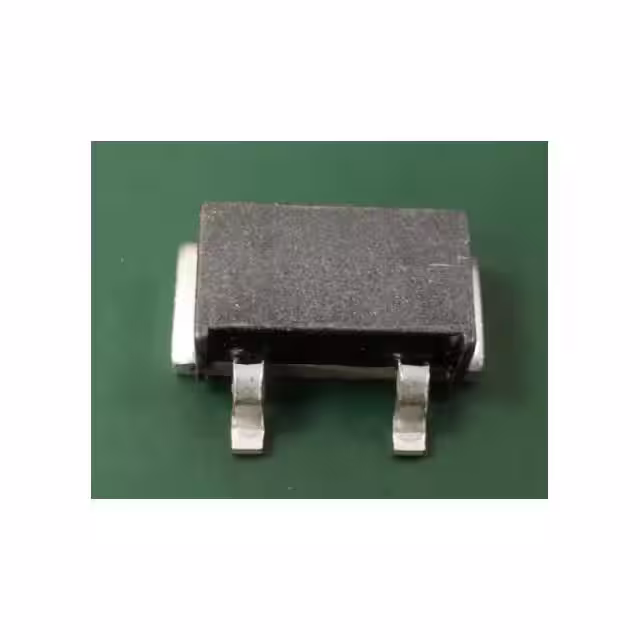

113CNQ100SLPIV 100V, IO 110A, VF 0.81V PACK |
2,808 | $25.05 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 55A | 810 mV @ 55 A | Small Signal =< 200mA (Io), Any Speed | - | 1 mA @ 100 V | -55°C ~ 175°C | Surface Mount |
|
|
JAN1N4148UBCADIODE GEN PURP 75V 200MA SMD |
2,323 | $25.35 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Common Anode | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | -65°C ~ 200°C | Surface Mount | |
|
|
JAN1N4148UBCCDIODE GEN PURP 75V 200MA SMD |
3,193 | $25.35 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Common Cathode | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | -65°C ~ 200°C | Surface Mount | |
|
|
JAN1N4148UBDDIODE GEN PURP 75V 200MA SMD |
2,996 | $25.35 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Series Connection | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | -65°C ~ 200°C | Surface Mount | |
|
|
JAN1N4148UBCD/TRSIGNAL OR COMPUTER DIODE |
3,401 | $25.35 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/116 | Active | 1 Pair Series Connection | Standard | 75 V | 1A | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 25 nA @ 20 V | -65°C ~ 200°C | Surface Mount | |
|
|
JAN1N4148UBCCC/TRSIGNAL OR COMPUTER DIODE |
2,016 | $25.35 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/116 | Active | 1 Pair Common Cathode | Standard | 75 V | 1A | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 25 nA @ 20 V | -65°C ~ 200°C | Surface Mount | |
|
|
JAN1N4148UBCDSIGNAL OR COMPUTER DIODE |
3,876 | $25.35 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Series Connection | Standard | 75 V | 1A | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 25 nA @ 20 V | -65°C ~ 200°C | Surface Mount | |
|
|
JAN1N4148UBCCCSIGNAL OR COMPUTER DIODE |
3,332 | $25.35 |
RFQ |
Bulk | Military, MIL-PRF-19500/116 | Active | 1 Pair Common Cathode | Standard | 75 V | 1A | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 25 nA @ 20 V | -65°C ~ 200°C | Surface Mount |
