| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-VS5HD480CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,061 | $39.67 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 448A (DC) | 1.7 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 61 ns | 1 mA @ 600 V | -40°C ~ 175°C | Chassis Mount |
|
|
VS-VS5HD600CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,418 | $41.04 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 505A (DC) | 1.7 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | 78 ns | 1 mA @ 600 V | -40°C ~ 175°C | Chassis Mount |
;;.jpg)
|
403DMQ100DIODE SCHOTTKY 100V 400A PRM4-IS |
2,475 | $41.08 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Series Connection | Schottky | 100 V | 200A | 830 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|

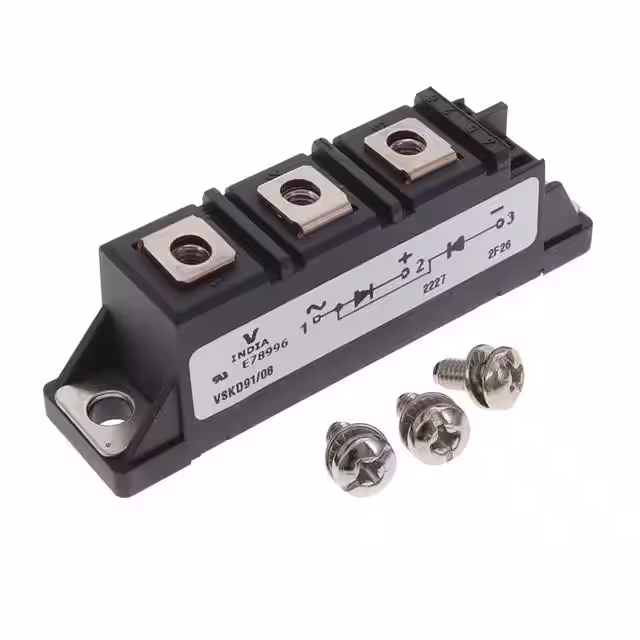

VS-VSKD91/08DIODE GEN PURP 800V 50A ADDAPAK |
2,828 | $41.60 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 800 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
MDD95-22N1BDIODE MODULE 2.2KV 120A TO240AA |
3,047 | $45.21 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 2200 V | - | Chassis Mount |
|

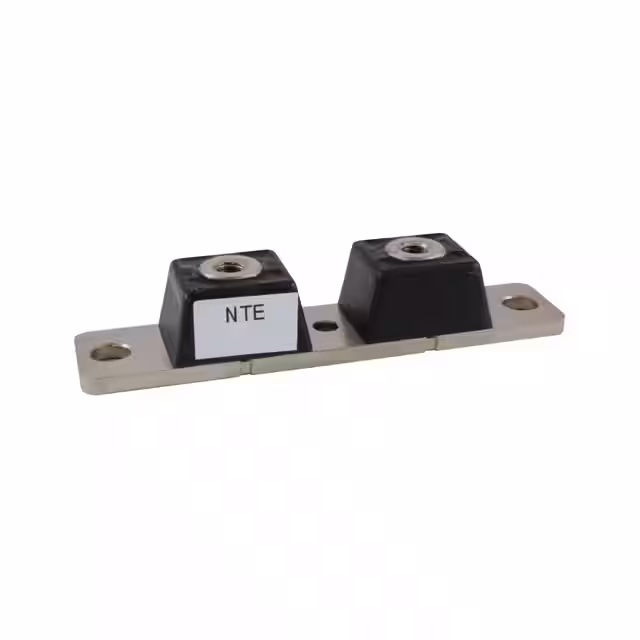

NTE6218RECTIFIER MOD 600V 200A |
3,335 | $45.82 |
RFQ |
Datasheet |
Bag | - | Active | 1 Pair Common Cathode | Standard | - | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 5 µA @ 400 V | -55°C ~ 150°C | Chassis Mount |
|
GHXS100B065S-D3SIC SBD PARALLEL POWER MODULE 65 |
3,161 | $47.91 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 650 V | 193A (DC) | 1.65 V @ 100 A | No Recovery Time > 500mA (Io) | 0 ns | 250 µA @ 650 V | -55°C ~ 175°C | Chassis Mount |
|

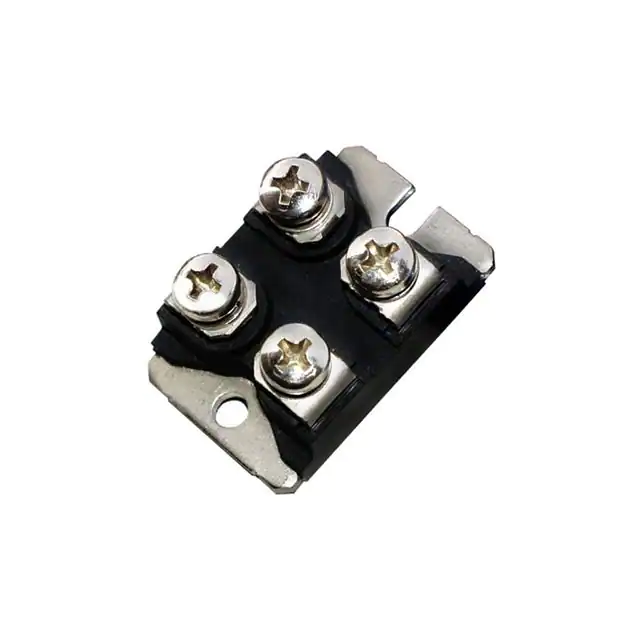

STPS240H100TV1YAUTOMOTIVE 100 V, 2X120A, POWER |
2,979 | $28.93 |
RFQ |
Tube | Automotive, AEC-Q101 | Active | 2 Independent | Schottky | 100 V | 120A | 825 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 90 µA @ 100 V | -40°C ~ 175°C | Chassis Mount | |
|
MDD172-08N1DIODE MODULE 800V 190A Y4-M6 |
2,158 | $53.31 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 190A | 1.15 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | - | Chassis Mount |
|
|
209CMQ150DIODE SCHOTTKY 150V 100A PRM4 |
3,168 | $64.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 100A | 1.03 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -55°C ~ 175°C | Chassis Mount |
|
|
220CMQ030DIODE SCHOTTKY 30V 110A PRM4 |
3,048 | $64.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 110A | 480 mV @ 110 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 30 V | -55°C ~ 150°C | Chassis Mount |
|

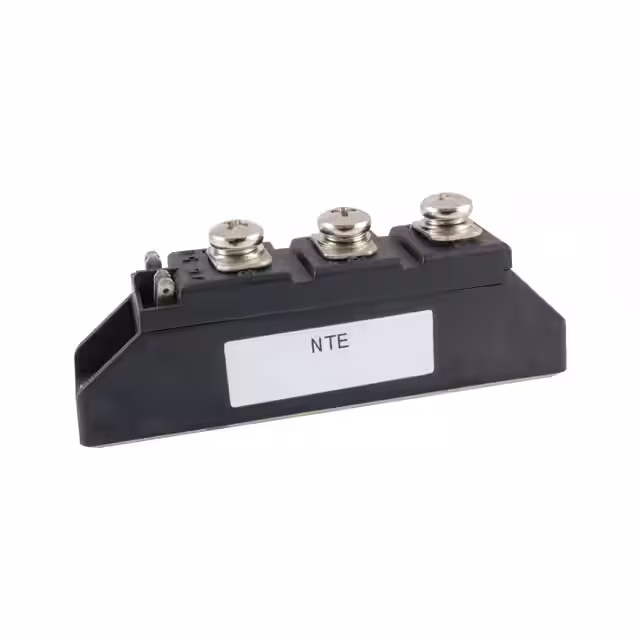

NTE6220RECT-MODULE 1200V 60AMPS |
2,207 | $70.07 |
RFQ |
Datasheet |
Bag | - | Active | 1 Pair Series Connection | Standard | - | 55A | 1.45 V @ 170 A | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 1200 V | - | Chassis Mount |
|
LSIC2SD120N80PASIC SCHOTTKY DIODE 1200V 2X40A |
3,168 | $81.00 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 75A (DC) | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
MDD312-12N1DIODE MODULE 1.2KV 310A Y1-CU |
2,423 | $139.14 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1200 V | - | Chassis Mount |
|
|
MDD312-18N1DIODE MODULE 1.8KV 310A Y1-CU |
3,785 | $152.57 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1800 V | - | Chassis Mount |
|
|
MDD255-20N1DIODE MODULE 2KV 270A Y1-CU |
3,560 | $157.40 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 2000 V | - | Chassis Mount |
|

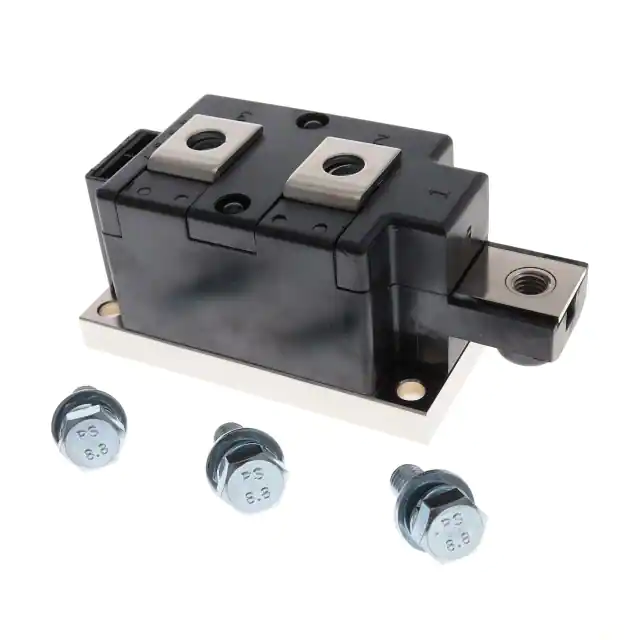

MDD255-22N1DIODE MODULE 2.2KV 270A Y1-CU |
2,444 | $169.51 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 2200 V | - | Chassis Mount |
|

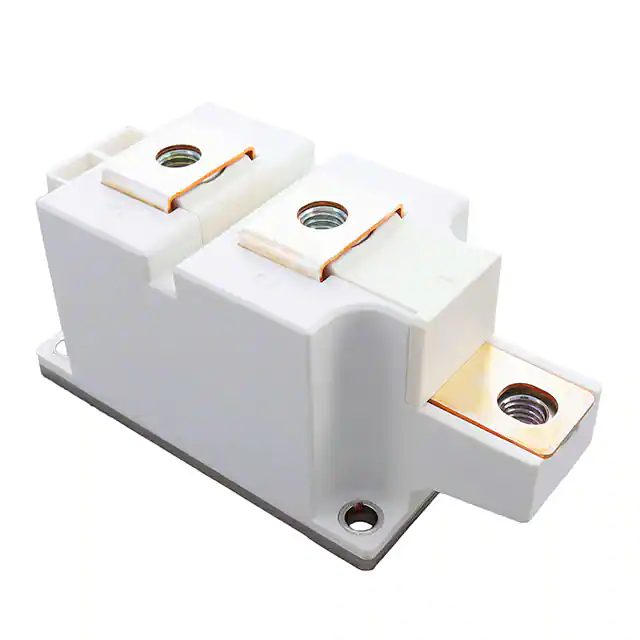

DD340N22STIMHPSA1LT-BOND MODULE BG-PB50SB-1 |
3,676 | $101.69 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 2200 V | 330A | 1.31 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 2200 V | 130°C | Chassis Mount |
|

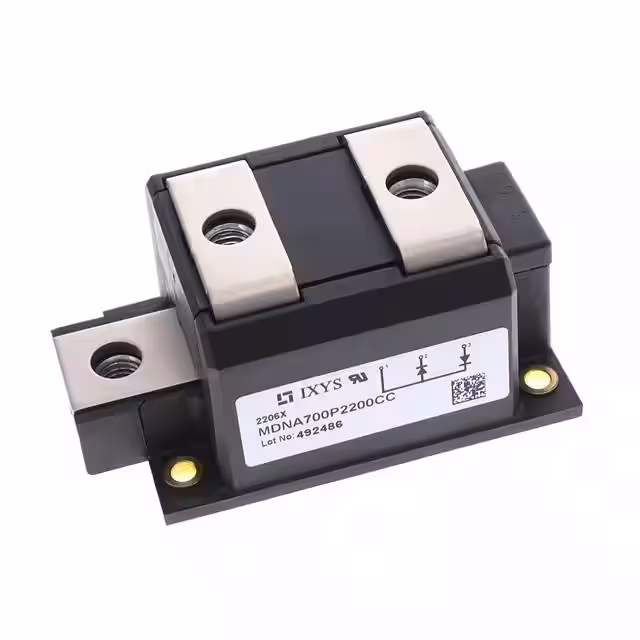

MDNA700P2200CCCOMPACK |
3,541 | $248.89 |
RFQ |
Box | - | Active | 1 Pair Series Connection | Standard | 2200 V | 700A | 1.14 V @ 700 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 2200 V | -40°C ~ 150°C | Chassis Mount | |
|
|
DD390N22STIMHPSA1LT-BOND MODULE BG-PB50SB-1 |
2,374 | $111.55 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 2200 V | 390A | 1.34 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 2200 V | 150°C | Chassis Mount |
