| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RURH3015CCRECTIFIER DIODE |
350 | $3.06 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Avalanche | 150 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
NTE6200R-200V 30AMP CATH CASE |
3,545 | $9.07 |
RFQ |
Datasheet |
Bag | - | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.4 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 5 mA @ 200 V | -65°C ~ 150°C | Through Hole |
|
|
RURH3040CCRECTIFIER DIODE |
206 | $3.28 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Avalanche | 400 V | 30A | 1.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 µA @ 400 V | -55°C ~ 175°C | Through Hole |
|
UC1612JRECTIFIER DIODE, SCHOTTKY |
228 | $7.18 |
RFQ |
Datasheet |
Bulk | - | Active | - | Schottky | - | - | 50 V @ 1 A | - | - | - | -55°C ~ 150°C | Surface Mount |
|
113CNQ100DIODE SCHOTTKY 100V 110A PRM2 |
2,934 | $16.14 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 55A | 810 mV @ 55 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
NTE6206R-200V 30A FAST REC CATH |
2,587 | $21.69 |
RFQ |
Datasheet |
Bag | - | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.4 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 5 mA @ 200 V | -65°C ~ 150°C | Through Hole |
|

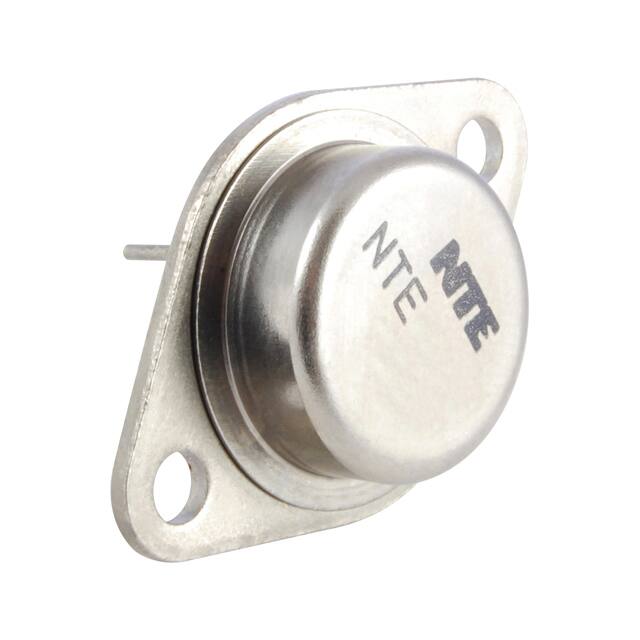

NTE6208R-400V 30A FAST REC CATH |
3,223 | $22.36 |
RFQ |
Datasheet |
Bag | - | Active | 1 Pair Common Cathode | Standard | 400 V | 15A | 1.4 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 5 mA @ 400 V | -65°C ~ 150°C | Through Hole |
|
SK2U150-400DIODE RECTIFIER 400V 150A SOT-22 |
2,215 | $22.77 |
RFQ |
Datasheet |
Box | - | Active | 2 Independent | Standard | 400 V | 75A | 1.1 V @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 50 µA @ 400 V | -55°C ~ 150°C | Chassis Mount |
|
MDD26-08N1BDIODE MODULE 800V 36A TO240AA |
2,392 | $22.77 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 36A | 1.38 V @ 80 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | - | Chassis Mount |
|
|
83CNQ080DIODE SCHOTTKY 80V 40A PRM2 |
2,380 | $22.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 40A | 1 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|

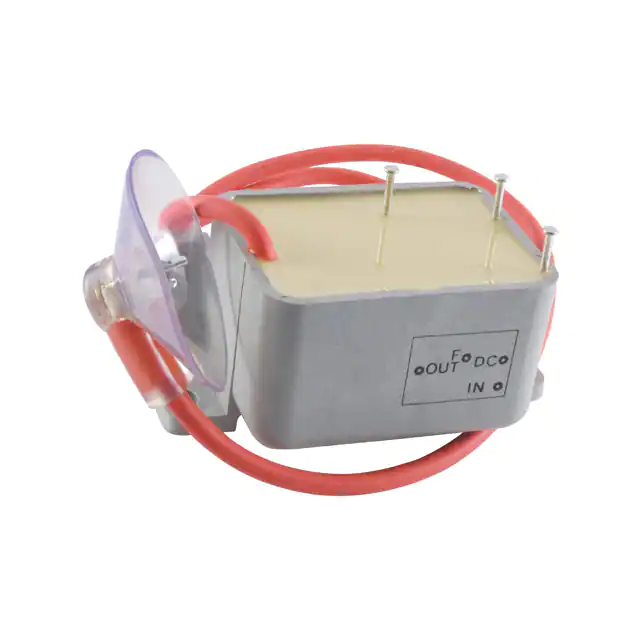

NTE532R-TRIPLER SI TV HIV |
2,508 | $23.08 |
RFQ |
Datasheet |
Bag | - | Active | 3 Pair Series Connection | Standard | - | - | - | - | - | - | - | Chassis Mount |
|
|
83CNQ100S2DIODE ARRAY SCHOTTKY 100V PRM2 |
3,776 | $23.23 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 80A | 1 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
|
SK2U200-400DIODE RECTIFIER 400V 200A SOT-22 |
3,256 | $25.05 |
RFQ |
Datasheet |
Box | - | Active | 2 Independent | Standard | 400 V | 120A (DC) | 1.15 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 50 µA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|
|
MDD56-08N1BDIODE MODULE 800V 95A TO240AA |
2,935 | $27.31 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 95A | 1.48 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | - | Chassis Mount |
|
SM090KD800G1DIODE RECTIFIER 800V 90A DOUBLE |
3,036 | $28.30 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Series Connection | Standard | 800 V | 100A | 1.15 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|

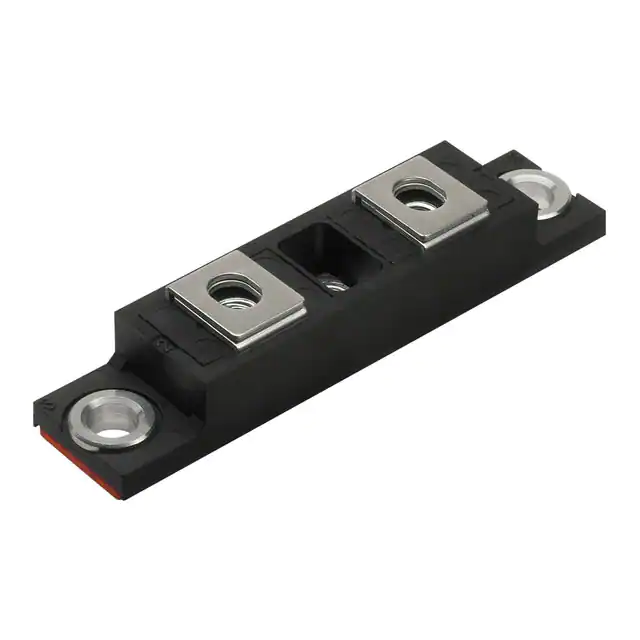

VS-VS5HD240CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,187 | $33.12 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 229A (DC) | 1.68 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 52 ns | 500 µA @ 600 V | -40°C ~ 175°C | Chassis Mount |
|
|
MDD72-12N1BDIODE MODULE 1.2KV 113A TO240AA |
3,137 | $34.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 113A | 1.6 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1200 V | - | Chassis Mount |
|
|
VS-VS5HD300CW60TO-244 - GEN5 FRED IN COMMON CAT |
3,458 | $35.43 |
RFQ |
Datasheet |
Box | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 600 V | 259A (DC) | 1.7 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 68 ns | 700 µA @ 600 V | -40°C ~ 175°C | Chassis Mount |
;;.jpg)
|
406CMQ200RDIODE SCHOTTKY 200V 400A PRM4-IS |
3,132 | $39.18 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Common Anode | Schottky | 200 V | 200A | 990 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|

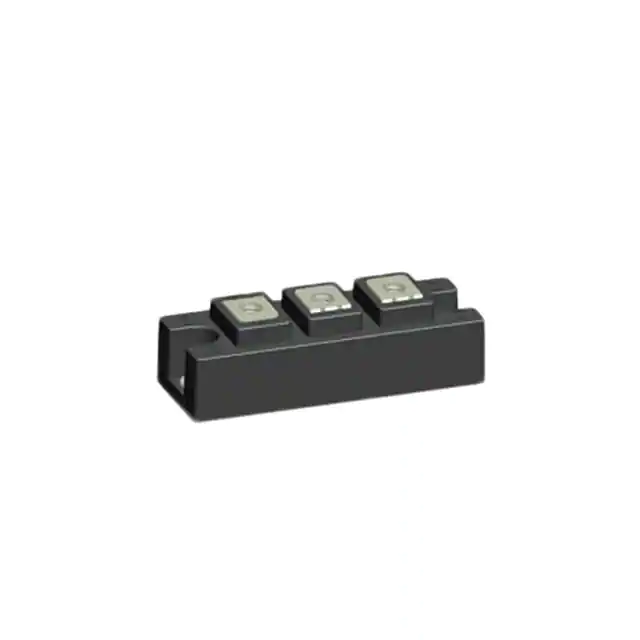

SM165KD800G2DIODE RECTIFIER 800V 165A DOUBLE |
2,629 | $39.38 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Series Connection | Standard | 800 V | 165A | 1.25 V @ 165 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 800 V | -40°C ~ 150°C | Chassis Mount |
