| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPVZ5004G7UPRESSURE SENSOR SS CAP 8-DIP |
2,954 | $0.00 |
RFQ |
Datasheet |
8-DIP Module | Tube | MPVZ5004G | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | PC Pin | 2.32PSI (16kPa) | 0°C ~ 85°C |
|
MPVZ5004GW6UPRESSURE SENSOR VERT 8-SMD |
3,934 | $0.00 |
RFQ |
Datasheet |
8-SMD Module | Tube | MPVZ5004G | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | Male - 0.22 (5.59mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 2.32PSI (16kPa) | 0°C ~ 85°C |
|
|

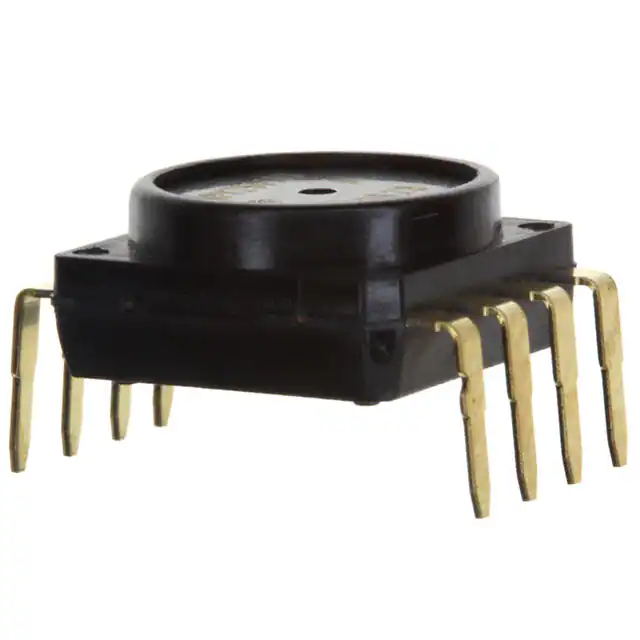

MPVZ5010G7UPRESSURE SENSOR SS CAP 8-DIP |
2,811 | $0.00 |
RFQ |
Datasheet |
8-DIP Module | Tube | MPVZ5010G | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | - | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|
MPX10GSPRESSURE SENSOR GAUGE 4-SIP |
2,250 | $0.00 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX10 | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (3V) | - | 3V ~ 6V | Male - 0.19 (4.93mm) Tube | Barbed | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C |
|
MPX2100ASXPRESSURE SENSOR GAUGE 4-SIP |
2,819 | $0.00 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2100 | Obsolete | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19 (4.92mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX2100GVPSENSOR PRESSURE COMP 4-PIN |
3,344 | $0.00 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2100 | Obsolete | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX2301DT1PRESSURE SENSE MED 4SIP CHIP PAK |
2,263 | $0.00 |
RFQ |
Datasheet |
4-SSIP Module | Tape & Reel (TR) | MPX2301 | Obsolete | Board Mount | Differential | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 3.006 mV (6V) | ±1.5% | 6V ~ 10V | - | No Port | Temperature Compensated | PC Pin | 125PSI (861.84kPa) | 15°C ~ 40°C |
|
MPX4100AP1PRESSURE SENSOR ABSOLUTE 6-SIP |
3,284 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX4100A | Obsolete | Board Mount | Absolute | 2.9PSI ~ 15.23PSI (20kPa ~ 105kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.8% | 4.85V ~ 5.35V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX4115ASPRESSURE SENSOR ABSOLUTE 6-SIP |
3,630 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX4115A | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.8 V | - | 4.85V ~ 5.35V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPX4250GPIC SENSOR PRESSURE GAUGE 6-PIN |
2,298 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX4250 | Obsolete | Board Mount | Vented Gauge | 36.26PSI (250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.4% | 4.85V ~ 5.35V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 145.04PSI (1000kPa) | -40°C ~ 125°C |
|
MPX5010DP1PRESSURE SENSOR DIFF 6-SIP |
2,599 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX5010 | Obsolete | Board Mount | Differential | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|
|
MPX5010GSSENSOR PRESSURE GAUGE 6SIP AXIAL |
2,101 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX5010 | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|
|
MPX5050GP1PRESSURE SENSOR GAUGE 6-SIP |
2,709 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX5050 | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
|
MPX5100GSXSENSOR PRESSURE GAUGE PC AXIAL |
3,242 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX5100 | Obsolete | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPX5700ASPRESSURE SENSOR ABS AXIAL 6-SIP |
2,081 | $0.00 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX5700 | Obsolete | Board Mount | Absolute | 2.18PSI ~ 101.53PSI (15kPa ~ 700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C |
|
|
MPXAZ6115A7UPRESSURE SENSOR ABSOLUTE 8-DIP |
2,681 | $0.00 |
RFQ |
Datasheet |
8-DIP Module | Tube | MPXAZ6115A | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXH6101AC6T1SENSOR PRESSURE ABSOLUTE 8-SSOP |
3,162 | $0.00 |
RFQ |
Datasheet |
8-SOIC (0.335, 8.50mm Width), Top Port | Tape & Reel (TR) | MPXH6101A | Obsolete | Board Mount | Absolute | 2.18PSI ~ 15.23PSI (15kPa ~ 105kPa) | Analog Voltage | 0.2 V ~ 5 V | ±1.72% | 4.75V ~ 5.5V | Male - 0.13 (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPXH6101AC6UPRESSURE SENSOR ABSOLUTE 8-SSOP |
3,766 | $0.00 |
RFQ |
Datasheet |
8-SOIC (0.335, 8.50mm Width), Top Port | Tube | MPXH6101A | Obsolete | Board Mount | Absolute | 2.18PSI ~ 15.23PSI (15kPa ~ 105kPa) | Analog Voltage | 0.2 V ~ 5 V | ±1.72% | 4.75V ~ 5.5V | Male - 0.13 (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXH6300A6T1SENSOR PRESSURE ABSOLUTE 8-SSOP |
3,345 | $0.00 |
RFQ |
Datasheet |
8-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR) | MPXH6300A | Obsolete | Board Mount | Absolute | 2.9PSI ~ 44.09PSI (20kPa ~ 304kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.74V ~ 5.46V | - | No Port | Temperature Compensated | Gull Wing | 174.05PSI (1200kPa) | -40°C ~ 125°C |
|
|
MPXH6400A6T1SENSOR PRESSURE ABSOLUTE 8-SSOP |
3,427 | $0.00 |
RFQ |
Datasheet |
8-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR) | MPXH6400A | Obsolete | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.64V ~ 5.36V | - | No Port | Temperature Compensated | Gull Wing | 232.06PSI (1600kPa) | -40°C ~ 125°C |
