| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160H34PWR XFMR LAMINATED 24VA TH |
2,785 | $25.65 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
|
160H56PWR XFMR LAMINATED 24VA TH |
3,536 | $25.65 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 840mA, Series 420mA | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|

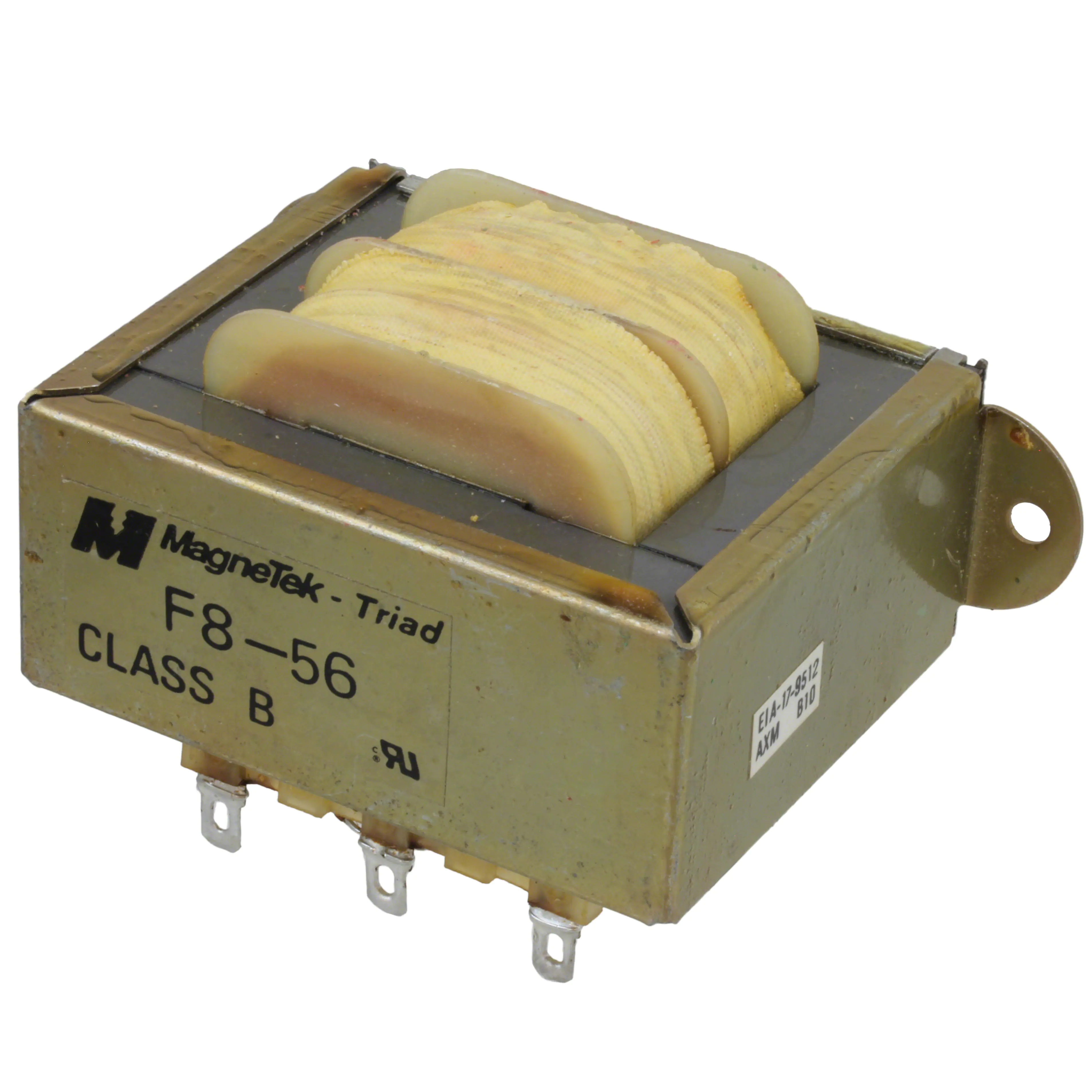

F8-56PWR XFMR LAMINATED 100VA CHAS MT |
2,709 | $26.32 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 56V | 1.8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|

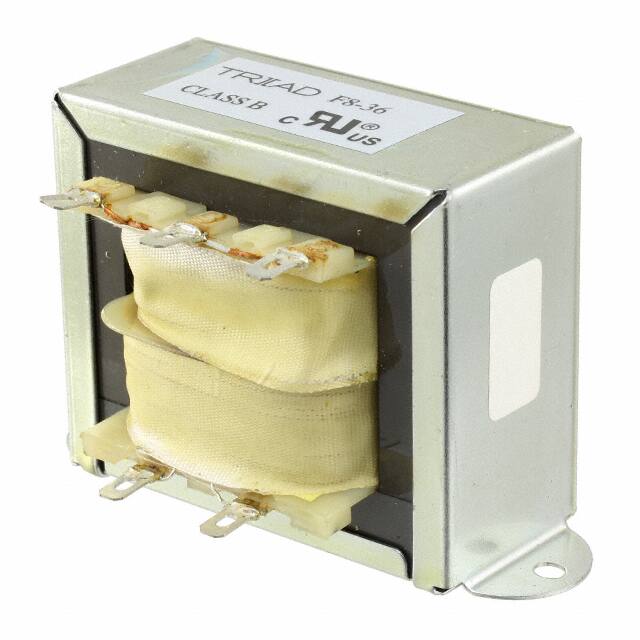

F8-36PWR XFMR LAMINATED 100VA CHAS MT |
2,975 | $26.32 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 36V | 2.8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
VPS230-350PWR XFMR LAMINATED 80VA CHAS MT |
3,844 | $26.54 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS16-5000PWR XFMR LAMINATED 80VA CHAS MT |
3,236 | $26.54 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 10A, Series 5A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS12-6300PWR XFMR LAMINATED 80VA CHAS MT |
3,511 | $26.28 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS28-2800PWR XFMR LAMINATED 80VA CHAS MT |
3,643 | $26.54 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|

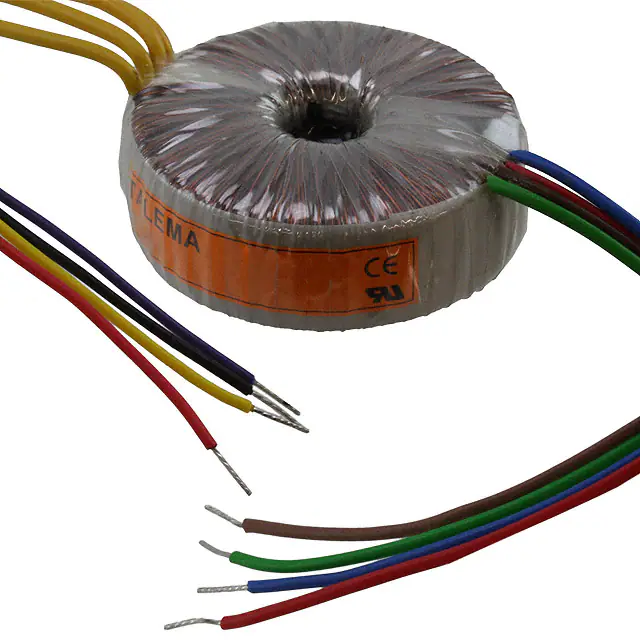

62050PWR XFMR TORO 15VA CHAS MT |
3,703 | $26.87 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 2.142A, Series 1.071A | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms |
|
166F44PWR XFMR LAMINATED 11VA CHAS MT |
2,856 | $27.16 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 44V | 250mA | Single | Single | Yes | 11VA | Chassis Mount | Wire Leads | 71.37mm L x 41.40mm W | 42.93mm | 2000Vrms |
|
185D20PWR XFMR LAMINATED 43VA CHAS MT |
3,326 | $27.56 |
RFQ |
Datasheet |
Bulk | 185 | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 56.39mm W | 68.07mm | 4000Vrms |
|
|
166E25XFRMR LAMINATED 3.75VA CHAS MNT |
3,393 | $27.80 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 25V | 150mA | Single | Single | Yes | 3.75VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms |
|
IF-18-230PWR XFMR SEMI-TORO 18VA TH |
3,455 | $27.92 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 160mA, Series 80mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 27.60mm | 4000Vrms |
|
|
166A24PWR XFMR LAMINATED 0.63VA CHAS |
2,021 | $28.42 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | Parallel 12.6V, Series 25.2V | Parallel 50mA, Series 25mA | Single | Single | Yes | 0.63VA | Chassis Mount | Wire Leads | 52.32mm L x 31.75mm W | 30.26mm | 2000Vrms |
|

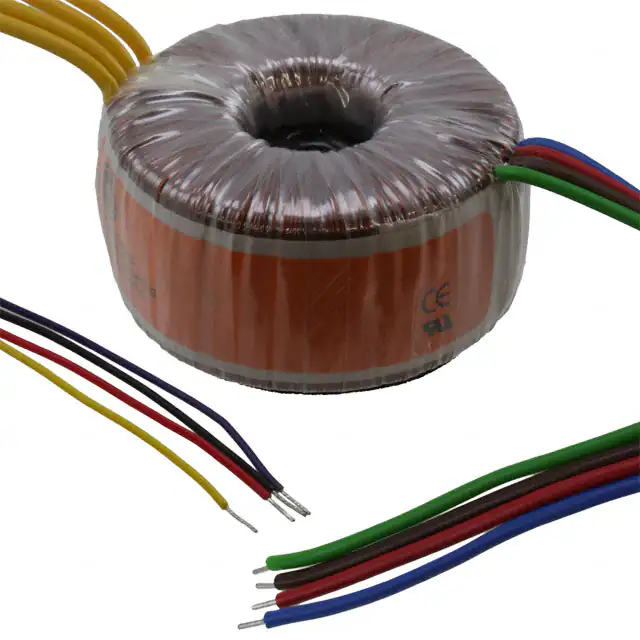

62063PWR XFMR TORO 25VA CHAS MT |
3,001 | $28.48 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.664A, Series 832mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms |
|
|
62064PWR XFMR TORO 25VA CHAS MT |
2,072 | $28.60 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.388A, Series 694mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms |
|
241-8-36PWR XFMR LAMINATED 100VA CHAS MT |
2,036 | $28.72 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V | 36V | 2.8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
241-8-120PWR XFMR LAMINATED 100VA CHAS MT |
2,567 | $28.72 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 120V | 850mA | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
241-8-10PWR XFMR LAMINATED 100VA CHAS MT |
3,584 | $28.72 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V | 10V | 10A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
241-8-48PWR XFMR LAMINATED 100VA CHAS MT |
3,344 | $28.72 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 48V | 2A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
