| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-113XPWR XFMR LAMINATED 1.8VA CHAS MT |
3,641 | $10.13 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12V | 150mA | Single | Single | No | 1.8VA | Chassis Mount | Wire Leads | 60.32mm L x 34.93mm W | 34.93mm | 1500Vrms |
|
ST-2-16PWR XFMR LAMINATED 1.1VA TH |
113 | $10.50 |
RFQ |
Datasheet |
Box | ST | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 24.60mm | 2500Vrms |
|
|
ST-3-120PWR XFMR LAMINATED 2.4VA TH |
2,781 | $10.65 |
RFQ |
Datasheet |
Bulk | ST | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.80mm | 2500Vrms |
|
F12-1000-C2PWR XFMR LAMINATED 12VA TH |
2,500 | $11.11 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 4200Vrms |
|
|
F24-500-C2PWR XFMR LAMINATED 12VA TH |
3,422 | $11.11 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|

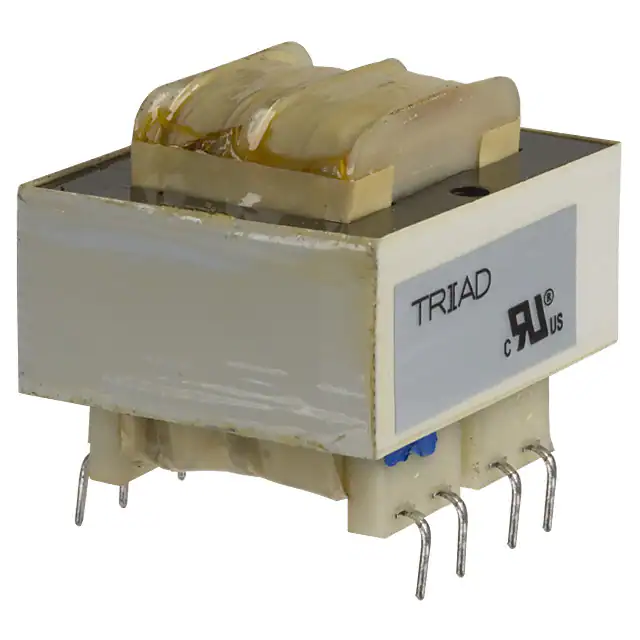

FS36-170PWR XFMR LAMINATED 6VA TH |
467 | $11.25 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
FS10-600PWR XFMR LAMINATED 6VA TH |
3,161 | $11.25 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|

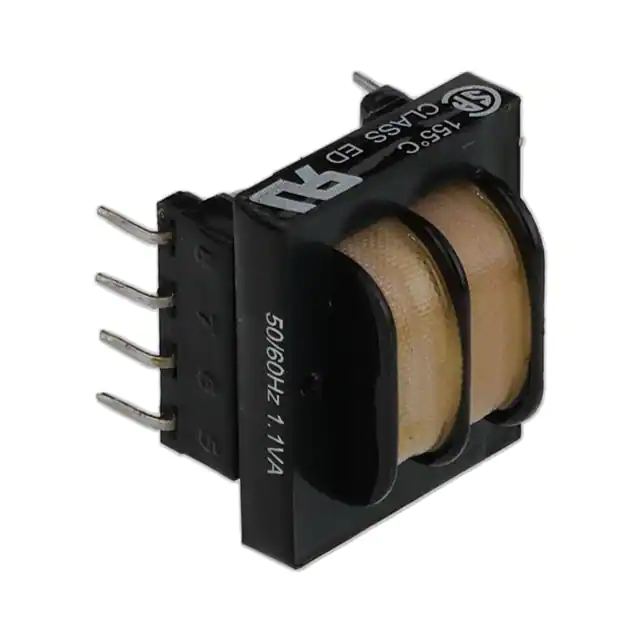

161D56PWR XFMR LAMINATED 1VA TH |
3,014 | $11.27 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 30mA, Series 15mA | Single | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms |
|
164D56PWR XFMR LAMINATED 1.1VA TH |
2,792 | $11.31 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 33.32mm | 2500Vrms |
|
161E40XFRMR LAMINATED 1.2VA THRU HOLE |
3,033 | $11.61 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 60mA, Series 30mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms |
|
F-116XPWR XFMR LAMINATED 4.8VA CHAS MT |
3,500 | $11.95 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 200mA | Single | Single | Yes | 4.8VA | Chassis Mount | Wire Leads | 60.32mm L x 38.10mm W | 34.93mm | 1500Vrms |
|
|
161E28XFRMR LAMINATED 1.2VA THRU HOLE |
2,715 | $11.98 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms |
|

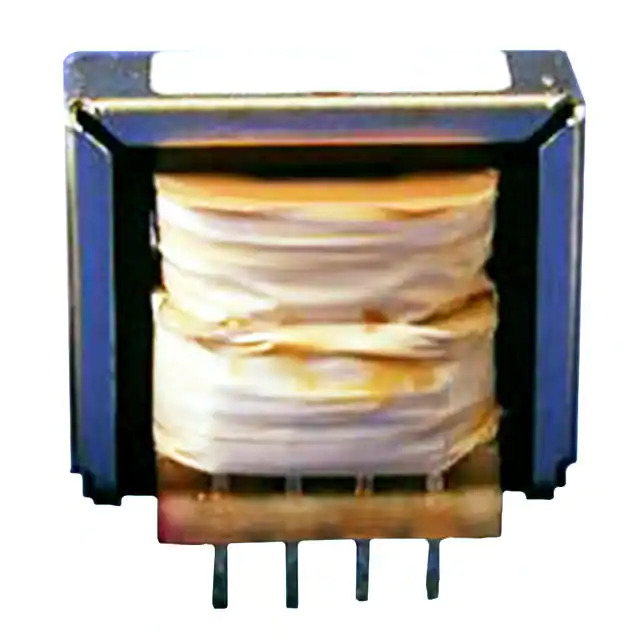

160E28XFRMR LAMINATED 1.2VA THRU HOLE |
3,617 | $11.98 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Dual | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms |
|
162D56PWR XFMR LAMINATED 1.1VA TH |
3,824 | $12.07 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 33.32mm | 2500Vrms |
|
|
160E56XFRMR LAMINATED 1.2VA THRU HOLE |
2,743 | $12.07 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms |
|
|
162D36PWR XFMR LAMINATED 1.1VA TH |
3,111 | $12.07 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 60mA, Series 30mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 33.32mm | 2500Vrms |
|
|
162D120PWR XFMR LAMINATED 1.1VA TH |
2,124 | $12.07 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 20mA, Series 10mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 33.32mm | 2500Vrms |
|
DST-2-10PWR XFMR LAMINATED 1.1VA TH |
2,675 | $12.09 |
RFQ |
Datasheet |
Bulk | DST | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 24.60mm | 2500Vrms |
|

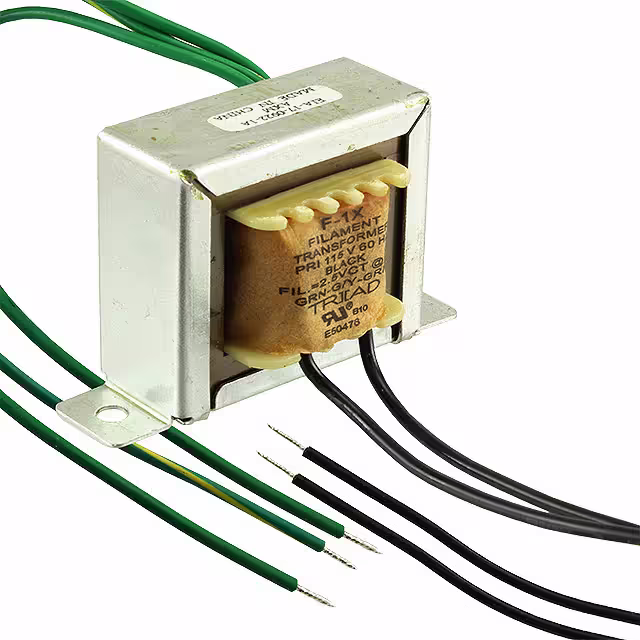

F-1XPWR XFMR LAMINATED 7.5VA CHAS MT |
3,658 | $13.00 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 2.5V | 3A | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms |
|

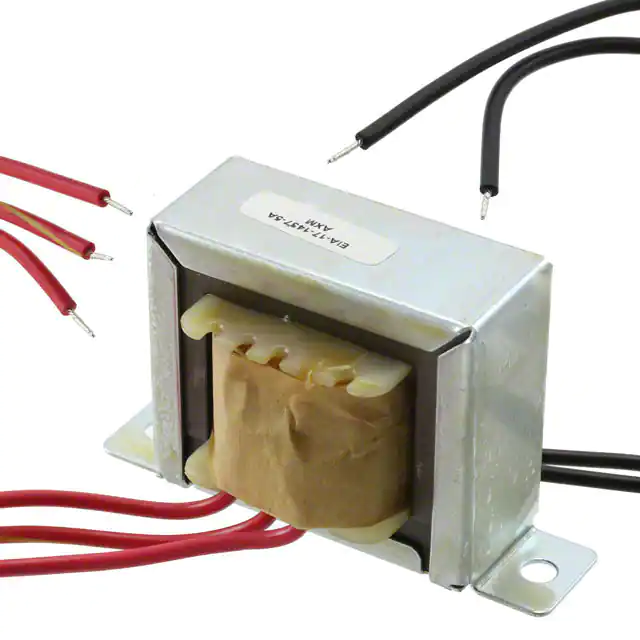

F-117XPWR XFMR LAMINATED 9.6VA CHAS MT |
107 | $13.00 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 400mA | Single | Single | Yes | 9.6VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms |
