| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000N00BD40FLED COB CXA3590 NEUTRAL WHITE SQ |
3,150 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00BD40HLED COB CXA3590 NEUTRAL WHITE SQ |
2,276 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00BD50FLED COB CXA3590 COOL WHT SQUARE |
3,930 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00BD50HLED COB CXA3590 COOL WHT SQUARE |
2,821 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00BD57FLED COB CXA3590 COOL WHT SQUARE |
2,317 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00BD65FLED COB CXA3590 COOL WHT SQUARE |
3,123 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB0E1LED COB CXA3590 COOL WHT SQUARE |
2,662 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB0E2LED COB CXA3590 COOL WHT SQUARE |
3,941 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB0E3LED COB CXA3590 COOL WHT SQUARE |
3,718 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB40FLED COB CXA3590 NEUTRAL WHITE SQ |
2,769 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB40HLED COB CXA3590 NEUTRAL WHITE SQ |
2,691 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB50FLED COB CXA3590 COOL WHT SQUARE |
3,147 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB50HLED COB CXA3590 COOL WHT SQUARE |
3,663 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB57FLED COB CXA3590 COOL WHT SQUARE |
2,872 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CB65FLED COB CXA3590 COOL WHT SQUARE |
3,373 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CD0E1LED COB CXA3590 COOL WHT SQUARE |
2,250 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CD0E2LED COB CXA3590 COOL WHT SQUARE |
3,128 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|

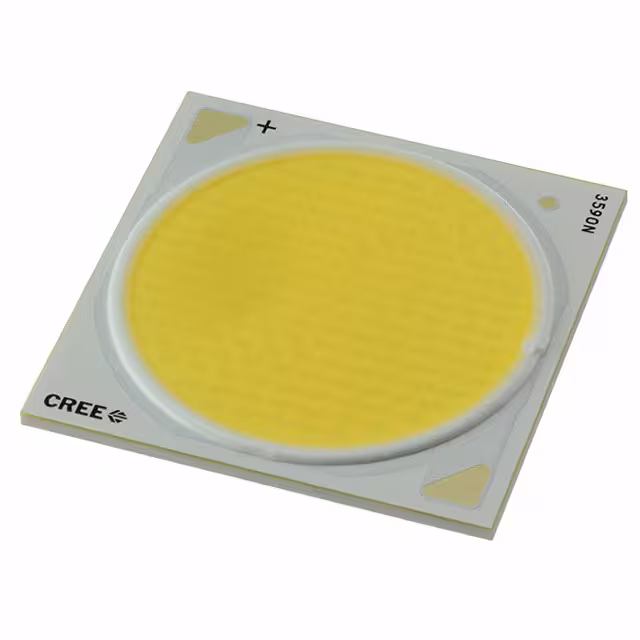

CXA3590-0000-000N00CD0E3LED COB CXA3590 COOL WHT SQUARE |
2,892 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CD50FLED COB CXA3590 COOL WHT SQUARE |
3,076 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000N00CD50HLED COB CXA3590 COOL WHT SQUARE |
2,702 | $0.00 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
