| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBR-160-RGBW-R41-RD100BIG CHIP LED HB MODULE RGB, WHT |
3,873 | $0.00 |
RFQ |
Datasheet |
Tray | SBR-160 | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 623nm Red, 530nm Green, 458nm Blue | Square | - | 4A Red, 4A Green, 4A Blue, 4A White | 25°C | 3V Red, 4.6V Green, 3.8V Blue, 3.8V White | - | 4A Red, 4A Green, 4A Blue, 4A White | - | - | With Connector | 36.00mm L x 36.00mm W | 8.72mm | - |
|
SBR-90-W65S-R71-MA100BIG CHIP LED HB MODULE WHITE |
2,322 | $0.00 |
RFQ |
Datasheet |
Tray | SBR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | - | 40°C | 3.5V | - | 9A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W |
|
|
SBR-90-W65S-R71-MB100BIG CHIP LED HB MODULE WHITE |
3,993 | $0.00 |
RFQ |
Datasheet |
Tray | SBR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | - | 40°C | 3.5V | - | 9A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W |
|
|
SBR-90-W65S-R71-MB102BIG CHIP LED HB MODULE WHITE |
2,996 | $0.00 |
RFQ |
Datasheet |
Tray | SBR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | - | 40°C | 3.5V | - | 9A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W |
|
SST-90-G-F11-JG201BIG CHIP LED HB MODULE GREEN |
3,002 | $0.00 |
RFQ |
Datasheet |
Tray | SST-90 | Obsolete | Chip On Board (COB) | Green | - | 537nm | Square | 855lm (Typ) | 3.15A | 25°C | 3.4V | 80 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
CBT-120-R-C11-HM101BIG CHIP LED HB MODULE RED |
2,024 | $0.00 |
RFQ |
Datasheet |
Tray | CBT-120 | Discontinued at Mosen | LED Module | Red | - | 621nm (619nm ~ 623nm) | Square | - | 18A | - | 2.3V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W |
|
CBT-40-G-C21-JF201BIG CHIP LED HB MODULE GREEN |
3,111 | $0.00 |
RFQ |
Datasheet |
Tray | CBT-40 | Obsolete | LED Module | Green | - | 528nm (520nm ~ 535nm) | Rectangle | 650lm (Typ) | 5.9A | 40°C | 4.5V | 24 lm/W | 12A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W |
|
CBT-40-R-C21-HF101BIG CHIP LED HB MODULE RED |
3,485 | $0.00 |
RFQ |
Datasheet |
Tray | CBT-40 | Obsolete | LED Module | Red | - | 621nm (619nm ~ 623nm) | Rectangle | 270lm (Typ) | 5.9A | 40°C | 2.5V | 18 lm/W | 12A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W |
|
CBT-90-B-C11-KJ301BIG CHIP LED HB MODULE BLUE |
2,089 | $0.00 |
RFQ |
Datasheet |
Tray | CBT-90 | Discontinued at Mosen | LED Module | Blue | - | 460nm | Rectangle | - | 13.5A | - | 3.4V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
CSM-360-W45S-D22-GU400BIG CHIP LED HB MODULE WHITE |
3,994 | $0.00 |
RFQ |
Datasheet |
Tray | CSM-360 | Obsolete | LED Module | White, Neutral | 4500K | - | Square | 2750lm (2500lm ~ 3000lm) | 3.15A | 25°C | 14.15V | 62 lm/W | 6.3A | 70 (Typ) | - | With Connector | 51.00mm L x 36.00mm W | 12.20mm | 16.00mm Dia |
|
CST-90-W57S-C13-GN201BIG CHIP LED HB MODULE WHITE |
3,700 | $0.00 |
RFQ |
Datasheet |
Tray | CST-90 | Obsolete | LED Module | White, Cool | 5700K | - | Square | 925lm (850lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 13.5A | 70 (Typ) | - | With Connector | 42.00mm L x 28.00mm W | 7.90mm | 8.00mm Dia |
|
|
CSM-360-W45S-D22-GV400BIG CHIP LED HB MODULE WHITE |
2,520 | $0.00 |
RFQ |
Datasheet |
Tray | CSM-360 | Obsolete | LED Module | White, Neutral | 4500K | - | Square | 3300lm (3000lm ~ 3600lm) | 3.15A | 25°C | 14.15V | 74 lm/W | 6.3A | 70 (Typ) | - | With Connector | 51.00mm L x 36.00mm W | 12.20mm | 16.00mm Dia |
|

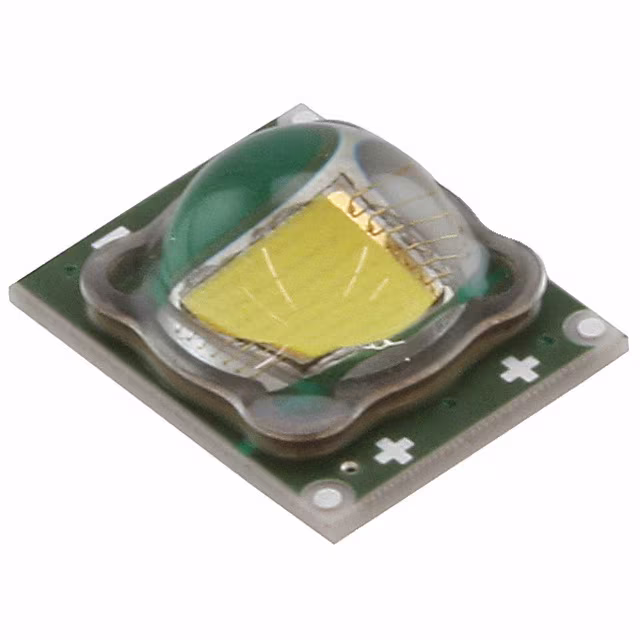

SST-50-W45S-F21-J3401BIG CHIP LED HB MODULE WHITE |
3,498 | $0.00 |
RFQ |
Datasheet |
Tray | SST-50 | Obsolete | Chip On Board (COB) | White, Neutral | 4500K | - | Square | 488lm (475lm ~ 500lm) | 1.75A | 25°C | 3.2V | 87 lm/W | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia |
|
CSM-360-W57S-D22-GV201BIG CHIP LED HB MODULE WHITE |
3,933 | $0.00 |
RFQ |
Datasheet |
Tray | CSM-360 | Obsolete | LED Module | White, Cool | 5700K | - | Square | 3300lm (3000lm ~ 3600lm) | 3.15A | 25°C | 14.15V | 74 lm/W | 6.3A | 70 (Typ) | - | With Connector | 51.00mm L x 36.00mm W | 12.20mm | 16.00mm Dia |
|
|
CST-90-W65S-C12-GN100BIG CHIP LED HB MODULE WHITE |
3,167 | $0.00 |
RFQ |
Datasheet |
Tray | CST-90 | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | 925lm (850lm ~ 1000lm) | 3.15A | 40°C | 3.25V | 90 lm/W | 13.5A | 70 (Typ) | 95° | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 3.00mm W |
|
SST-50-W57S-F21-GK200BIG CHIP LED HB MODULE WHITE |
2,039 | $0.00 |
RFQ |
Datasheet |
Tray | SST-50 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | - | 1.75A | - | 3.2V | - | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia |
|
|
CSM-360-W57S-D22-GX201BIG CHIP LED HB MODULE WHITE |
2,695 | $0.00 |
RFQ |
Datasheet |
Tray | CSM-360 | Obsolete | LED Module | White, Cool | 5700K | - | Square | 3950lm (3600lm ~ 4300lm) | 3.15A | 25°C | 14.15V | 89 lm/W | 6.3A | 70 (Typ) | - | With Connector | 51.00mm L x 36.00mm W | 12.20mm | 16.00mm Dia |
|

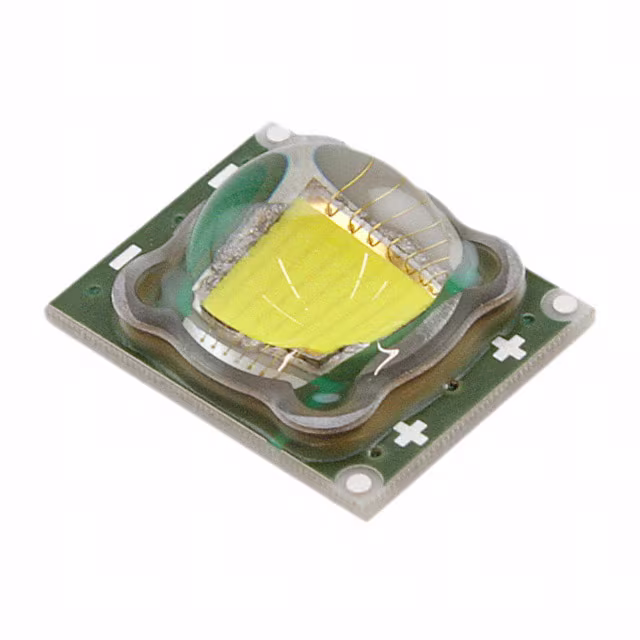

SST-50-W57S-F21-GK201BIG CHIP LED HB MODULE WHITE |
3,358 | $0.00 |
RFQ |
Datasheet |
Tray | SST-50 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | - | 1.75A | - | 3.2V | - | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia |
|

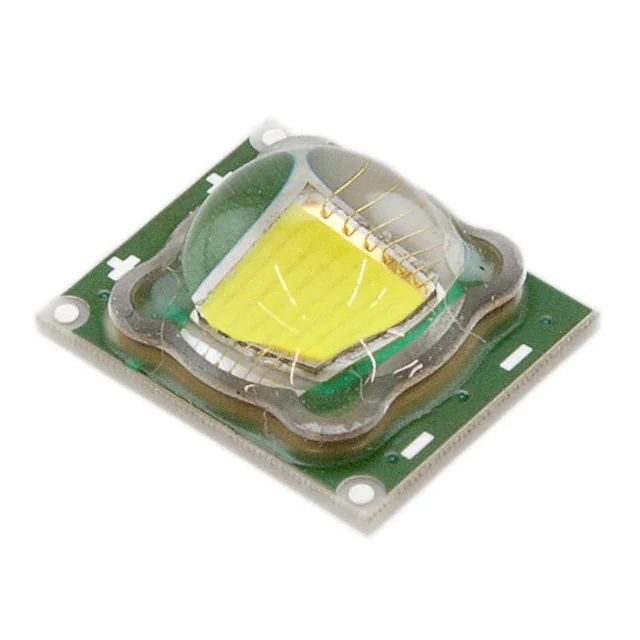

SST-50-W65S-F21-J3102BIG CHIP LED HB MODULE WHITE |
2,703 | $0.00 |
RFQ |
Datasheet |
Tray | SST-50 | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 488lm (475lm ~ 500lm) | 1.75A | 25°C | 3.2V | 87 lm/W | 5A | 70 | 100° | - | 7.30mm L x 9.00mm W | 4.30mm | 5.60mm Dia |
|
LMH020-0850-27G9-20100TWLED ENG LMH2 TRUEWHITE WARM WHT |
3,443 | $0.00 |
RFQ |
Datasheet |
- | LMH2 TrueWhite® | Obsolete | LED Engine | White, Warm | 2700K | - | Round, Plug and Play | - | - | - | - | - | 440mA | - | - | - | - | - | - |
