| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMA3090-0000-000R0Z0A27HXLAMP CMA LIGHT EMITTING DIODE W |
2,958 | $34.00 |
RFQ |
Datasheet |
Tray | XLamp® CMA3090 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 8220lm (Typ) | 1.2A | 85°C | 68V | 101 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CMA3090-0000-000R0Z0A30HXLAMP CMA LIGHT EMITTING DIODE W |
2,884 | $34.00 |
RFQ |
Datasheet |
Tray | XLamp® CMA3090 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8682lm (Typ) | 1.2A | 85°C | 68V | 106 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CMA3090-0000-000R0Z0A35HXLAMP CMA LIGHT EMITTING DIODE W |
3,548 | $34.00 |
RFQ |
Datasheet |
Tray | XLamp® CMA3090 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9286lm (Typ) | 1.2A | 85°C | 68V | 114 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CMA3090-0000-000R0Z0AL5AXLAMP CMA LIGHT EMITTING DIODE W |
3,086 | $34.00 |
RFQ |
Datasheet |
Tray | XLamp® CMA3090 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 9541lm (Typ) | 1.2A | 85°C | 68V | 117 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CMA3090-0000-000R0Z0AL7CXLAMP CMA LIGHT EMITTING DIODE W |
2,786 | $34.00 |
RFQ |
Datasheet |
Tray | XLamp® CMA3090 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8682lm (Typ) | 1.2A | 85°C | 68V | 106 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|

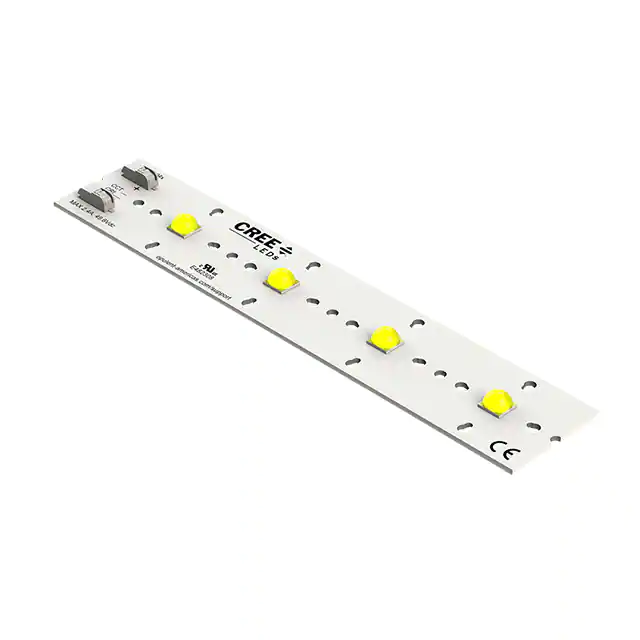

LPH1-04C24-5770-00L2 BOARD, XHP70.2, LINEAR, 1X4 |
2,674 | $0.00 |
RFQ |
Datasheet |
Tray | XHP70.2 | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 70 | - | - | 170.18mm L x 32.99mm W | - | |
|
|
LPH1-04C24-5780-00L2 BOARD, XHP70.2, LINEAR, 1X4 |
3,011 | $0.00 |
RFQ |
Datasheet |
Tray | XHP70.2 | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 80 | - | - | 170.18mm L x 32.99mm W | - | |
|
CXA3590-0000-000NT0AB27GLED COB CXA3590 WARM WHT SQUARE |
3,033 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 2.4A | 85°C | 36V | 101 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000NT0AD30GLED COB CXA3590 WARM WHT SQUARE |
2,134 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000NT0AD35GLED COB CXA3590 WARM WHT SQUARE |
3,569 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000NTHAD40GLED COB CXA3590 NEUT WHT SQUARE |
3,445 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000NTHBB50GLED COB CXA3590 COOL WHT SQUARE |
2,517 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000RT0AB27GLED COB CXA3590 WARM WHT SQUARE |
2,249 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 72V | 101 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000RT0AD30GLED COB CXA3590 WARM WHT SQUARE |
3,694 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000RT0AD35GLED COB CXA3590 WARM WHT SQUARE |
3,722 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000RTHAD40GLED COB CXA3590 NEUT WHT SQUARE |
3,530 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000RTHBB50GLED COB CXA3590 COOL WHT SQUARE |
2,483 | $34.34 |
RFQ |
Datasheet |
Tray | XLamp® CXA3590 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXB3070-0000-000N0UAB35HLED COB CXB3070 WARM WHT SQUARE |
3,824 | $34.43 |
RFQ |
Datasheet |
Tray | Xlamp® CXB3070 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.9A | 85°C | 36V | 128 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CXB3070-0000-000N0UAD50GLED COB CXB3070 COOL WHT SQUARE |
3,672 | $34.43 |
RFQ |
Datasheet |
Tray | Xlamp® CXB3070 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.9A | 85°C | 36V | 135 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CXB3070-0000-000N0UZ430HLED COB CXB3070 WARM WHT SQUARE |
2,887 | $34.43 |
RFQ |
Datasheet |
Tray | Xlamp® CXB3070 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.9A | 85°C | 36V | 112 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
