| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-27-40-70-54-AA30-F4-3LED COB 4000K SQUARE |
2,532 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 13875lm (Typ) | 1.6A | 85°C | 51V | 170 lm/W | 3.2A | 70 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
|
CXM-27-40-80-54-AA30-F4-3LED COB 4000K SQUARE |
3,148 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12935lm (Typ) | 1.6A | 85°C | 51V | 159 lm/W | 3.2A | 80 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
|
CXM-27-40-90-54-AA30-F4-3LED COB 4000K SQUARE |
2,147 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11220lm (Typ) | 1.6A | 85°C | 51V | 138 lm/W | 3.2A | 90 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
|
CXM-27-50-70-54-AA30-F4-5LED COB 5000K SQUARE |
3,288 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 14105lm (Typ) | 1.6A | 85°C | 51V | 173 lm/W | 3.2A | 70 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
|
CXM-27-50-80-54-AA30-F4-5LED COB 5000K SQUARE |
3,999 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 13025lm (Typ) | 1.6A | 85°C | 51V | 160 lm/W | 3.2A | 80 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
|
CXM-27-50-90-54-AA30-F4-5LED COB 5000K SQUARE |
2,130 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 11280lm (Typ) | 1.6A | 85°C | 51V | 138 lm/W | 3.2A | 90 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
|
CXM-27-65-70-54-AA30-F4-5LED COB 6500K SQUARE |
2,653 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 14120lm (Typ) | 1.6A | 85°C | 51V | 173 lm/W | 3.2A | 70 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
|
CXM-27-65-80-54-AA30-F4-5LED COB 6500K SQUARE |
2,876 | $20.84 |
RFQ |
Datasheet |
Tray | CXM-27 Gen3 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 12975lm (Typ) | 1.6A | 85°C | 51V | 159 lm/W | 3.2A | 80 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia |
|
SDW85F1C-K1/K2-EALED NEUTRAL WHITE 4000K 1A SMD |
2,788 | $20.88 |
RFQ |
Tray | ZC40 Z-Power COB | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4650lm (Typ) | 1A | 25°C | 37V | 126 lm/W | 1.28A | 80 | 120° | - | 28.00mm L x 28.00mm W | 2.30mm | - | |
|

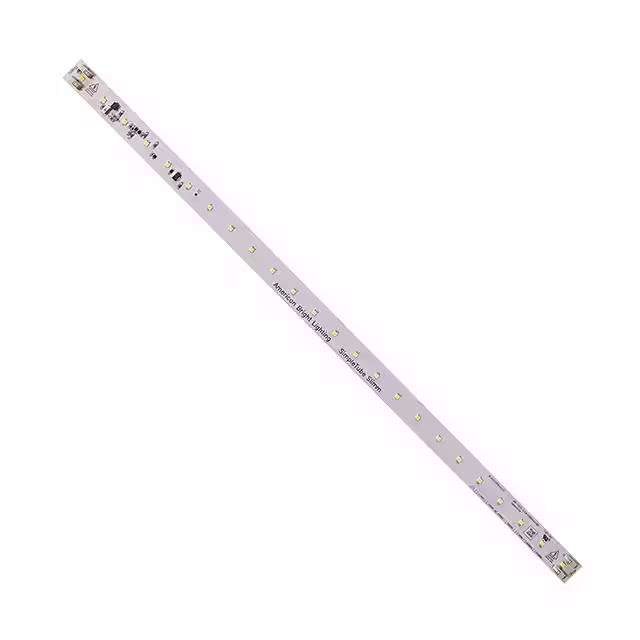

AB-GES-L54108W304N3INGENI-AC 120VAC LINEAR 540*20MM |
2,421 | $20.91 |
RFQ |
Datasheet |
Tray | AB-GES | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 880lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 542.00mm L x 20.00mm W | - | - |
|
|
AB-GES-L54108W404N3INGENI-AC 120VAC LINEAR 540*20MM |
3,476 | $20.91 |
RFQ |
Datasheet |
Tray | AB-GES | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 960lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 542.00mm L x 20.00mm W | - | - |
|
|
AB-GES-L54108W504N3INGENI-AC 120VAC LINEAR 540*20MM |
2,116 | $20.91 |
RFQ |
Datasheet |
Tray | AB-GES | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 960lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 542.00mm L x 20.00mm W | - | - |
|
CXA3050-0000-000N00X440HLED HB CXA3050 SERIES |
2,152 | $20.96 |
RFQ |
Datasheet |
Tray | XLamp® CXA3050 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.4A | 85°C | 37V | 120 lm/W | 2.5A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CXA3050-0000-000N0HX240HLED HB CXA3050 SERIES |
2,412 | $20.96 |
RFQ |
Datasheet |
Tray | XLamp® CXA3050 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.4A | 85°C | 37V | 112 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CXA3050-0000-000N00X235HLED HB CXA3050 SERIES |
3,607 | $20.96 |
RFQ |
Datasheet |
Tray | XLamp® CXA3050 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.4A | 85°C | 37V | 112 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
COB-WD-17-2420-30K-18K-9017MM WARM DIM COB, 30-18K 90CRI |
2,795 | $21.06 |
RFQ |
Tray | - | Active | Chip On Board (COB) | White, Warm | 1800K ~ 3000K | - | Rectangle | 3600lm | 950mA | 105°C | 34.5V | 110 lm/W | 1.05A | 90 | - | - | 23.90mm L x 19.90mm W | 1.60mm | 17.00mm Dia | |
|
CXA3070-0000-000N00Z20E5LED COB CXA3070 NEUTRAL WHITE SQ |
3,158 | $21.06 |
RFQ |
Datasheet |
Tray | XLamp® CXA3070 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 7668lm (7390lm ~ 7945lm) | 1.925A | 85°C | 38.5V | 103 lm/W | 2.8A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CXA3070-0000-000N00Z40E3LED COB CXA3070 COOL WHT SQUARE |
3,401 | $21.06 |
RFQ |
Datasheet |
Tray | XLamp® CXA3070 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.925A | 85°C | 38.5V | 111 lm/W | 2.8A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CXA3070-0000-000N0HZ20E5LED COB CXA3070 NEUTRAL WHITE SQ |
3,534 | $21.06 |
RFQ |
Datasheet |
Tray | XLamp® CXA3070 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 7668lm (7390lm ~ 7945lm) | 1.925A | 85°C | 38.5V | 103 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
XHP50A-0S-04-0D0BJ40E2LED MODULE 5700K SQUARE |
3,466 | $21.16 |
RFQ |
Datasheet |
Tray | XHP50A | Not For New Designs | LED Module | White, Cool | 5700K | - | Square | 4480lm (Typ) | 700mA | 85°C | 46V | 139 lm/W | 1.5A | 70 | - | - | 73.15mm L x 73.15mm W | - | - |
