| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-30G4000-C-72V18C WARM WHITE LED ARRAY |
2,381 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4699lm (Typ) | 1.17A | 85°C | 34V | 118 lm/W | 2.34A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-35E4000-C-72V18C WARM WHITE LED ARRAY |
3,238 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5831lm (Typ) | 1.17A | 85°C | 34V | 147 lm/W | 2.34A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-35G4000-C-72V18C WARM WHITE LED ARRAY |
3,046 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4868lm (Typ) | 1.17A | 85°C | 34V | 122 lm/W | 2.34A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-40E4000-C-72V18C NEUTRAL WHITE LED ARRAY |
3,515 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5887lm (Typ) | 1.17A | 85°C | 34V | 148 lm/W | 2.34A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-40G4000-C-72V18C NEUTRAL WHITE LED ARRAY |
2,438 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5038lm (Typ) | 1.17A | 85°C | 34V | 127 lm/W | 2.34A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-50C4001-C-73V18C COOL WHITE LED ARRAY |
3,644 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6453lm (Typ) | 1.17A | 85°C | 34V | 162 lm/W | 2.34A | 70 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-50E4001-C-73V18C COOL WHITE LED ARRAY |
2,908 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6066lm (Typ) | 1.17A | 85°C | 34V | 153 lm/W | 2.34A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-50G4001-C-73V18C COOL WHITE LED ARRAY |
3,608 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 5163lm (Typ) | 1.17A | 85°C | 34V | 130 lm/W | 2.34A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-57C4001-C-73V18C COOL WHITE LED ARRAY |
3,317 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 6227lm (Typ) | 1.17A | 85°C | 34V | 157 lm/W | 2.34A | 70 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-57E4001-C-73V18C COOL WHITE LED ARRAY |
3,758 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 6170lm (Typ) | 1.17A | 85°C | 34V | 155 lm/W | 2.34A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-65C4001-C-73V18C COOL WHITE LED ARRAY |
2,839 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 6340lm (Typ) | 1.17A | 85°C | 34V | 159 lm/W | 2.34A | 70 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-65E4001-C-73V18C COOL WHITE LED ARRAY |
2,921 | $9.07 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 6284lm (Typ) | 1.17A | 85°C | 34V | 158 lm/W | 2.34A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|

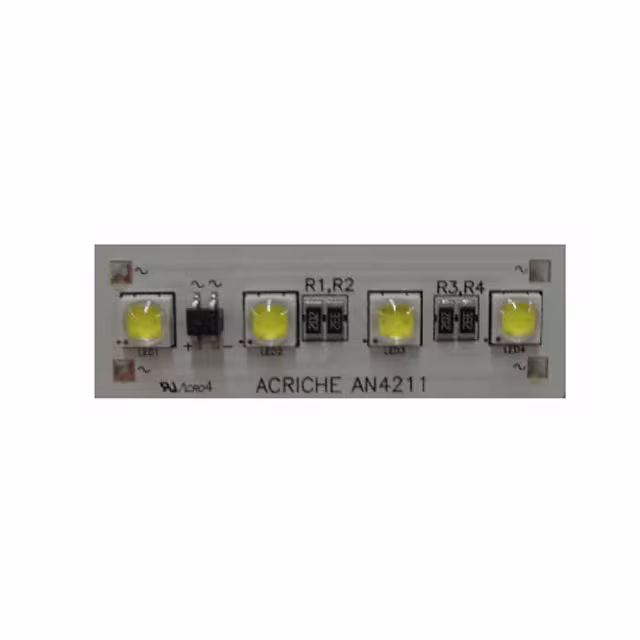

AN4211LED AC WARM WHIT 3000K LINEAR |
2,088 | $9.08 |
RFQ |
Tray | Acrich A4 | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip | 200lm (Typ) | 40mA | 25°C | - | - | - | 85 (Typ) | - | - | 70.00mm L x 23.00mm W | - | - | |
|

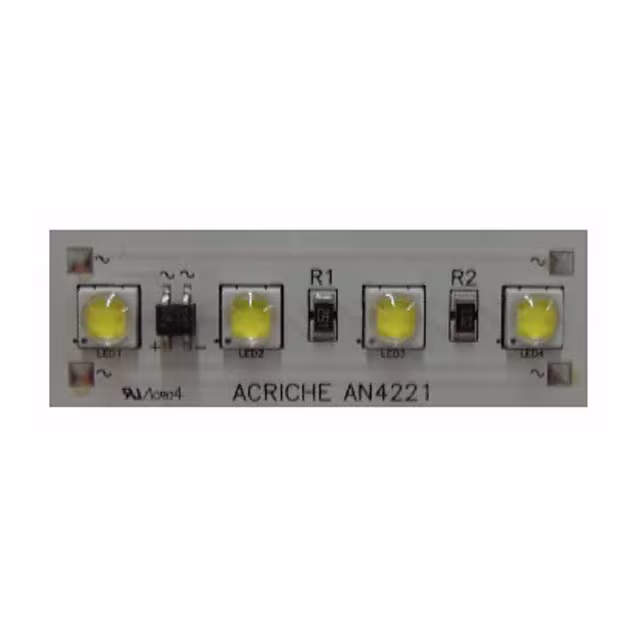

AN4221LED AC WARM WHIT 3000K LINEAR |
3,679 | $9.08 |
RFQ |
Tray | Acrich A4 | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip | 200lm (Typ) | 20mA | 25°C | - | - | - | 85 (Typ) | - | - | 70.00mm L x 23.00mm W | - | - | |
|

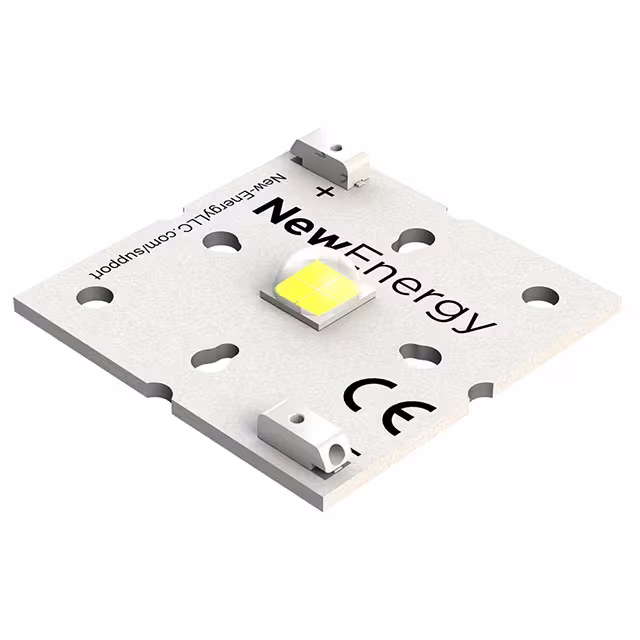

LPS1-01C24-2780-00L2 BOARD, XHP70.2, SQUARE, 1X1 |
2,130 | $0.00 |
RFQ |
Datasheet |
Tray | XHP70.2 | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1485lm (Typ) | 1.05A | 85°C | 11.2V | 126 lm/W | 2.4A | 80 | - | - | 36.83mm L x 36.83mm W | - | |
|
|
LPS1-01C24-2790-00L2 BOARD, XHP70.2, SQUARE, 1X1 |
3,611 | $0.00 |
RFQ |
Datasheet |
Tray | XHP70.2 | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1485lm (Typ) | 1.05A | 85°C | 11.2V | 126 lm/W | 2.4A | 90 | - | - | 36.83mm L x 36.83mm W | - | |
|
CHM-18-30-80-36-AA02-F2-3LED COB CHM18 WARM WHITE SQUARE |
3,668 | $9.21 |
RFQ |
Datasheet |
Tray | CHM-18 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4670lm (Typ) | 1.1A | 85°C | 35V | 121 lm/W | 2.4A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
|
BXRV-TR-2750G-20A0-A-23-S2TW LED ARRAY, LES=13MM, INTEGRAT |
3,508 | $9.24 |
RFQ |
Datasheet |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Square | 1910lm Warm White, 2220lm Cool White | 500mA | 25°C | 34.9V Warm White, 35.9V Cool White | 109 lm/W Warm White, 124 lm/W Cool White | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.20mm Dia |
|
|
BXRV-TR-1830G-20A0-A-25-S2TW LED ARRAY, LES=13MM, INTEGRAT |
2,534 | $9.24 |
RFQ |
Datasheet |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm | 1800K 5-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Square | 2090lm | 500mA | 25°C | 36.3V | 115 lm/W | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.20mm Dia |
|
L2C5-30HG1208E1500LED COB LUXEON WHITE 3000K RECT |
2,146 | $9.27 |
RFQ |
Datasheet |
Tube | LUXEON CoB, CrispColor | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3300lm (Typ) | 900mA | 85°C | - | 105 lm/W | - | 90 | - | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
