LED Lighting - COBs, Engines, Modules, Strips

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CXA2520-0000-000N0UP440H LED COB CXA2520 4000K WHITE SMD CreeLED, Inc.	2,001	$7.16	RFQ	Datasheet	Tray	XLamp® CXA2520	Active	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Square	2033lm (1965lm ~ 2100lm)	550mA	85°C	36V	103 lm/W	1.25A	90	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
CXA2520-0000-000N0UQ250H LED COB CXA2520 5000K WHITE SMD CreeLED, Inc.	2,357	$7.16	RFQ	Datasheet	Tray	XLamp® CXA2520	Active	Chip On Board (COB)	White, Cool	5000K 2-Step MacAdam Ellipse	-	Square	2180lm (2100lm ~ 2260lm)	550mA	85°C	36V	110 lm/W	1.25A	90	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia

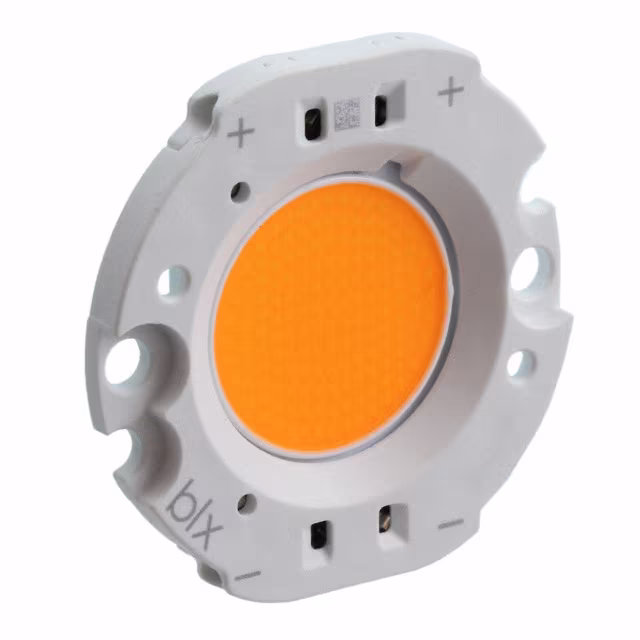

BXRC-20B4001-D-73-SE LED COB VERO 18 SE 2000K ROUND Bridgelux	3,784	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2000K 3-Step MacAdam Ellipse	-	Round	3929lm (Typ)	1.05A	85°C	28.3V	132 lm/W	2.1A	65	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30G400C-B-73-SE LED COB VERO 18 SE 3000K ROUND Bridgelux	3,848	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	3358lm (Typ)	900mA	85°C	34.1V	109 lm/W	1.8A	90	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-17E4000-B-74-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	3,886	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	1750K 4-Step MacAdam Ellipse	-	Round	2452lm (Typ)	900mA	85°C	33.9V	80 lm/W	1.8A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-17E4000-D-74-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	3,887	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	1750K 4-Step MacAdam Ellipse	-	Round	2384lm (Typ)	1.05A	85°C	28.3V	80 lm/W	2.1A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-25E4000-B-74-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	3,777	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2500K 4-Step MacAdam Ellipse	-	Round	3975lm (Typ)	900mA	85°C	33.9V	130 lm/W	1.8A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-25E4000-D-74-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	3,225	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2500K 4-Step MacAdam Ellipse	-	Round	3864lm (Typ)	1.05A	85°C	28.3V	130 lm/W	2.1A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-27E4000-B-72-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	2,794	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	4256lm (Typ)	900mA	85°C	33.9V	139 lm/W	1.8A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-27E4000-D-72-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	2,294	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	4138lm (Typ)	1.05A	85°C	28.3V	139 lm/W	2.1A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-27G4000-B-72-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	3,088	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	3552lm (Typ)	900mA	85°C	33.9V	116 lm/W	2.1A	90	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-27G4000-D-72-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	2,559	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	3453lm (Typ)	1.05A	85°C	28.3V	116 lm/W	2.1A	90	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-27H4000-B-73-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	3,532	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	3072lm (Typ)	900mA	85°C	33.9V	101 lm/W	1.8A	97 (Typ)	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-27H4000-D-73-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	3,981	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	2987lm (Typ)	1.05A	85°C	28.3V	101 lm/W	2.1A	97 (Typ)	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30A4001-B-73-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	3,311	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	3326lm (Typ)	900mA	85°C	33.9V	109 lm/W	1.8A	93 (Typ)	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30A4001-D-73-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	2,611	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	3234lm (Typ)	1.05A	85°C	28.3V	109 lm/W	2.1A	93 (Typ)	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30E4000-B-72-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	3,124	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	4426lm (Typ)	900mA	85°C	33.9V	145 lm/W	2.1A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30E4000-D-72-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	3,785	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	4303lm (Typ)	1.05A	85°C	28.3V	145 lm/W	2.1A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30G4000-B-72-SE VERO SE 18B WARM WHITE LED ARRAY Bridgelux	3,553	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	3693lm (Typ)	900mA	85°C	33.9V	121 lm/W	2.1A	90	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30G4000-D-72-SE VERO SE 18D WARM WHITE LED ARRAY Bridgelux	2,411	$7.18	RFQ	Datasheet	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	3590lm (Typ)	1.05A	85°C	28.3V	121 lm/W	2.1A	90	120°	-	36.20mm Dia	3.60mm	18.40mm Dia

Total 24132 Records«Prev 1... 524 525 526 527528529 530 531...1207 Next»
