| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB1512-0000-000N0UM227HLED COB CXB1512 WARM WHT SQUARE |
2,471 | $6.89 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 34.3V | 119 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0UM430HLED COB CXB1512 WARM WHT SQUARE |
2,423 | $6.89 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 34.3V | 128 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0UM435HLED COB CXB1512 WARM WHT SQUARE |
2,705 | $6.89 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 34.3V | 128 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0UN240HLED COB CXB1512 NEUT WHT SQUARE |
2,256 | $6.89 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 350mA | 85°C | 34.3V | 138 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA1507-0000-000N0UE250FLED ARRAY XLAMP CXA1507 WHITE |
3,163 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 200mA | 85°C | 37V | 83 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1507-0000-000F0UD440FLED COB CXA1507 NEUTRAL WHT SQ |
3,049 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 570lm (550lm ~ 590lm) | 400mA | 85°C | 18V | 79 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1507-0000-000F0UE250FLED COB CXA1507 COOL WHT SQUARE |
3,756 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 400mA | 85°C | 18V | 85 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA1830-0000-000N00S227FLED COB CXA1830 WARM WHT SQUARE |
3,632 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 800mA | 85°C | 37V | 97 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N00S435FLED COB CXA1830 WARM WHT SQUARE |
2,892 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 3060lm (2990lm ~ 3220lm) | 800mA | 85°C | 37V | 103 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0UR240FLED COB CXA1830 NEUTRAL WHITE SQ |
3,566 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 800mA | 85°C | 37V | 85 lm/W | 1.4A | - | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0YP427FLED COB CXA1830 WARM WHT SQUARE |
3,151 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 800mA | 85°C | 37V | 69 lm/W | 1.4A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0YQ230FLED COB CXA1830 WARM WHT SQUARE |
3,057 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 2180lm (2100lm ~ 2260lm) | 800mA | 85°C | 37V | 74 lm/W | 1.4A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0YQ435FLED COB CXA1830 WARM WHT SQUARE |
3,834 | $6.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2780lm) | 800mA | 85°C | 37V | 79 lm/W | 1.4A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
SPHWHAHDNM251ZV2DBLED COB LC080D 3000K SQ GEN 2+ |
3,996 | $6.91 |
RFQ |
Datasheet |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 12468lm (Typ) | 1.62A | 85°C | 51.1V | 151 lm/W | 3.24A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNM251ZW2DBLED COB LC080D 2700K SQ GEN 2+ |
2,481 | $6.91 |
RFQ |
Datasheet |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 12051lm (Typ) | 1.62A | 85°C | 51.1V | 146 lm/W | 3.24A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNM251ZT2DBLED COB LC080D 4000K SQ GEN 2+ |
2,417 | $6.91 |
RFQ |
Datasheet |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 13123lm (Typ) | 1.62A | 85°C | 51.1V | 159 lm/W | 3.24A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNM251ZU2DBLED COB LC080D 3500K SQ GEN 2+ |
2,641 | $6.91 |
RFQ |
Datasheet |
Tray | COB D Gen2 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 12852lm (Typ) | 1.62A | 85°C | 51.1V | 155 lm/W | 3.24A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|

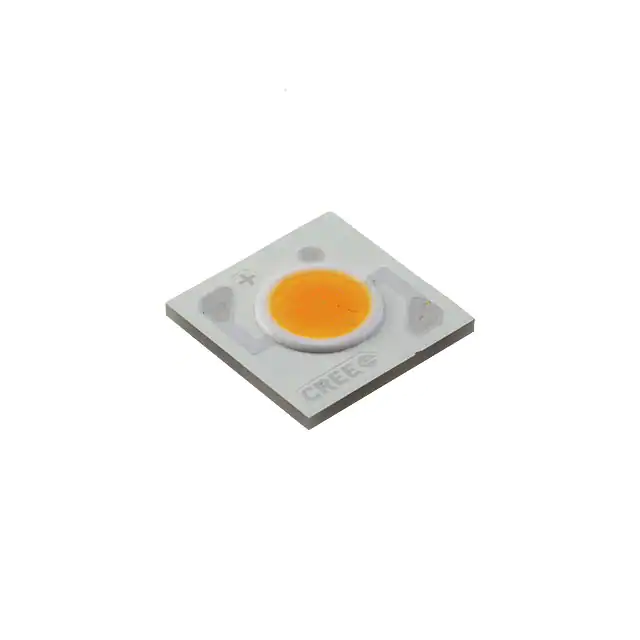

CXA1310-0000-000F0HK20E3LED COB CXA1310 COOL WHT SQUARE |
2,813 | $6.92 |
RFQ |
Datasheet |
Tray | XLamp® CXA1310 | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia |
|
|
SPHWHAHDNL251ZT2D3LED COB D 4000K SQUARE |
3,954 | $6.93 |
RFQ |
Datasheet |
Tray | COB D Gen3 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 9253lm (Typ) | 1.08A | 85°C | 51V | 168 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNL251ZU2D3LED COB D 3500K SQUARE |
3,849 | $6.93 |
RFQ |
Datasheet |
Tray | COB D Gen3 | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 9071lm (Typ) | 1.08A | 85°C | 51V | 165 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
