LED Lighting - COBs, Engines, Modules, Strips

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CXB1507-0000-000N0UG440G LED COB CXB1507 4000K WHT SMD CreeLED, Inc.	3,971	$2.60	RFQ	Datasheet	Tray	Xlamp® CXB1507	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	870lm (840lm ~ 900lm)	200mA	85°C	36V	121 lm/W	375mA	90	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
CXB1507-0000-000N0UH250G LED COB CXB1507 5000K WHT SMD CreeLED, Inc.	3,059	$2.60	RFQ	Datasheet	Tray	Xlamp® CXB1507	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	935lm (900lm ~ 970lm)	200mA	85°C	36V	130 lm/W	375mA	90	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia
BXRC-35A1001-D-73-SE LED COB VERO SE 3500K ROUND Bridgelux	3,384	$2.62	RFQ	Datasheet	Tray	Décor Series™ Class A Vero® SE 10	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	996lm (Typ)	350mA	85°C	25.3V	112 lm/W	700mA	93	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-20B1001-B-73-SE LED COB VERO 10 SE 2000K ROUND Bridgelux	3,740	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2000K 3-Step MacAdam Ellipse	-	Round	1192lm (Typ)	270mA	85°C	33.8V	131 lm/W	540mA	65	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-20B1001-D-73-SE LED COB VERO 10 SE 2000K ROUND Bridgelux	2,551	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2000K 3-Step MacAdam Ellipse	-	Round	1155lm (Typ)	350mA	85°C	25.3V	130 lm/W	700mA	65	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30G100C-D-73-SE LED COB VERO 10 SE 3000K ROUND Bridgelux	3,532	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	950lm (Typ)	350mA	85°C	25.3V	107 lm/W	700mA	90	120°	-	30.80mm Dia	3.60mm	9.90mm Dia

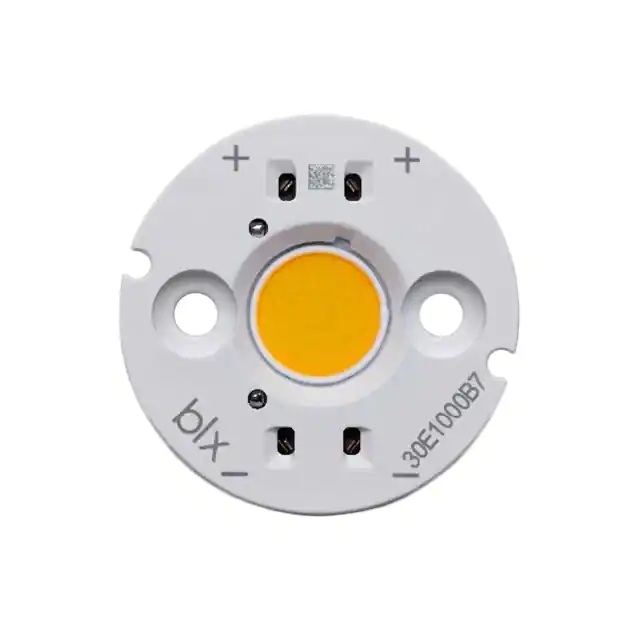

BXRC-27E1000-B-72-SE VERO SE 10B WARM WHITE LED ARRAY Bridgelux	2,008	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	1218lm (Typ)	270mA	85°C	33.8V	133 lm/W	540mA	80	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-27E1000-D-72-SE VERO SE 10D WARM WHITE LED ARRAY Bridgelux	3,444	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	1179lm (Typ)	350mA	85°C	25.3V	133 lm/W	700mA	80	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-27G1000-B-72-SE VERO SE 10B WARM WHITE LED ARRAY Bridgelux	3,197	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	1015lm (Typ)	270mA	85°C	33.8V	111 lm/W	540mA	90	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-27G1000-D-72-SE VERO SE 10D WARM WHITE LED ARRAY Bridgelux	3,653	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	983lm (Typ)	350mA	85°C	25.3V	111 lm/W	700mA	90	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-27H1000-B-73-SE VERO SE 10B WARM WHITE LED ARRAY Bridgelux	2,674	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	879lm (Typ)	270mA	85°C	33.8V	96 lm/W	540mA	97 (Typ)	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-27H1000-C-73-SE VERO SE 10C WARM WHITE LED ARRAY Bridgelux	2,409	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	1173lm (Typ)	360mA	85°C	33.8V	96 lm/W	720mA	97 (Typ)	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-27H1000-D-73-SE VERO SE 10D WARM WHITE LED ARRAY Bridgelux	2,025	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	852lm (Typ)	350mA	85°C	25.3V	96 lm/W	700mA	97 (Typ)	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30A1001-B-73-SE VERO SE 10B WARM WHITE LED ARRAY Bridgelux	2,898	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	956lm (Typ)	270mA	85°C	33.8V	105 lm/W	540mA	93 (Typ)	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30A1001-C-73-SE VERO SE 10C WARM WHITE LED ARRAY Bridgelux	2,415	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	1274lm (Typ)	360mA	85°C	33.8V	105 lm/W	720mA	93 (Typ)	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30A1001-D-73-SE VERO SE 10D WARM WHITE LED ARRAY Bridgelux	3,381	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	925lm (Typ)	350mA	85°C	25.3V	105 lm/W	700mA	93 (Typ)	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30E1000-B-72-SE VERO SE 10B WARM WHITE LED ARRAY Bridgelux	3,658	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	1268lm (Typ)	270mA	85°C	33.8V	139 lm/W	540mA	80	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30E1000-D-72-SE VERO SE 10D WARM WHITE LED ARRAY Bridgelux	2,148	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	1229lm (Typ)	350mA	85°C	25.3V	139 lm/W	700mA	80	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30G1000-B-72-SE VERO SE 10B WARM WHITE LED ARRAY Bridgelux	3,765	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	1057lm (Typ)	270mA	85°C	33.8V	116 lm/W	540mA	90	120°	-	30.80mm Dia	3.60mm	9.90mm Dia
BXRC-30G1000-D-72-SE VERO SE 10D WARM WHITE LED ARRAY Bridgelux	2,381	$2.62	RFQ	Datasheet	Tray	Vero® SE 10 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	1024lm (Typ)	350mA	85°C	25.3V	116 lm/W	700mA	90	120°	-	30.80mm Dia	3.60mm	9.90mm Dia

Total 24132 Records«Prev 1... 339 340 341 342343344 345 346...1207 Next»
