| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Tolerance | Part Status | Power - Max | Mounting Type | Package / Case | Impedance (Max) (Zzt) | Operating Temperature | Supplier Device Package | Voltage - Zener (Nom) (Vz) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PZU20B1A,115NEXPERIA PZU20B1A - ZENER DIODE, |
26,950 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 320 mW | Surface Mount | 20 Ohms | -55°C ~ 150°C | 20 V | 50 nA @ 15 V | 1.1 V @ 100 mA | |||
|
BZV55-B5V6,115NEXPERIA BZV55-B5V6 - ZENER DIOD |
547,467 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 500 mW | Surface Mount | 40 Ohms | -65°C ~ 200°C | 5.6 V | 1 µA @ 2 V | 900 mV @ 10 mA | |||
|
1N4745ATRDIODE ZENER 16V 1W 5% |
21,000 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1 W | Through Hole | 16 Ohms | -65°C ~ 200°C | 16 V | 5 µA @ 12.2 V | - | |||
|
TZMC36-GS18DIODE ZENER 36V 500MW SOD80 |
8,020 | $0.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TZM | RoHS | ±5% | Active | 500 mW | Surface Mount | 80 Ohms | -65°C ~ 175°C | 36 V | 100 nA @ 27 V | 1.5 V @ 200 mA | ||
|
PZU18B2L,315DIODE ZENER 18V 250MW DFN1006-2 |
9,677 | $0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 250 mW | Surface Mount | 20 Ohms | -55°C ~ 150°C | 18 V | 50 nA @ 13 V | 1.1 V @ 100 mA | |||
|
1N5355BDIODE ZENER 18V 5W AXIAL |
111 | $0.76 |
RFQ |
Datasheet |
Bag | RoHS | ±5% | Active | 5 W | Through Hole | 2.5 Ohms | -65°C ~ 200°C | 18 V | 500 nA @ 13.7 V | 1.2 V @ 1 A | |||
|
BZX84-B16,215NEXPERIA BZX84-B16 - ZENER DIODE |
26,500 | $0.02 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | ±2% | Active | 250 mW | Surface Mount | 40 Ohms | -65°C ~ 150°C | 16 V | 50 nA @ 11.2 V | 900 mV @ 10 mA | ||
|
BZX79-C8V2,143DIODE ZENER 8.2V 400MW ALF2 |
2,182 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 400 mW | Through Hole | 15 Ohms | -65°C ~ 200°C | 8.2 V | 700 nA @ 5 V | 900 mV @ 10 mA | |||
|
BZX85C18-T50RZENER DIODE, 18V V(Z), 5%, 1W, U |
21,000 | $0.03 |
RFQ |
Datasheet |
Bulk | RoHS | ±5% | Active | 1 W | Through Hole | 20 Ohms | -65°C ~ 200°C (TJ) | 18 V | 500 nA @ 12.5 V | 1.2 V @ 200 mA | |||
|
BZX79-B13,133DIODE ZENER 13V 400MW ALF2 |
7,642 | $0.24 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | ±2% | Active | 400 mW | Through Hole | 30 Ohms | -65°C ~ 200°C | 13 V | 100 nA @ 8 V | 900 mV @ 10 mA | |||
|
|
PZU4.7B2L,315DIODE ZENER 4.7V 250MW DFN1006-2 |
9,555 | $0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 250 mW | Surface Mount | 80 Ohms | -55°C ~ 150°C | 4.7 V | 2 µA @ 1 V | 1.1 V @ 100 mA | |||
|

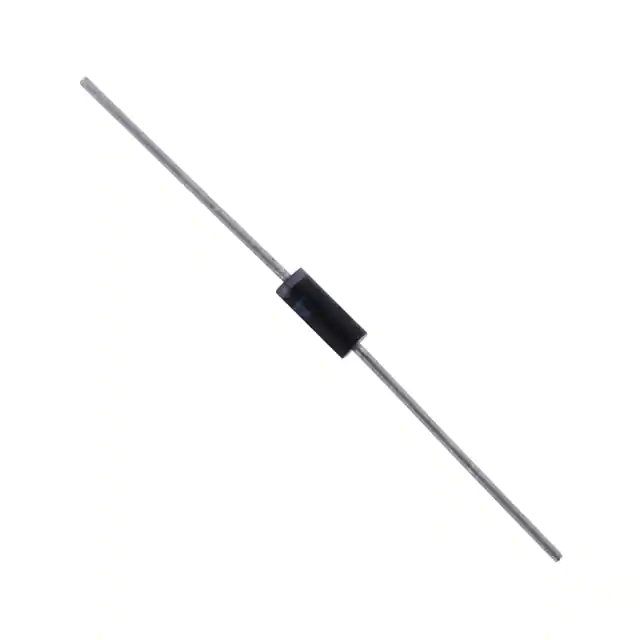

1N5343BDIODE ZENER 7.5V 5W AXIAL |
3,895 | $0.76 |
RFQ |
Datasheet |
Bag | RoHS | ±5% | Active | 5 W | Through Hole | 1.5 Ohms | -65°C ~ 200°C | 7.5 V | 10 µA @ 5.7 V | 1.2 V @ 1 A | |||
|
NZX16C,133NEXPERIA NZX16C - ZENER DIODE, 1 |
26,160 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | ±2% | Active | 500 mW | Through Hole | 45 Ohms | -55°C ~ 175°C | 16 V | 50 nA @ 11.2 V | 1.5 V @ 200 mA | |||
|
BZM55B9V1-TRDIODE ZENER 9.1V 500MW MICROMELF |
2,249 | $0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, BZM55 | RoHS | - | Active | 500 mW | Surface Mount | 50 Ohms | -65°C ~ 175°C | 9.1 V | 100 nA @ 6.8 V | 1.5 V @ 200 mA | ||
|
MMBZ5223B_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
2,016 | $0.20 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±5% | Active | 410 mW | Surface Mount | 30 Ohms | -55°C ~ 150°C (TJ) | 2.7 V | 75 µA @ 1 V | - | ||||
|
BZX384B8V2-HE3-08DIODE ZENER 8.2V 200MW SOD323 |
3,893 | $0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, BZX384 | RoHS | ±2% | Active | 200 mW | Surface Mount | 15 Ohms | -55°C ~ 150°C | 8.2 V | 700 nA @ 5 V | - | ||
|
|
BZX585-C5V1115DIODE ZENER 56V 0.3W 5% UNIDIR |
3,418 | $0.03 |
RFQ |
Bulk | RoHS | ±5% | Active | 300 mW | Surface Mount | 60 Ohms | -65°C ~ 150°C | 5.1 V | 2 µA @ 2 V | 1.1 V @ 100 mA | ||||
|
|
BZT52-B51S_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
3,409 | $0.26 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 200 mW | Surface Mount | 100 Ohms | -55°C ~ 150°C (TJ) | 51 V | 100 nA @ 38 V | - | ||||
|
|
BZX84B3V6W_R1_00001SURFACE MOUNT SILICON ZENER DIOD |
2,790 | $0.26 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2.08% | Active | 200 mW | Surface Mount | 90 Ohms | -55°C ~ 150°C (TJ) | 3.6 V | 5 µA @ 1 V | - | ||||
|
MMSZ5257C-E3-08DIODE ZENER 33V 500MW SOD123 |
3,722 | $0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | ±2% | Active | 500 mW | Surface Mount | 58 Ohms | -55°C ~ 150°C | 33 V | 100 nA @ 25 V | - |
