| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA203025XXDIODE GP 3KV 2500A POWRDISC |
3,590 | $388.70 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 200 mA @ 3000 V | 3000 V | 2500A | - | 1.25 V @ 3000 A | |
|
18TQ045STRLDIODE SCHOTTKY 45V 18A D2PAK |
2,455 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 2.5 mA @ 45 V | 45 V | 18A | -55°C ~ 175°C | 600 mV @ 18 A | |
|
|
W5984TE360RECTIFIER DIODE |
3,504 | $389.25 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 47 µs | 100 mA @ 3600 V | 3600 V | 5984A | -40°C ~ 160°C | 1.25 V @ 5000 A | ||
|
|
18TQ045STRRDIODE SCHOTTKY 45V 18A D2PAK |
2,156 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 2.5 mA @ 45 V | 45 V | 18A | -55°C ~ 175°C | 600 mV @ 18 A | |
|
|
SCHJ45KDIODE GEN PURP 45KV 50MA AXIAL |
2,268 | $391.86 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2.5 µs | 1 µA @ 45000 V | 45000 V | 50mA | -55°C ~ 150°C | 60 V @ 100 mA | |
|
|
19TQ015STRRDIODE SCHOTTKY 15V 19A D2PAK |
2,873 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1.5 mA @ 15 V | 15 V | 19A | -55°C ~ 125°C | 360 mV @ 19 A | |
|
|
RA203220XXDIODE GP 3.2KV 2000A POWRDISC |
3,559 | $392.67 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 200 mA @ 3200 V | 3200 V | 2000A | - | 1.45 V @ 3000 A | |
|
1N3087RDIODE GEN PURP 300V 150A DO205AC |
3,176 | $0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 17 mA @ 300 V | 300 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
JAN1N6942UTK3CS/TRDIODE POWER SCHOTTKY |
3,203 | $393.08 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 7000pF @ 5V, 1MHz | - | 5 mA @ 45 V | 45 V | 150A | -65°C ~ 175°C | 460 mV @ 50 A | ||
|
|
1N3288RDIODE GEN PURP 100V 100A DO205AA |
2,486 | $0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | 24 mA @ 100 V | 100 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
CDBQR0130L-HFDIODE SCHOTTKY 30V 100MA 0402 |
89,761 | $0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 10 µA @ 10 V | 30 V | 100mA | 125°C (Max) | 350 mV @ 10 mA | |
|
|
JAN1N6940UTK3AS/TRDIODE POWER SCHOTTKY |
2,824 | $393.08 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | - | - | 5 mA @ 15 V | 15 V | 150A | -65°C ~ 175°C | 500 mV @ 150 A | ||
|
HSM83TL-EDIODE FOR HIGH VOLTAGE SWITCHING |
62,589 | $0.10 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
1N3290DIODE GEN PURP 300V 100A DO205AA |
2,660 | $0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 24 mA @ 300 V | 300 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
SB150RECTIFIER DIODE |
20,002 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | 110pF @ 4V, 1MHz | - | 500 µA @ 50 V | 50 V | 1A | -60°C ~ 125°C | 700 mV @ 1 A | |
|
|
JAN1N6942UTK3/TRDIODE POWER SCHOTTKY |
2,828 | $393.08 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 7000pF @ 5V, 1MHz | - | 5 mA @ 45 V | 45 V | 150A | -65°C ~ 150°C | 460 mV @ 50 A | ||
|

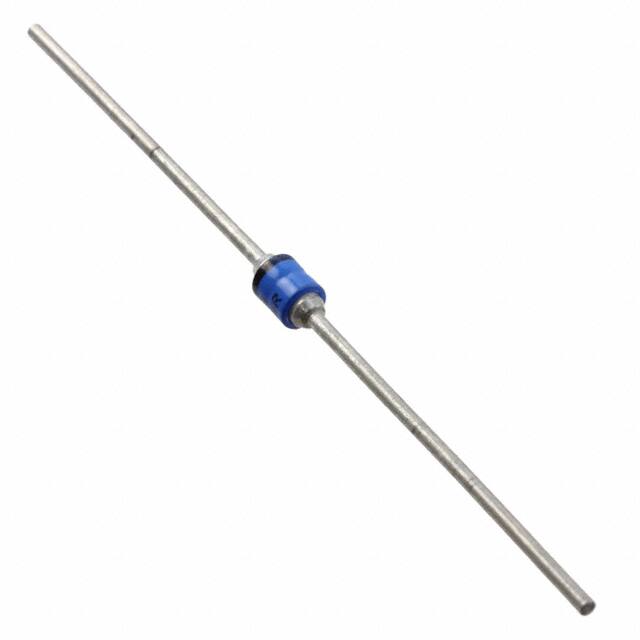

JANTX1N5190DIODE GEN PURP 600V 3A AXIAL |
264 | $13.64 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/424 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | 2 µA @ 600 V | 600 V | 3A | - | 1.5 V @ 9 A |
|

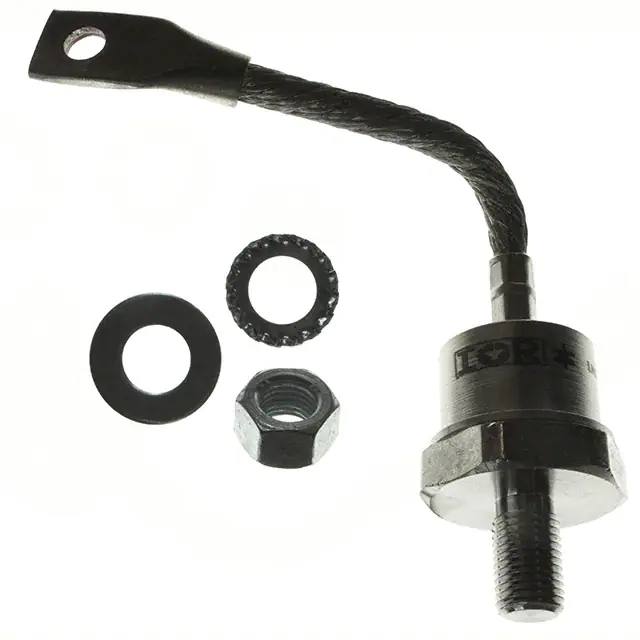

1N3290RDIODE GEN PURP 300V 100A DO205AA |
2,161 | $0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 24 mA @ 300 V | 300 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
S3KBTRDIODE GEN PURP 800V 3A SMB |
3,446 | $0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 800 V | 800 V | 3A | -65°C ~ 150°C | 1.2 V @ 3 A | |
|
|
JAN1N6941UTK3AS/TRDIODE POWER SCHOTTKY |
2,321 | $393.08 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 7500pF @ 5V, 1MHz | - | 5 mA @ 30 V | 30 V | 150A | -65°C ~ 175°C | 500 mV @ 50 A |
