| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N3208DO5 40 AMP SILICON RECTFIER |
2,313 | $2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 50 V | 50 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
R6201240XXOODIODE GP 1.2KV 400A DO200AA R62 |
3,816 | $68.34 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 9 µs | 50 mA @ 1200 V | 1200 V | 400A | - | 1.5 V @ 800 A | |
|
|
1N2155RDO5 40 AMP SILICON RECTFIER |
2,143 | $2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 100 V | 100 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
SB5200TADIODE SCHOTTKY 200V 5A DO201AD |
4,994 | $0.46 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 1.1 V @ 5 A | |
|
MSC030SDA070KDIODE SCHOTTKY 700V 30A TO220-2 |
176 | $5.90 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | - | 0 ns | - | 700 V | 30A (DC) | - | 1.5 V @ 30 A | |
|
CDBU40DIODE SCHOTTKY 40V 200MA 0603 |
30,449 | $0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA | 125°C (Max) | 1 V @ 40 mA | |
|
BYV27-100-TRDIODE AVALANCHE 100V 2A SOD57 |
37,811 | $0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 25 ns | 1 µA @ 100 V | 100 V | 2A | -55°C ~ 175°C | 1.07 V @ 3 A | |
|
|
1N3273DIODE GEN PURP 1KV 160A DO205 |
3,264 | $68.36 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 1000 V | 1000 V | 160A | -65°C ~ 175°C | - | |
|
CURB207-GDIODE GEN PURP 1KV 2A DO214AA |
46,701 | $0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 2A | 150°C (Max) | 1.7 V @ 2 A | |
|

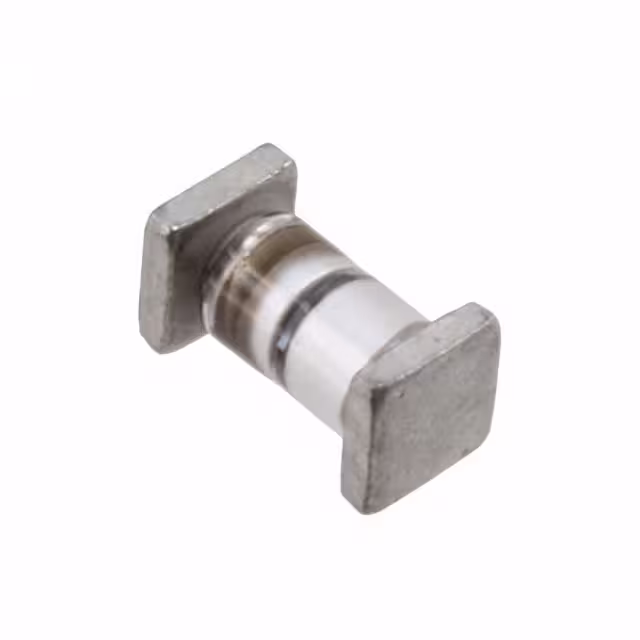

1N5616USDIODE GEN PURP 400V 1A D5A |
2,695 | $6.10 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
|
1N1197A20 AMP SILICON RECTIFIER DO-5 |
3,893 | $2.50 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 500 V | 500 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | |
|
|
1N3273RDIODE GEN PURP 1KV 160A DO205 |
3,673 | $68.36 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 1000 V | 1000 V | 160A | -65°C ~ 175°C | - | |
|
|
1N1434DO5 40 AMP SILICON RECTFIER |
2,685 | $2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 50 V | 50 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
|
1N4052DIODE GEN PURP 600V 275A DO205AB |
2,407 | $68.36 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 600 V | 600 V | 275A | -65°C ~ 190°C | - | |
|
|
1N2160DO5 40 AMP SILICON RECTFIER |
3,978 | $2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 600 V | 600 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
|
1N4052RDIODE GEN PURP 600V 275A DO205AB |
2,670 | $68.36 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 600 V | 600 V | 275A | -65°C ~ 190°C | - | |
|
|
JANTXV1N3671ARDIODE GEN PURP 800V 12A DO203AA |
3,416 | $68.43 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/260 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 5 µA @ 800 V | 800 V | 12A | -65°C ~ 150°C | 1.35 V @ 38 A |
|
CDSF4148DIODE GEN PURP 75V 150MA 1005 |
10,573 | $0.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 150mA | 125°C (Max) | 1 V @ 50 mA | |
|
|
BYV27-100-TAPDIODE AVALANCHE 100V 2A SOD57 |
13,841 | $0.77 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 25 ns | 1 µA @ 100 V | 100 V | 2A | -55°C ~ 175°C | 1.07 V @ 3 A | |
|
SMMSD701T1GDIODE SCHOTTKY 70V 200MA SOD123 |
11,716 | $0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 1pF @ 0V, 1MHz | - | 200 nA @ 35 V | 70 V | 200mA (DC) | -55°C ~ 125°C | 1 V @ 10 mA |
