| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR1BFast Rect., 100V, 1.00A, 150ns |
3,238 | $0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 150 ns | - | 100 V | 1A | - | - | |
|
JAN1N3893RECTIFIER |
3,027 | $247.50 |
RFQ |
Bulk | Military, MIL-PRF-19500/304 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 115pF @ 10V, 1MHz | 200 ns | 10 µA @ 400 V | 400 V | 12A | -65°C ~ 175°C | 1.5 V @ 38 A | |
|
|
1N1203RSTANDARD RECTIFIER |
3,823 | $30.35 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
1N5406RLGRECTIFIER DIODE, 3A, 600V |
3,815 | $0.09 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 600 V | 600 V | 3A | -65°C ~ 150°C | 1 V @ 3 A | |
|
|
FR1GFast Rect., 400V, 1.00A, 150ns |
3,402 | $0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 150 ns | - | 400 V | 1A | - | - | |
|
SBRT25M60SLP-13DIODE SBR 60V 25A POWERDI5060-8 |
3,992 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SBR® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Super Barrier | Obsolete | Surface Mount | - | - | 150 µA @ 60 V | 60 V | 25A | -55°C ~ 150°C | 600 mV @ 25 A |
|
|
1N1204STANDARD RECTIFIER |
3,541 | $30.35 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
1N2067RDO9 275 AMP SILICON RECTIFIER |
2,516 | $21.00 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 75 µA @ 900 V | 900 V | 275A | -65°C ~ 190°C | 1.3 V @ 300 A | |
|
S120-F1-0000HFDIODE SCHOTTKY 200V 1A SOD123FL |
3,497 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 900 mV @ 1 A | |
|
GL34KST Rect, 800V, 0.5A |
2,500 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 800 V | 800 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
|
1N1204BRSTANDARD RECTIFIER |
2,861 | $30.35 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|

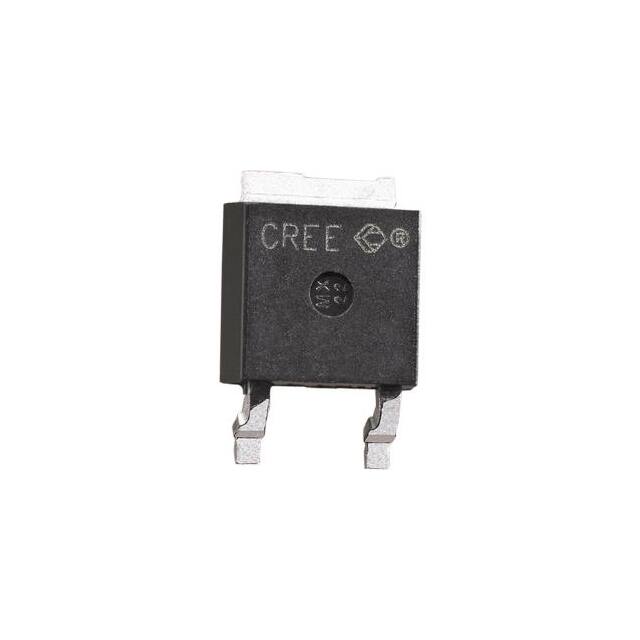

C3D08065E-TRZRECTM 8A, 650V SIC SCHOTTKY DIO |
2,602 | $2.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | Z-Rec® | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Surface Mount | 395pF @ 0V, 1MHz | 0 ns | 50 µA @ 650 V | 650 V | 25.5A (DC) | -55°C ~ 175°C | 1.8 V @ 8 A |
|
|
S115-F1-0000HFDIODE SCHOTTKY 150V 1A SOD123FL |
3,815 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 58pF @ 4V, 1MHz | - | 100 µA @ 150 V | 150 V | 1A | -55°C ~ 150°C | 900 mV @ 1 A | |
|
DZ540N22KHPSA1DIODE GEN PURP 2.2KV 732A MODULE |
3,464 | $249.41 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 40 mA @ 2200 V | 2200 V | 732A | -40°C ~ 150°C | 1.64 V @ 2200 A | |
|
|
1N1204CSTANDARD RECTIFIER |
2,493 | $30.35 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
H1M-F1-0000HFDIODE GEN PURP 1000V 1A SOD123FL |
3,021 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
BAS140WE6327BAS140 - HIGH SPEED SWITCHING, C |
3,516 | $0.09 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 100 ps | 1 µA @ 30 V | 40 V | 120mA (DC) | -55°C ~ 150°C | 1 V @ 40 mA | |
|
|
1N1204RSTANDARD RECTIFIER |
3,625 | $30.35 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
E1DF-F1-0000HFDIODE GEN PURP 200V 1A SMAF |
3,061 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
1N1205STANDARD RECTIFIER |
2,429 | $30.35 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - |
