| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N1438DO5 40 AMP SILICON RECTFIER |
2,666 | $2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 600 V | 600 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
R9G01818XXDIODE GP 1.8KV 1800A DO200AB |
2,398 | $237.27 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 150 mA @ 1800 V | 1800 V | 1800A | - | 1.2 V @ 1500 A | |
|
|
RA202036XXDIODE GP 2KV 3600A POWRDISC |
3,992 | $338.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 22 µs | 200 mA @ 2000 V | 2000 V | 3600A | - | 1.15 V @ 3000 A | |
|
B260AF-13DIODE SCHOTTKY 60V 2A SMAF |
2,766 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 200 µA @ 60 V | 60 V | 2A | -55°C ~ 150°C | 650 mV @ 2 A | |
|
1N3742DO9 275 AMP SILICON RECTIFIER |
3,852 | $21.00 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 75 µA @ 1000 V | 1000 V | 275A | -65°C ~ 190°C | 1.3 V @ 300 A | |
|
UF600KUF Rect, 800V, 6.00A, 100ns |
14,000 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 10 µA @ 800 V | 800 V | 6A | -50°C ~ 175°C | 1.7 V @ 5 A | |
|
|
1N1189DO5 35 AMP SILICON RECTFIER |
2,963 | $2.50 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 500 V | 500 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | |
|
|
R9G02012XXDIODE GEN PURP 2KV 1200A DO200AB |
3,261 | $237.27 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 150 mA @ 2000 V | 2000 V | 1200A | - | 1.45 V @ 1500 A | |
|

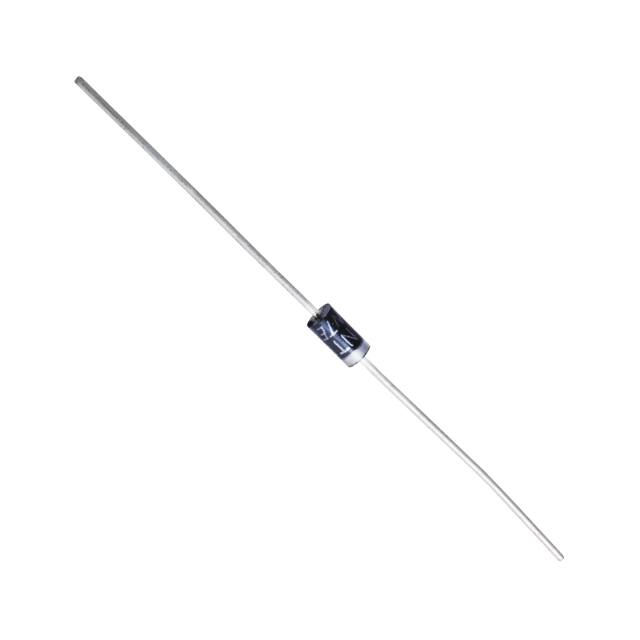

NTE125-1R-SI SEL TO 1300PRV |
3,416 | $0.00 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 600 V | 1000 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
1N3174DO9 240 AMP SILICON RECTIFIER |
3,295 | $21.00 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 75 µA @ 1000 V | 1000 V | 240A | -65°C ~ 200°C | 1.25 V @ 240 A | |
|
US3AUF Rect, 50V, 3.00A, 50ns |
12,000 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 3A | -50°C ~ 150°C | 1 V @ 3 A | |
|
|
1N3212DO5 40 AMP SILICON RECTFIER |
2,229 | $2.50 |
RFQ |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 400 V | 400 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||
|
VS-SD2500C25KDIODE GP 2.5KV 3000A DO200AC |
3,257 | $238.03 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 75 mA @ 2500 V | 2500 V | 3000A | - | 1.41 V @ 4000 A | |
|
|
JAN1N5309-1DIODE CURRENT REG 100V |
3,935 | $30.30 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/463 | RoHS | - | - | Active | Through Hole | - | - | - | - | - | - | - |
|
HER108G-D1-0000DIODE GEN PURP 1000V 1A DO41 |
2,880 | $0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 75 ns | 2.5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
1N3671ASTANDARD RECTIFIER |
2,592 | $30.35 |
RFQ |
Bulk | Military, MIL-PRF-19500/260 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 5 µA @ 800 V | 800 V | 12A | -65°C ~ 200°C | 1.35 V @ 38 A | |
|
SS1H20LW RVGDIODE SCHOTTKY 200V 1A SOD123W |
14,709 | $0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 nA @ 200 V | 200 V | 1A | -55°C ~ 175°C | 850 mV @ 1 A | |
|
|
SF14G-D1-0000DIODE GEN PURP 200V 1A DO41 |
2,324 | $0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 18pF @ 4V, 1MHz | 35 ns | 2.5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 950 mV @ 1 A | |
|
|
1N3672ASTANDARD RECTIFIER |
3,841 | $30.35 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 900 V | 12A | -65°C ~ 200°C | 1.2 V @ 30 A | ||
|
SS18A-F1-0000HFDIODE SCHOTTKY 80V 1A DO214AC |
2,232 | $0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 1A | -55°C ~ 150°C | 850 mV @ 1 A |
