| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCSF4DIODE GEN PURP 400V 120A |
2,850 | $488.78 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | 12 µA @ 400 V | 400 V | 120A | -55°C ~ 150°C | 1.35 V @ 100 A | |
|
|
1N3296ADIODE GEN PURP 1.2KV 100A DO205 |
3,296 | $39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 9 mA @ 1200 V | 1200 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
SCKV200K3DIODE GEN PURP 200V 2A AXIAL |
3,931 | $1742.88 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 2.5 µs | 1 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 250 V @ 100 mA | |
|
PMEG3005EGW,118RECTIFIER DIODE, SCHOTTKY, 30V |
3,768 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
MDD810-16N2DIODE DUAL 1600V 807A |
3,048 | $185.70 |
RFQ |
Box | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N1190RSTANDARD RECTIFIER |
3,936 | $65.15 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
SCSF4RDIODE GEN PURP 400V 120A |
2,536 | $488.78 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | 150 ns | 12 µA @ 400 V | 400 V | 120A | -55°C ~ 150°C | 1.35 V @ 100 A | |
|
|
1N3296ARDIODE GEN PURP REV 1.2KV DO205AA |
2,869 | $39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 9 mA @ 1200 V | 1200 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
D1131SH65TXPSA1DIODE GEN PURP 6.5KV 1100A |
2,740 | $1804.46 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 150 mA @ 6500 V | 6500 V | 1100A | 0°C ~ 140°C | 5.6 V @ 2500 A | |
|
|
PMEG2005EGW,115PMEG2005 - 20V, 0.5 A LOW VF MEG |
3,092 | $0.02 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
VS-SD800C24LDIODE GP 2.4KV 1180A DO200AB |
3,240 | $186.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 50 mA @ 2400 V | 2400 V | 1180A | - | 1.66 V @ 2000 A | |
|
|
1N1184ARSTANDARD RECTIFIER |
2,924 | $65.15 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|

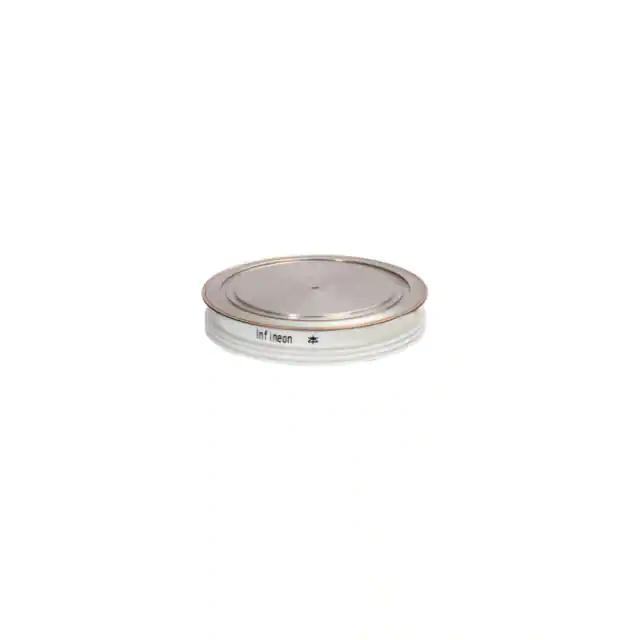

D1800N40TVFXPSA1DIODE GEN PURP 4KV 1800A |
2,901 | $496.51 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 4000 V | 4000 V | 1800A | -40°C ~ 160°C | 1.32 V @ 1500 A | |
|
BYX85TRDIODE AVALANCHE 800V 2A SOD57 |
2,907 | $0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | 20pF @ 4V, 1MHz | 4 µs | 1 µA @ 800 V | 800 V | 2A | -55°C ~ 175°C | 1 V @ 1 A | |
|

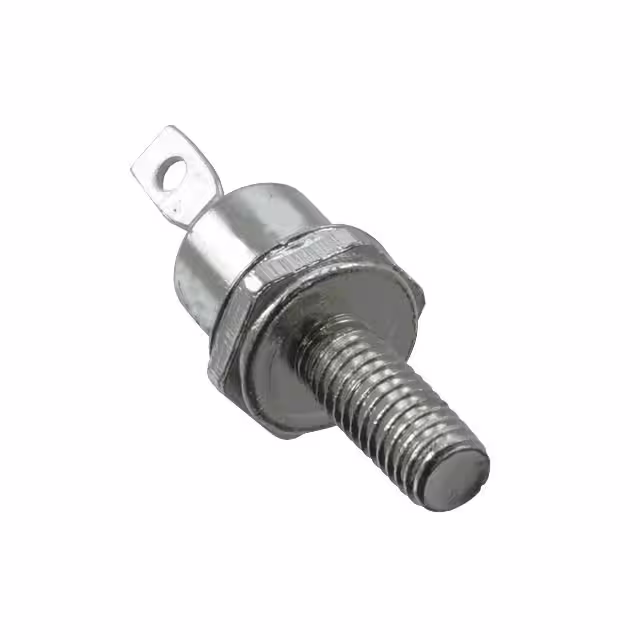

1N1199ARDIODE GEN PURP REV 50V 12A DO4 |
2,748 | $4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 50 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
.jpg)
|
FR6J-TPDIODE GEN PURP 600V 6A DO214AB |
3,000 | $0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 250 ns | 10 µA @ 600 V | 600 V | 6A | -55°C ~ 150°C | 1.3 V @ 6 A | |
|

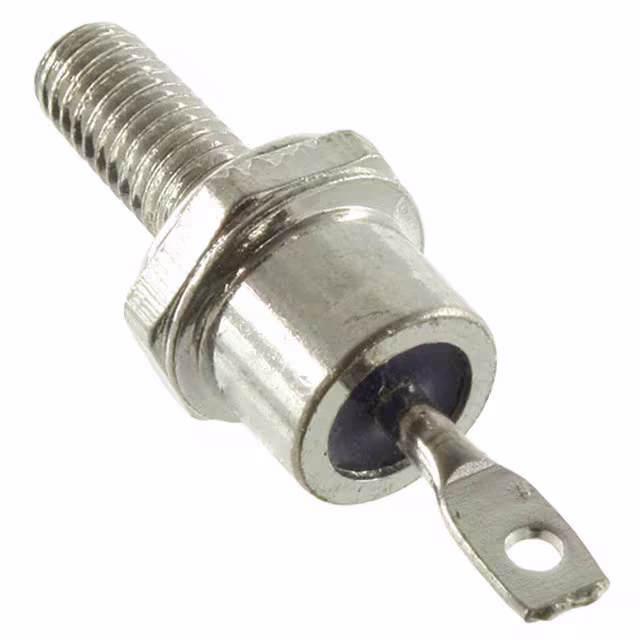

1N1206ADIODE GEN PURP 600V 12A DO4 |
3,019 | $4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
SS115LHR3GDIODE SCHOTTKY 150V 1A SUB SMA |
2,850 | $0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 150 V | 150 V | 1A | -55°C ~ 150°C | 900 mV @ 1 A |
|

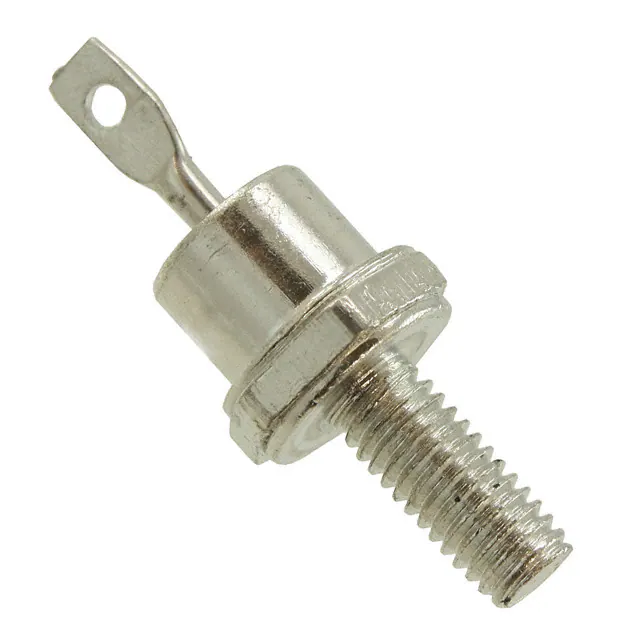

1N1206ARDIODE GEN PURP REV 600V 12A DO4 |
3,195 | $4.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 600 V | 12A | -65°C ~ 200°C | 1.1 V @ 12 A | |
|
|
SS19LHR3GDIODE SCHOTTKY 90V 1A SUB SMA |
3,422 | $0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 90 V | 90 V | 1A | -55°C ~ 150°C | 800 mV @ 1 A |
