| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSIC2SD170B10DIODE SIC SCHOTTKY 1700V 10A |
3,745 | $14.69 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 757pF @ 1V, 1MHz | 0 ns | 100 µA @ 1700 V | 1700 V | 31A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A | |
|
SS220B-HFDIODE SCHOTTKY 2A 200V SMB |
3,955 | $0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 300 µA @ 200 V | 200 V | 2A | -55°C ~ 125°C | 950 mV @ 2 A | |
|
BAS321/8FDIODE GEN PURP 200V 250MA SOD323 |
2,012 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 250mA (DC) | 150°C (Max) | 1.25 V @ 200 mA | |
~~2.jpg)
|
UH1PB-M3/85ADIODE GEN PURP 100V 1A DO220AA |
2,195 | $0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 16pF @ 4V, 1MHz | 40 ns | 1 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 1.05 V @ 1 A | |
|
FR306GTADIODE GPP 800V 3A DO201AD |
2,942 | $0.12 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 4V, 1MHz | 500 ns | 5 µA @ 560 V | 800 V | 3A | -65°C ~ 150°C | 1.3 V @ 3 A | |
|
VS-C40CP07L-M3DIODE SCHOTTKY 650V 20A TO220AC |
2,123 | $15.18 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1.04nF @ 1V, 1MHz | - | 100 µA @ 650 V | 650 V | 20A (DC) | -55°C ~ 175°C | 1.7 V @ 20 A | |
|
UF1005-E3/73DIODE GEN PURP 600V 1A DO204AL |
3,788 | $0.10 |
RFQ |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 75 ns | - | 600 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A | ||
|
1N5282TRDIODE GEN PURP 80V 200MA DO35 |
2,572 | $0.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2.5pF @ 0V, 1MHz | 4 ns | 100 nA @ 55 V | 80 V | 200mA | 175°C (Max) | 900 mV @ 100 mA | |
|
|
UH1PC-M3/85ADIODE GEN PURP 150V 1A DO220AA |
3,498 | $0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 16pF @ 4V, 1MHz | 40 ns | 1 µA @ 150 V | 150 V | 1A | -55°C ~ 175°C | 1.05 V @ 1 A | |
|
|
FR307GTADIODE GPP 1KV 3A DO201AD |
3,771 | $0.12 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 4V, 1MHz | 500 ns | 5 µA @ 700 V | 1000 V | 3A | -65°C ~ 150°C | 1.3 V @ 3 A | |
|

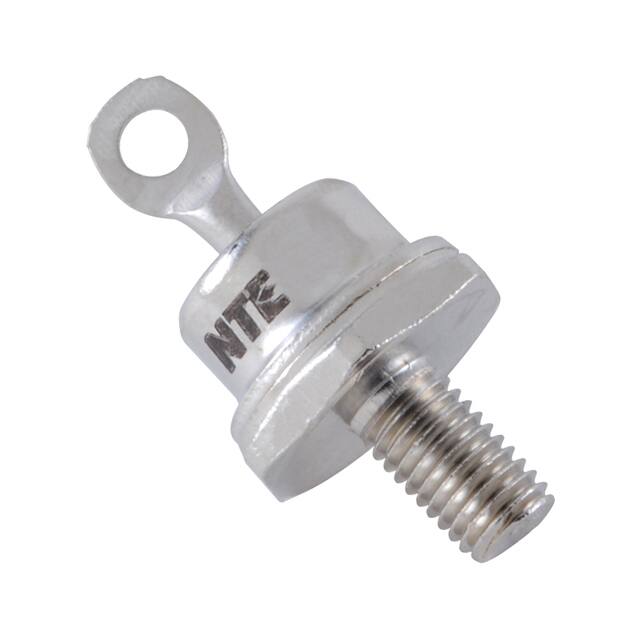

NTE6034R-400 PRV 60A CATH CASE |
2,827 | $15.60 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 mA @ 320 V | 320 V | 60A | -65°C ~ 175°C | 1.4 V @ 60 A | |
|
|
UF1006-E3/73DIODE GEN PURP 800V 1A DO204AL |
2,361 | $0.10 |
RFQ |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 800 V | 800 V | 1A | -40°C ~ 150°C | 1.7 V @ 1 A | ||
|
V2PM12LHM3/ISCHOTTKY RECTIFIER 2A 120V SMP |
2,492 | $0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 180pF @ 4V, 1MHz | - | 200 µA @ 120 V | 120 V | 1.8A (DC) | -40°C ~ 175°C | 620 mV @ 1 A |
|
|
S5MC-HFRECTIFIER GEN PURP 1000V 5A SMC |
3,377 | $0.12 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 5A | -55°C ~ 150°C | 1 V @ 5 A | ||
|
BAS16WH6327XTSA1DIODE GEN PURP 80V 250MA SOT323 |
660,000 | $0.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Not For New Designs | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 80 V | 250mA (DC) | 150°C (Max) | 1.25 V @ 150 mA | |
|
SF1JDF-13SUPERFAST RECOVERY RECTIFIER D-F |
3,408 | $0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
SCS220KGCDIODE SCHOTTKY 1.2KV 20A TO220AC |
3,629 | $15.63 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 1060pF @ 1V, 1MHz | 0 ns | 400 µA @ 1200 V | 1200 V | 20A (DC) | 175°C (Max) | 1.6 V @ 20 A | |
|
|
SE20PB-M3/85ADIODE GEN PURP 100V 1.6A DO220AA |
2,909 | $0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 13pF @ 4V, 1MHz | 1.2 µs | 5 µA @ 100 V | 100 V | 1.6A | -55°C ~ 175°C | 1.05 V @ 2 A | |
|
|
V2PM15LHM3/ISCHOTTKY RECTIFIER 2A 150V SMP |
2,320 | $0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 100 µA @ 150 V | 150 V | 1.7A (DC) | -40°C ~ 175°C | 760 mV @ 1 A |
|
|
S5GC-HFRECTIFIER GEN PURP 400V 5A SMC |
2,874 | $0.12 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 5A | -55°C ~ 150°C | 1 V @ 5 A |
