| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSEP29-12ADIODE GEN PURP 1.2KV 30A TO220AC |
2,946 | $3.13 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 250 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 2.75 V @ 30 A |
|
GER4007RECTIFIER DIODE, 1A, 1000V |
989 | $0.36 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 2 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.2 V @ 1 A | |
|
SICRD101200TRDIODE SCHOTTKY SILICON CARBIDE S |
2,983 | $4.98 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 640pF @ 0V, 1MHz | 0 ns | 100 µA @ 1200 V | 1200 V | 10A | -55°C ~ 175°C | 1.8 V @ 10 A | |
|
SD125SC150B.T2PIV 150V IO 15A CHIP SIZE 125MIL |
2,577 | $0.61 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 5V, 1MHz | - | 500 µA @ 150 V | 150 V | 15A | -55°C ~ 200°C | 890 mV @ 15 A | |
|
63SPB080ADIODE SCHOTTKY 80V 60A SPD-2A |
3,936 | $7.77 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1500pF @ 5V, 1MHz | - | 1 mA @ 80 V | 80 V | 60A | -55°C ~ 175°C | 870 mV @ 60 A | |
|
SBR20U50SLP-13DIODE SBR 50V 20A POWERDI5060-8 |
3,948 | $0.56 |
RFQ |
Datasheet |
Tape & Reel (TR) | SBR® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Super Barrier | Active | Surface Mount | 400pF @ 40V, 1MHz | 57 ns | 500 µA @ 50 V | 50 V | 20A | -55°C ~ 125°C | 520 mV @ 20 A |
|
1N5621US/TRRECTIFIER UFR,FRR |
3,931 | $7.43 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 12V, 1MHz | 300 ns | 500 nA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | ||
|
|
1N6641DIODE GEN PURPOSE |
3,813 | $6.60 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
JANTX1N5619DIODE GEN PURP 600V 1A AXIAL |
3,273 | $4.98 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
SD125SC200B.T2PIV 200V IO 15A CHIP SIZE 125MIL |
2,923 | $0.61 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 5V, 1MHz | - | 350 µA @ 200 V | 200 V | 15A | -55°C ~ 200°C | 920 mV @ 15 A | |
|
|
67SPB020ADIODE SCHOTTKY 20V 60A SPD-2A |
2,799 | $7.77 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 4050pF @ 5V, 1MHz | - | 6 mA @ 20 V | 20 V | 60A | -55°C ~ 150°C | 480 mV @ 60 A | |
|
VI20120SG-M3/4WDIODE SCHOTTKY 20A 120V TO-262AA |
3,225 | $0.56 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 250 µA @ 120 V | 120 V | 20A | -40°C ~ 150°C | 1.33 V @ 20 A | |
|
|
WND45P16WQSTANDARD POWER DIODE |
2,490 | $3.21 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 1600 V | 1600 V | 45A | 150°C | 1.4 V @ 45 A | |
|
JANTX1N5415/TRRECTIFIER UFR,FRR |
3,730 | $7.43 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|

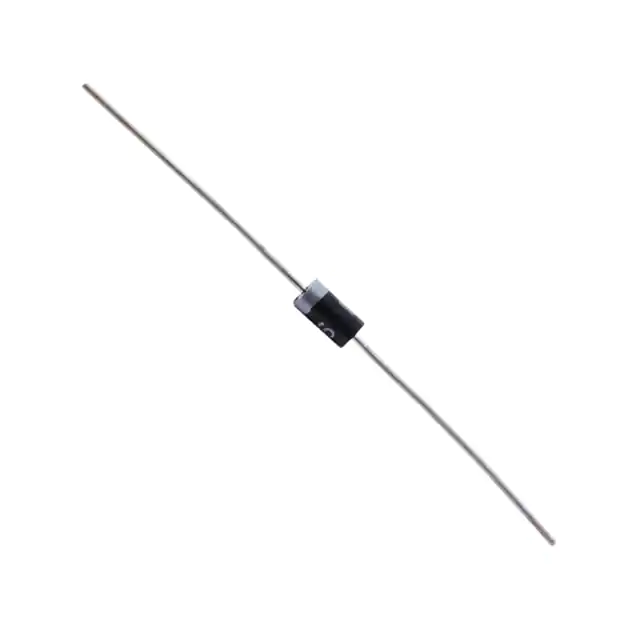

RGP15MR-1000V 1.5A FAST SW |
987 | $0.36 |
RFQ |
Datasheet |
Bag | RGP15 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | 1000 V | 1.5A | - | 1.3 V @ 1.5 A |
|
JANTXV1N3595A-1/TRSIGNAL/COMPUTER DIODE |
2,974 | $6.60 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 3 µs | 2 nA @ 125 V | 125 V | 150mA | -65°C ~ 175°C | 920 mV @ 100 mA | |
|
D8025LTPDIODE GEN PURP 800V 15.9A TO220 |
3,614 | $3.22 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 4 µs | 20 µA @ 800 V | 800 V | 15.9A | -40°C ~ 125°C | - | |
|
CDLL645/TRSIGNAL/COMPUTER DIODE |
3,678 | $4.98 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 nA @ 225 V | 225 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA | ||
|
|
SD125SCU100A.T2PIV 100V IO 15A CHIP SIZE 125MIL |
3,470 | $0.61 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 600pF @ 5V, 1MHz | - | 350 µA @ 100 V | 100 V | 15A | -55°C ~ 200°C | 840 mV @ 15 A | |
|
JANTXV1N3600ZENER DIODE |
2,315 | $7.78 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/231 | RoHS | Small Signal =< 200mA (Io), Any Speed | - | Active | Through Hole | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA | -65°C ~ 175°C | 1 V @ 200 mA |
