| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DKR400AB60DIODE MODULE 600V 400A |
3,080 | $51.80 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Standard | 600 V | 200A | 1.4 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 300 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
DAF160AA40DIODE MODULE 160A 400V |
2,972 | $51.95 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Anode | Standard | 400 V | 160A | 1.3 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
DCA100AA60DIODE MODULE 600V 100A |
3,619 | $54.08 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 600 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 100 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
|
DCA100BA60DIODE MODULE 600V 100A |
3,180 | $54.08 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 600 V | 100A | 1.55 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 100 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
BKA400AA10DIODE SCHOTTKY 100V 400A |
3,044 | $54.59 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 400A | 930 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 140 mA @ 100 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD160KB160DIODE MODULE 1600V 160A |
3,679 | $55.71 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 160A | 1.35 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
BKR400ABZ50DIODE SCHOTTKY 50V 400A |
3,261 | $57.93 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Schottky | 50 V | 200A | 730 mV @ 800 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 A @ 50 V | -40°C ~ 150°C | Chassis Mount |
|
|
BKR400AB10DIODE SCHOTTKY 100V 400A |
3,271 | $57.93 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 400A | 930 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 40 mA @ 100 V | -40°C ~ 150°C | Chassis Mount |
|
|
DKA200AA60DIODE MODULE 600V 200A |
2,572 | $61.81 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Standard | 600 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 100 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
|
DCA150BA65DIODE MODULE 650V 150A |
3,047 | $64.22 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 650 V | 150A | 1.7 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 150 mA @ 650 V | -40°C ~ 150°C | Chassis Mount |
|
|
DCA150AA60DIODE MODULE 600V 150A |
3,520 | $64.22 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 600 V | 150A | 1.3 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 150 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
DD200KB160DIODE MODULE 1600V 200A |
2,459 | $68.94 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.3 V @ 620 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
DKA300AA60DIODE MODULE 600V 300A |
3,733 | $69.52 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Standard | 600 V | 150A | 1.3 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 150 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD200KB80DIODE MODULE 800V 200A |
3,290 | $69.52 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 800 V | 200A | 1.3 V @ 620 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|

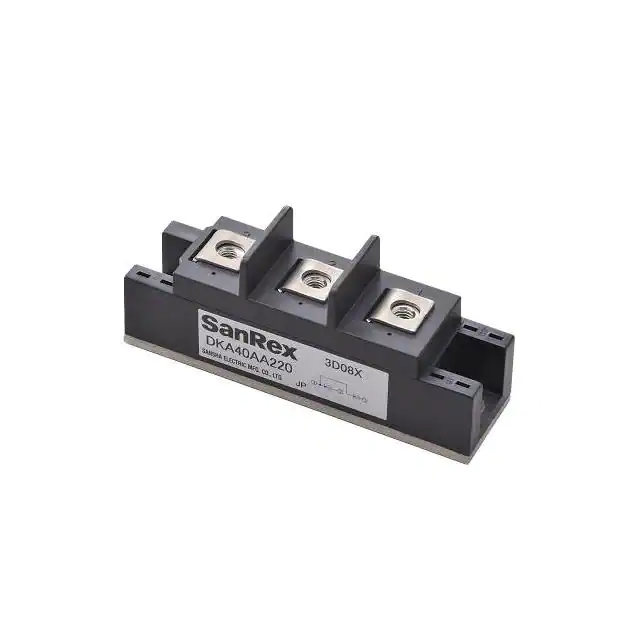

DKA40AA220DIODE MODULE 2200V 40A |
3,251 | $71.15 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Standard | 2200 V | 20A | 1.15 V @ 20 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 2200 V | -40°C ~ 150°C | Chassis Mount |
|
|
FRD100CA120DIODE MODULE 1200V 100A |
2,383 | $81.26 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 100A (DC) | 1.8 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 5 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD240KB80DIODE MODULE 800V 240A |
2,162 | $81.26 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 800 V | 240A | 1.35 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD240KB160DIODE MODULE 1600V 240A |
3,662 | $81.26 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 240A | 1.35 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
FDS100CA120DIODE MODULE 1200V 100A |
3,823 | $81.65 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1200 V | 100A | 1.8 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 5 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|

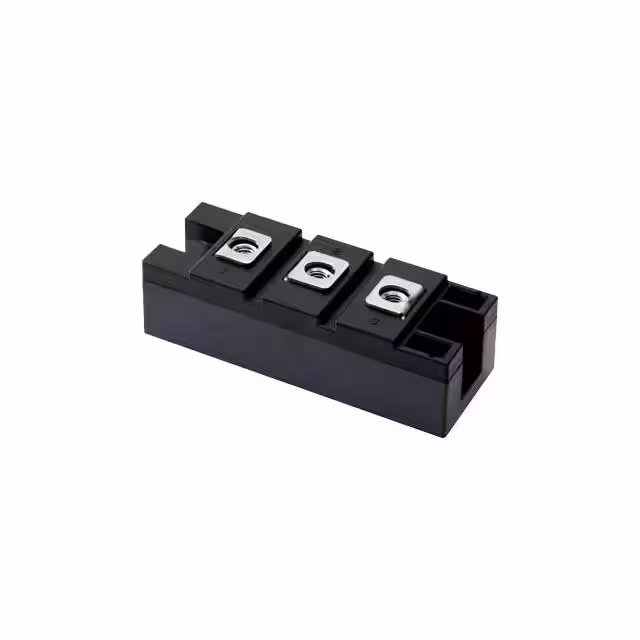

DCA200UA65DIODE MODULE 650V 200A |
2,132 | $90.71 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 650 V | 200A | 1.7 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 360 ns | 50 mA @ 650 V | -40°C ~ 150°C | Chassis Mount |
