| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUR40040CTRDIODE MODULE 400V 200A 2TOWER |
3,812 | $132.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 400 V | 200A | 1.3 V @ 125 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MUR40060CTDIODE MODULE 600V 200A 2TOWER |
3,810 | $132.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 600 V | 200A | 1.3 V @ 125 A | Fast Recovery =< 500ns, > 200mA (Io) | 180 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MUR40060CTRDIODE MODULE 600V 200A 2TOWER |
3,612 | $132.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 600 V | 200A | 1.3 V @ 125 A | Fast Recovery =< 500ns, > 200mA (Io) | 180 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
MURT40010DIODE MODULE 100V 200A 3TOWER |
2,630 | $132.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 100 V | 200A | 1.3 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 125 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT40010RDIODE MODULE 100V 200A 3TOWER |
2,317 | $132.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 100 V | 200A | 1.3 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 125 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT40020DIODE MODULE 200V 200A 3TOWER |
3,691 | $132.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 200 V | 200A | 1.3 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 125 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT40020RDIODE MODULE 200V 200A 3TOWER |
3,506 | $132.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 200 V | 200A | 1.3 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 125 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|

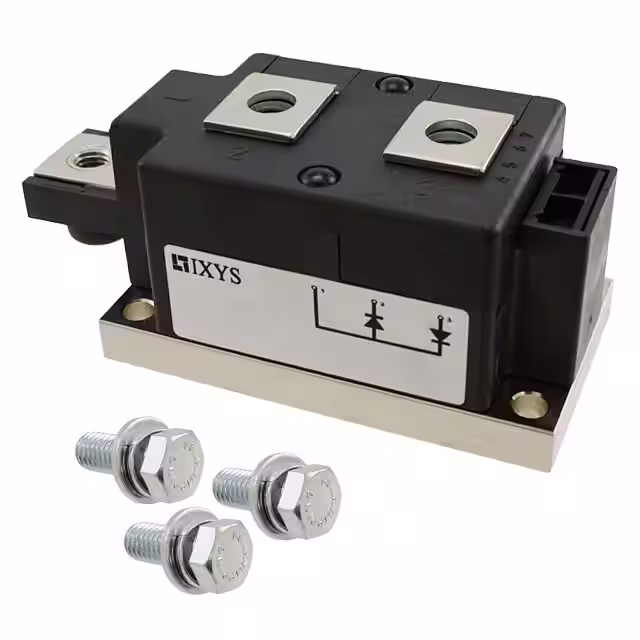

MDD255-12N1DIODE MODULE 1.2KV 270A Y1-CU |
2,459 | $132.50 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1200 V | - | Chassis Mount |
|
|
MDMA425P1600PTSFBIPOLAR MODULE - DIODE SIMBUS F- |
3,773 | $133.17 |
RFQ |
Box | MDMA425P1600PTSF | Active | - | Standard | 1600 V | 425A | - | - | - | - | - | Chassis Mount | |
|
F1827CCD600DIODE MODULE 600V 25A |
2,375 | $144.71 |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | 1 Pair Common Cathode | Standard | 600 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
MDD310-20N1DIODE MODULE 2KV 305A Y2-DCB |
3,491 | $134.16 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2000 V | - | Chassis Mount |
|
|
F1827RD1400DIODE MODULE 1.4KV 25A |
2,136 | $134.28 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | 1 Pair Series Connection | Standard | 1400 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
APTDF400AA100GDIODE MODULE 1KV 500A SP6 |
2,205 | $134.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1000 V | 500A | 2.7 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | - | Chassis Mount |
|
|
APTDF400AK100GDIODE MODULE 1KV 500A SP6 |
2,616 | $134.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1000 V | 500A | 2.7 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | - | Chassis Mount |
|
|
APTDF400KK100GDIODE MODULE 1KV 500A SP6 |
2,467 | $134.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1000 V | 500A | 2.7 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | - | Chassis Mount |
|
|
F1842RD1200DIODE MODULE 1.2KV 40A |
3,541 | $147.83 |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | 1 Pair Series Connection | Standard | 1200 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
F1892RD1000DIODE MODULE 1KV 90A |
2,486 | $138.66 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | 1 Pair Series Connection | Standard | 1000 V | 90A (DC) | 1.4 V @ 270 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
F1827CAD1600DIODE MODULE 1.6KV 25A |
3,815 | $150.51 |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | 1 Pair Common Anode | Standard | 1600 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
F1827CCD1600DIODE MODULE 1.6KV 25A |
3,616 | $150.51 |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | 1 Pair Common Cathode | Standard | 1600 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
F1827RD1600DIODE MODULE 1.6KV 25A |
3,229 | $150.51 |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | 1 Pair Series Connection | Standard | 1600 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
