| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD18200S-DKM2MMDIODE MODULE GP 1800V 200A S3 |
2,525 | $79.15 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1800 V | 200A | 1.5 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
2950064DIODE MODULE 1.3KV 700MA |
3,376 | $80.37 |
RFQ |
Datasheet |
Bulk | - | Active | 7 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -55°C ~ 150°C | DIN Rail/Channel |
|
CD611016BDIODE MODULE 1KV 160A POW-R-BLOK |
3,307 | $81.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1000 V | - | Chassis Mount |
|
|
CD611216BDIODE MODULE 1.2KV 160A POWRBLOK |
2,404 | $81.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | - | Chassis Mount |
|
|
CD611416BDIODE MODULE 1.4KV 160A POWRBLOK |
2,100 | $81.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1400 V | - | Chassis Mount |
|
400CNQ045DIODE ARRAY SCHOTTKY 45V PRM4 |
3,159 | $81.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|
DDB6U104N16RRBOSA1DIODE MODULE GP 1600V 25A |
3,345 | $88.27 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | 3 Independent | Standard | 1600 V | 25A (DC) | 1.3 V @ 1600 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
MEK600-04DADIODE MODULE 400V 880A Y4-M6 |
3,288 | $88.93 |
RFQ |
Datasheet |
Bulk | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 400 V | 880A | 1.4 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 220 ns | 6 mA @ 400 V | - | Chassis Mount |
|

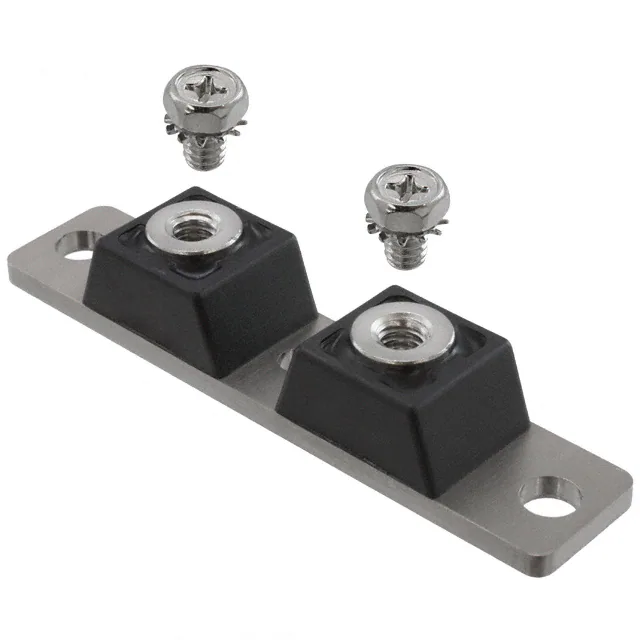

MBR20030CTDIODE MODULE 30V 200A 2TOWER |
2,138 | $90.14 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|

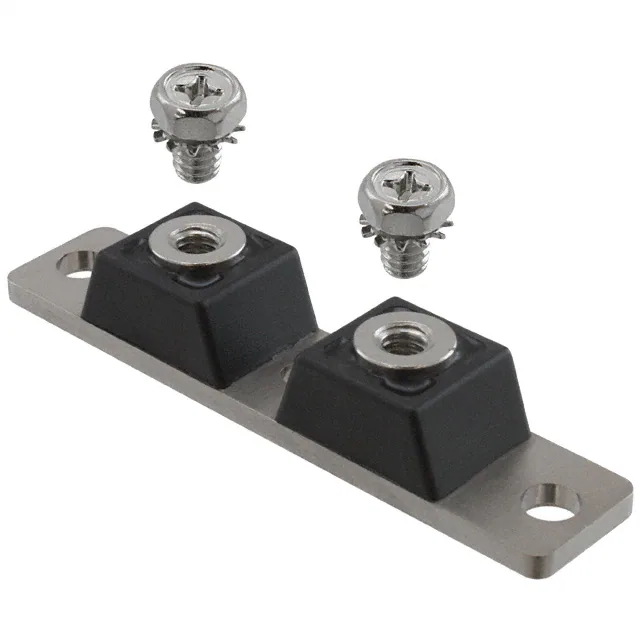

MBR20030CTRDIODE MODULE 30V 200A 2TOWER |
2,828 | $90.14 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR200100CTDIODE MODULE 100V 200A 2TOWER |
3,727 | $90.14 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | Chassis Mount |
|
|
406CNQ200DIODE ARRAY SCHOTTKY 200V PRM4 |
3,493 | $81.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | - | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|
403CNQ100DIODE ARRAY SCHOTTKY 100V PRM4 |
3,187 | $81.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 830 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|

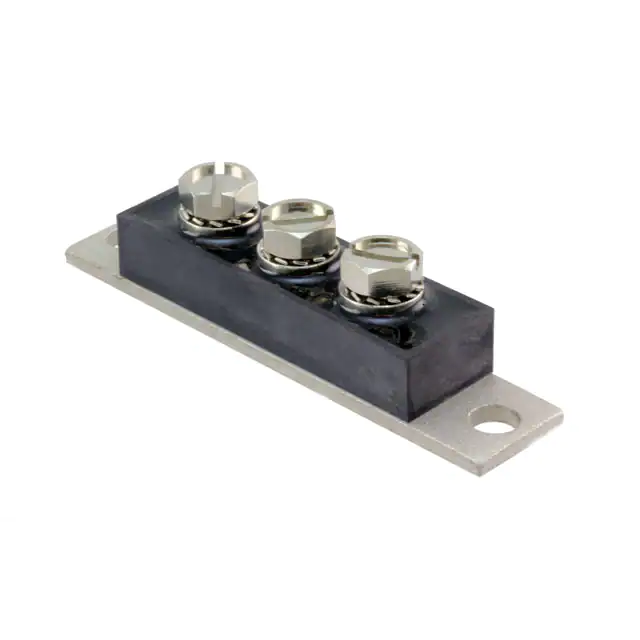

401CMQ045DIODE ARRAY SCHOTTKY 45V PRM4 |
2,864 | $81.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|
|
408CMQ060DIODE ARRAY SCHOTTKY 60V PRM4 |
3,838 | $81.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 680 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.2 mA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
M5060THA1600DIODE GEN PURP 600V 60A MODULE |
2,148 | $82.09 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 600 V | 60A | 1.35 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
M5060CC1600DIODE MODULE 1.6KV 60A |
3,560 | $87.91 |
RFQ |
Datasheet |
Bulk,Box | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 60A (DC) | 1.35 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
MDD200-18N1DIODE MODULE 1.8KV 224A Y4-M6 |
3,357 | $83.79 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 224A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | - | Chassis Mount |
|
MSRT200100ADDIODE GEN 1KV 200A 3 TOWER |
2,103 | $84.40 |
RFQ |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -55°C ~ 150°C | Chassis Mount | |
|
|
MSRT200120ADDIODE GEN 1.2KV 200A 3 TOWER |
2,447 | $84.40 |
RFQ |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | -55°C ~ 150°C | Chassis Mount |
