| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSRTA40080ADIODE MODULE 800V 400A 3TOWER |
2,775 | $64.35 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 800 V | 400A (DC) | 1.2 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 600 V | -55°C ~ 150°C | Chassis Mount |
|
FST10020DIODE MODULE 20V 100A TO249AB |
2,171 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 20 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | Chassis Mount |
|
|
FST10030DIODE MODULE 30V 100A TO249AB |
2,530 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | Chassis Mount |
|
|
FST10035DIODE MODULE 35V 100A TO249AB |
2,136 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10040DIODE MODULE 40V 100A TO249AB |
3,092 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10045DIODE MODULE 45V 100A TO249AB |
3,052 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10060DIODE MODULE 60V 100A TO249AB |
3,984 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10080DIODE MODULE 80V 100A TO249AB |
2,763 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 100A | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST100150DIODE SCHOTTKY 150V 50A TO249AB |
3,862 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 50A | 880 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 155°C | Chassis Mount |
|
|
FST100200DIODE SCHOTTKY 200V 50A TO249AB |
3,020 | $65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 50A | 920 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | Chassis Mount |
|
R704ASTD RECTIFIER |
3,517 | $66.56 |
RFQ |
Bulk | - | Active | 1 Pair Common Anode | Standard | 400 V | 15A | 1.4 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 1 mA @ 400 V | -65°C ~ 150°C | Through Hole | |
|
VS-VSKC196/12PBFDIODE GEN 1.2KV 97.5A INTAPAK |
2,522 | $66.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKC236/12PBFDIODE GEN 1.2KV 115A INTAPAK |
2,060 | $66.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKD196/12PBFDIODE GEN 1.2KV 97.5A INTAPAK |
2,735 | $66.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD236/12PBFDIODE GEN 1.2KV 115A INTAPAK |
3,494 | $66.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC236/16PBFDIODE GEN 1.6KV 115A INTAPAK |
3,264 | $67.25 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKD196/16PBFDIODE GEN 1.6KV 97.5A INTAPAK |
3,841 | $67.36 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

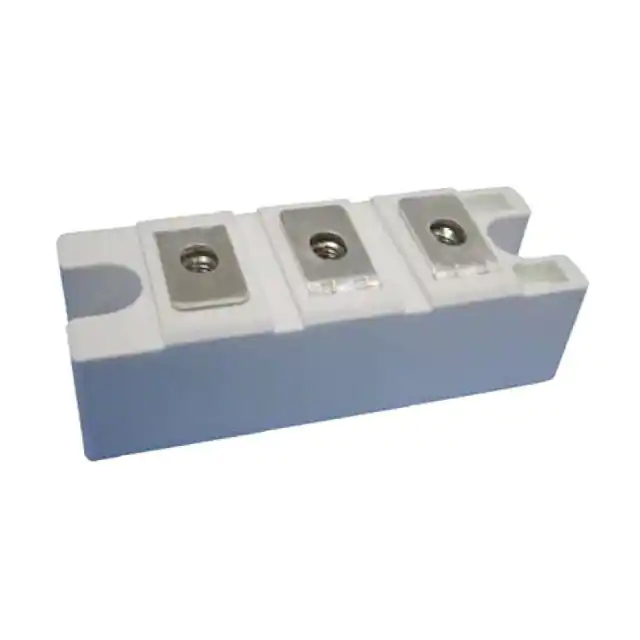

MF200C12F2-BPDIODE MODULE GP 200A F2 |
3,411 | $67.84 |
RFQ |
Bulk | - | Active | 1 Pair Series Connection | Standard | - | 200A | 2.8 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 1 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount | |
|
|
SBT6045CPOWER SCHOTTKY |
3,531 | $68.16 |
RFQ |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.2 mA @ 45 V | -65°C ~ 175°C | Through Hole | |
|
|
SBT6040CPOWER SCHOTTKY |
3,424 | $68.16 |
RFQ |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.2 mA @ 40 V | -65°C ~ 175°C | Through Hole |
