| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GC2X5MPS12-247SIC DIODE 1200V 10A TO-247-3 |
3,493 | $5.37 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 27A (DC) | 1.8 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 4 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
DSP25-16AT-TRLPOWER DIODE DISCRETES-RECTIFIER |
3,770 | $5.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | DSP25-16AT | Active | 1 Pair Series Connection | Standard | 1600 V | 25A | 1.23 V @ 25 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 1600 V | -40°C ~ 175°C | Surface Mount |
|
DSSK40-006BDIODE ARRAY SCHOTTKY 60V TO247AD |
2,742 | $5.44 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 60 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
DSSK60-0045BDIODE ARRAY SCHOTTKY 45V TO247AD |
3,764 | $5.44 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 45 V | 30A | 500 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
VS-60CPU04-N3DIODE ARRAY GP 400V 30A TO247AC |
2,372 | $5.50 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 400 V | 30A | 1.3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | 10 µA @ 400 V | -65°C ~ 175°C | Through Hole |
|
LXS201-23-2/TRSI SCHOTTKY NON HERMETIC PLASTIC |
2,550 | $5.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | Schottky | 3 V | - | 350 mV @ 1 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 nA @ 1 V | -55°C ~ 125°C | Surface Mount |
|
STTH60AC06CWLDIODE UFAST 600V TO247 |
2,712 | $5.54 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.75 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 10 µA @ 600 V | 175°C (Max) | Through Hole |
|
|
DSP45-12AZ-TRLPOWER DIODE DISCRETES-RECTIFIER |
3,631 | $5.54 |
RFQ |
Tape & Reel (TR) | DSP | Active | 1 Pair Series Connection | Standard | 1200 V | 45A | 1.26 V @ 45 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 1200 V | -40°C ~ 175°C | Surface Mount | |
|
DSEC59-06BCDIODE ARRAY 600V 30A ISOPLUS220 |
2,507 | $5.71 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 2.51 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 250 µA @ 600 V | -40°C ~ 175°C | Through Hole |
.jpg)
|
DMA50P1200HRDIODE RECTIFIER 1.2KV 50A TO247 |
3,643 | $5.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1200 V | 50A | 1.31 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
DSP25-16AT-TUBDIODE ARRAY GP 1600V 28A TO268AA |
2,692 | $6.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1600 V | 28A | 1.6 V @ 55 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 mA @ 1600 V | -40°C ~ 180°C | Surface Mount |
|
|
DSP25-12AT-TUBDIODE ARRAY GP 1200V 28A TO268AA |
2,530 | $6.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Standard | 1200 V | 28A | 1.6 V @ 55 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 mA @ 1200 V | -40°C ~ 180°C | Surface Mount |
|

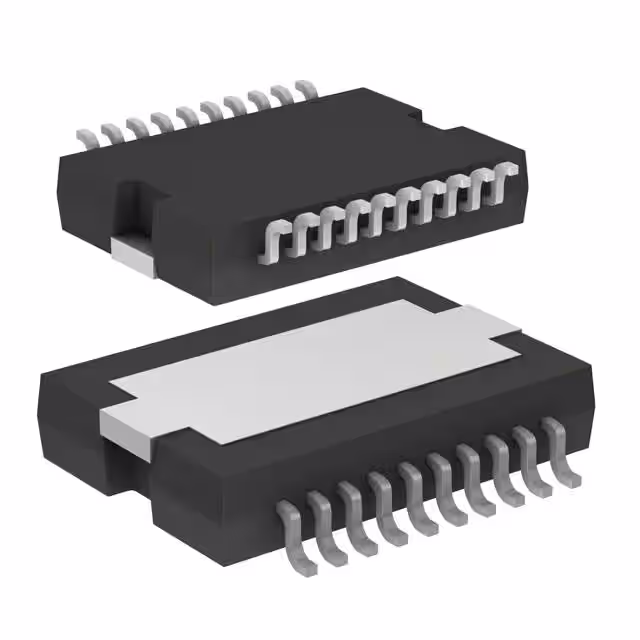

STPS30H60CKY-TRDIODE ARRAY SCHOTTKY 60V POWERSO |
2,574 | $6.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 580 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 60 V | -40°C ~ 150°C | Surface Mount |
|
|
NXPSC20650W-AQSILICON CARBIDE POWER DIODE |
3,280 | $6.15 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 20A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | 175°C (Max) | Through Hole |
|
DUR6030WTDIODE RECTIFIER 30A 300V TO247AD |
2,680 | $6.25 |
RFQ |
Datasheet |
Tube | DUR | Active | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 5 µA @ 300 V | -55°C ~ 150°C | Through Hole |
|
DPG60C300HJDIODE ARRAY 300V 30A ISOPLUS147 |
3,557 | $6.31 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.26 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | Through Hole |
|
|
DSEE29-12CCDIODE ARRAY 600V 30A ISOPLUS220 |
3,747 | $6.73 |
RFQ |
Datasheet |
Tube | HiPerDynFRED™ | Active | 1 Pair Series Connection | Standard | 600 V | 30A | 1.62 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 500 µA @ 600 V | -55°C ~ 175°C | Through Hole |
|
APT60DQ100LCTGDIODE ARRAY GP 1000V 60A TO264 |
2,063 | $6.77 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 1000 V | 60A | 3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 255 ns | 100 µA @ 1000 V | -55°C ~ 175°C | Through Hole |
|
|
DSIK45-16ARDIODE ARRAY 1600V 45A ISOPLUS247 |
3,074 | $7.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 45A | 1.22 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 3 mA @ 1600 V | -40°C ~ 175°C | Through Hole |
|
|
WNSC2D401200CW6QDUAL SILICON CARBIDE SCHOTTKY DI |
3,183 | $8.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 40A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 2000 V | 175°C | Through Hole |
