| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD100MYN18DIODE MODULE PHASE LEG D+D 1.8KV |
2,332 | $56.50 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 100A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1.8 kV | -40°C ~ 150°C | Chassis Mount |
|
PD100MYN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,549 | $63.56 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | 1.35 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1.6 kV | -40°C ~ 150°C | Chassis Mount |
;;.jpg)
|
206CMQ200DIODE SCHOTTKY 200V 100A PRM4 |
2,188 | $64.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 100A | 860 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|
|
300CMQ040DIODE SCHOTTKY 40V 150A PRM4 |
3,747 | $68.79 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 150A | 610 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 40 V | -55°C ~ 150°C | Chassis Mount |
;;.jpg)
|
301CNQ045DIODE SCHOTTKY 45V 150A PRM4 |
3,091 | $68.79 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 150A | 690 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
|

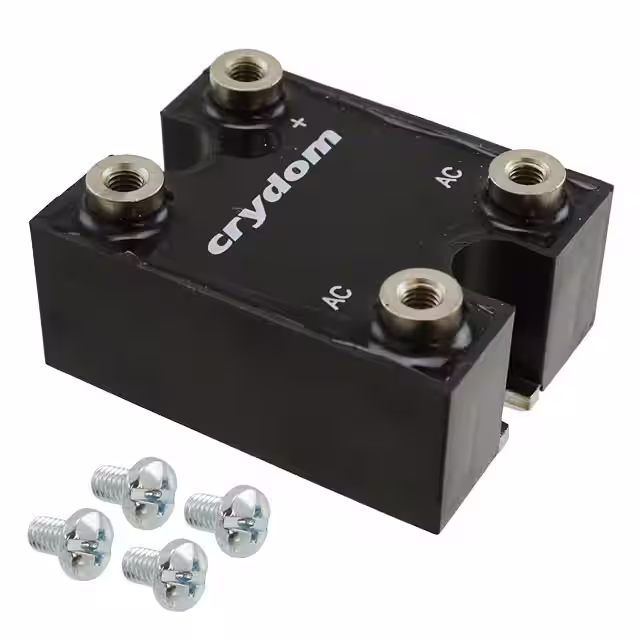

M5060CC1200DIODE MODULE 1.2KV 60A |
2,211 | $71.53 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 60A (DC) | 1.35 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
406CMQ200DIODE ARRAY SCHOTTKY 200V PRM4 |
3,129 | $79.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | - | 990 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|
401CNQ045DIODE ARRAY SCHOTTKY 45V PRM4 |
3,531 | $79.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
|
|
400CMQ045DIODE ARRAY SCHOTTKY 45V PRM4 |
2,890 | $79.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|
|
409DMQ150DIODE ARRAY SCHOTTKY 150V PRM4 |
3,785 | $79.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 150 V | - | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
PD200MYN16DIODE MODULE PHASE LEG D+D 1.6KV |
2,292 | $82.92 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.5 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1.6 kV | -40°C ~ 150°C | Chassis Mount |
|

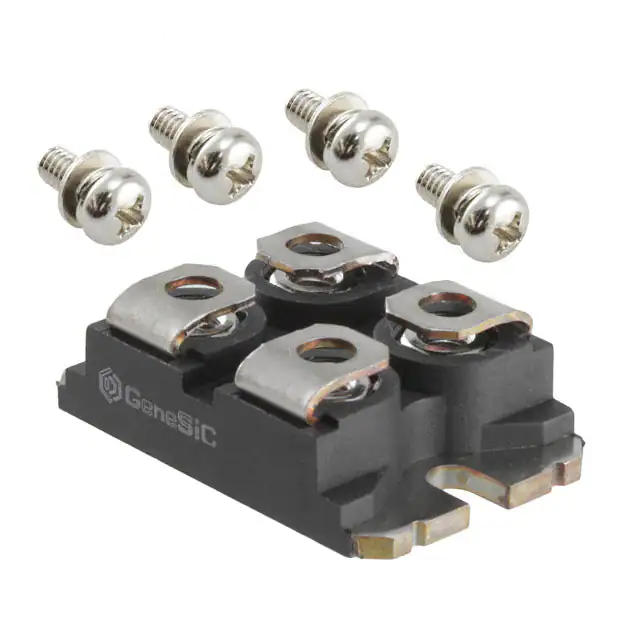

GC2X100MPS06-227DIODE MOD SCHOT 650V 209A SOT227 |
2,105 | $84.82 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | Active | 2 Independent | Silicon Carbide Schottky | 650 V | 209A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 650 V | -55°C ~ 175°C | Chassis Mount |
|

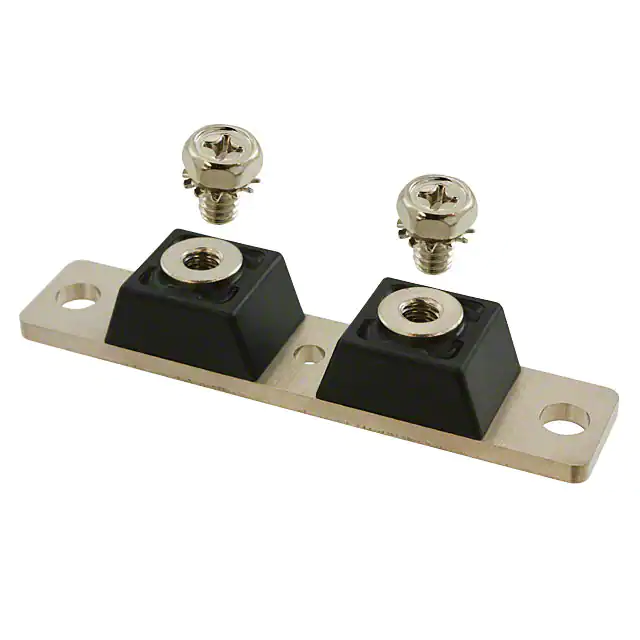

MBR400100CTRDIODE MODULE 100V 200A 2TOWER |
2,656 | $102.96 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 100 V | 200A | 840 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
F1842CAD400DIODE MODULE 400V 40A |
2,595 | $115.47 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | 1 Pair Common Anode | Standard | 400 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
F1842CAD600DIODE MODULE 600V 40A |
2,607 | $120.08 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | 1 Pair Common Anode | Standard | 600 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
F1842CCD400DIODE MODULE 400V 40A |
3,067 | $120.08 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | 1 Pair Common Cathode | Standard | 400 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
|
F1827CCD400DIODE MODULE 400V 25A |
3,648 | $133.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 25A (DC) | 1.55 V @ 75 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
MDMA380P1600KCDIODE MODULE 1.6KV 380A |
3,927 | $153.17 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 380A | 1.07 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | - | Chassis Mount |
|
F1892RD1200DIODE MODULE 1.2KV 90A |
3,514 | $161.88 |
RFQ |
Datasheet |
Bulk,Box | - | Active | 1 Pair Series Connection | Standard | 1200 V | 90A (DC) | 1.4 V @ 270 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | Chassis Mount |
|
VS-303CNQ100PBFDIODE ARRAY SCHOTTKY 100V TO244 |
2,688 | $54.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 150A | 1.09 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 100 V | 175°C (Max) | Chassis Mount |
