| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MURH840CTGDIODE ARRAY GP 400V 4A TO220AB |
2,353 | $2.06 |
RFQ |
Datasheet |
Tube | MEGAHERTZ™ | Active | 1 Pair Common Cathode | Standard | 400 V | 4A | 2.2 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 28 ns | 10 µA @ 400 V | -65°C ~ 175°C | Through Hole |
|
MBRB20100CTGDIODE ARRAY SCHOTTKY 100V D2PAK |
3,847 | $1.00 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Last Time Buy | 1 Pair Common Cathode | Schottky | 100 V | 10A | 850 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | Surface Mount |
|
|
MBR2535CTLGDIODE ARRAY SCHOTTKY 35V TO220AB |
2,174 | $1.00 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Active | 1 Pair Common Cathode | Schottky | 35 V | 12.5A | 470 mV @ 12.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -65°C ~ 150°C | Through Hole |
|
|
MBR20200CTGDIODE ARRAY SCHOTTKY 200V TO220 |
3,328 | $1.00 |
RFQ |
Bulk,Tube | SWITCHMODE™ | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -65°C ~ 175°C | Through Hole | |
|
|
MBR60H100CTGDIODE ARRAY SCHOTTKY 100V TO220 |
2,793 | $2.66 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | 175°C (Max) | Through Hole |
|
STPS60150CTDIODE ARRAY SCHOTTKY 150V TO220 |
2,120 | $3.09 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 30A | 940 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 µA @ 150 V | 175°C (Max) | Through Hole |
|
STPS40H100CWDIODE ARRAY SCHOTTKY 100V TO247 |
2,614 | $3.11 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 730 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | 175°C (Max) | Through Hole |
|
|
STPS60170CTDIODE ARRAY SCHOTTKY 170V TO220 |
2,711 | $3.56 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 170 V | 30A | 940 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 35 µA @ 170 V | 175°C (Max) | Through Hole |
|
APT30S20BCTGDIODE ARRAY SCHOTTKY 200V TO247 |
3,715 | $4.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 45A | 850 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 500 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
STPS80150CWDIODE ARRAY SCHOTTKY 150V TO247 |
2,439 | $5.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 40A | 840 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 30 µA @ 150 V | 175°C (Max) | Through Hole |
|
GP3D020A065USIC SCHOTTKY DIODE 650V TO247-3 |
3,050 | $6.62 |
RFQ |
Datasheet |
Tube | Amp+™ | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 10A | 1.6 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 25 µA @ 650 V | -55°C ~ 175°C | Through Hole |
|
|
STPS80170CWDIODE ARRAY SCHOTTKY 170V TO247 |
3,935 | $6.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 170 V | 40A | 840 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 80 µA @ 170 V | 175°C (Max) | Through Hole |
|

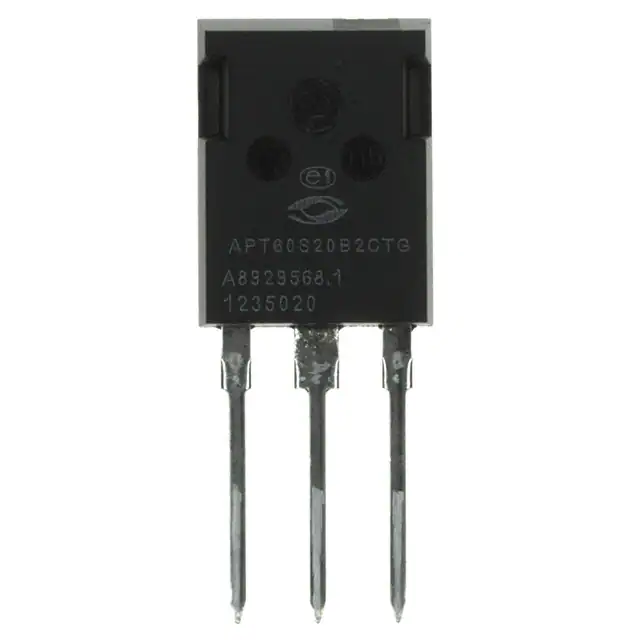

APT60S20B2CTGDIODE ARRAY SCHOTTKY 200V TMAX |
2,525 | $7.97 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 75A | 900 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 1 mA @ 200 V | -55°C ~ 150°C | Through Hole |
|
DSEE30-12ADIODE ARRAY GP 1200V 30A TO247AD |
2,819 | $12.61 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | Active | 1 Pair Series Connection | Standard | 1200 V | 30A | 2.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 200 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
SCS240AE2HRC11DIODE SCHOTTKY 650V TO-247AC |
2,522 | $14.10 |
RFQ |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 20A (DC) | 1.55 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 600 V | 175°C | Through Hole | |
|
DSEI2X31-12BDIODE MODULE 1.2KV 28A SOT227B |
2,153 | $20.41 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 1200 V | 28A | 2.55 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 750 µA @ 1200 V | - | Chassis Mount |
|
|
DSEI2X61-10BDIODE MODULE 1KV 60A SOT227B |
3,198 | $21.23 |
RFQ |
Datasheet |
Tube | FRED | Active | 2 Independent | Standard | 1000 V | 60A | 2.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 3 mA @ 1000 V | - | Chassis Mount |
|
APT2X31S20JDIODE MODULE 200V 45A ISOTOP |
3,530 | $21.44 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 200 V | 45A | 850 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 500 µA @ 200 V | - | Chassis Mount |
|
STPS80H100TVDIODE MODULE 100V 40A ISOTOP |
2,059 | $21.51 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 100 V | 40A | 780 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 100 V | 150°C (Max) | Chassis Mount |
|
VS-QA250FA20DIODE MOD SCHOT 200V 250A SOT227 |
3,702 | $21.70 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Schottky | 200 V | 250A | 1.2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 54 ns | 90 µA @ 200 V | -55°C ~ 175°C | Chassis Mount |
