| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR30200WTDIODE ARRAY SCHOTTKY 200V TO247 |
134 | $2.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | - | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | Through Hole |
|
STPS40SM120CRDIODE ARRAY SCHOTTKY 120V I2PAK |
985 | $2.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 830 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 275 µA @ 120 V | 150°C (Max) | Through Hole |
_418D-01.jpg)
|
MBRB41H100CT-1GDIODE ARRAY SCHOTTKY 100V I2PAK |
271 | $2.10 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | 175°C (Max) | Through Hole |
|
RF2001NS3DFHTLFAST RECOVERY DIODES (CORRESPOND |
889 | $2.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 300 V | 20A | 1.3 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 300 V | 150°C (Max) | Surface Mount |
|
|
MBR30150WTDIODE ARRAY SCHOTTKY 150V TO247 |
232 | $2.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
V60DM60C-M3/IDIODE ARRAY SCHOTTKY 60V TO263AC |
2,560 | $2.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 60 V | 30A | 710 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.1 mA @ 60 V | -40°C ~ 175°C | Surface Mount |
|
|
RBR40NS60AFHTLDIODE ARRAY SCHOTT 60V 40A LPDS |
573 | $2.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 60 V | 150°C (Max) | Surface Mount |
|
STPS2545CTYDIODE ARRAY SCHOTTKY 45V TO220AB |
969 | $2.14 |
RFQ |
Datasheet |
Tube | Q Automotive | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 12.5A | 570 mV @ 12.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 125 µA @ 45 V | -40°C ~ 175°C | Through Hole |
|
|
RB228NS-40FHTLDIODE ARRAY SCHOTT 40V 30A LPDS |
969 | $2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 40 V | 30A | 770 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 40 V | 150°C (Max) | Surface Mount |
|
|
RB228NS-60FHTLDIODE ARRAY SCHOTT 60V 30A LPDS |
707 | $2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 30A | 830 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 60 V | 150°C (Max) | Surface Mount |
|
RB215T-90DIODE ARRAY SCHOTTKY 90V TO220FN |
574 | $2.17 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | 1 Pair Common Cathode | Schottky | 90 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 µA @ 90 V | 150°C (Max) | Through Hole |
|

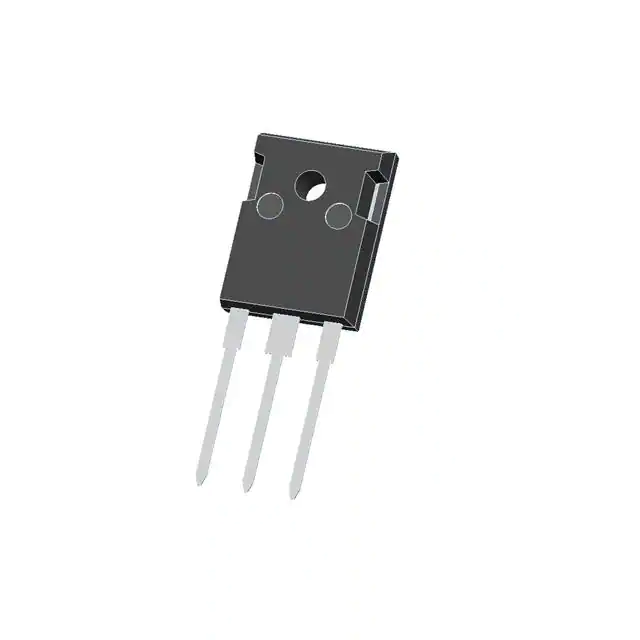

MBR60200WTSCHOTTKY RECTIFIER 200V 40A TO-2 |
282 | $2.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 30A | 900 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -55°C ~ 175°C | Through Hole |
|
STPS20170CG-TRDIODE ARRAY SCHOTTKY 170V D2PAK |
3,133 | $2.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 170 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 µA @ 170 V | 175°C (Max) | Surface Mount |
|
NTSB30U100CTGDIODE SCHOTTKY 30A 100V D2PAK |
306 | $2.19 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 800 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 675 µA @ 100 V | -40°C ~ 150°C | Surface Mount |
|
SBR3045SCTB-13DIODE ARRAY SBR 45V 15A D2PAK |
3,836 | $0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SBR® | Obsolete | 1 Pair Common Cathode | Super Barrier | 45 V | 15A | 700 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | - | Surface Mount |
|
|
SBR3045SCTBDIODE ARRAY SBR 45V 15A D2PAK |
165 | $2.21 |
RFQ |
Datasheet |
Tube,Tube | SBR® | Obsolete | 1 Pair Common Cathode | Super Barrier | 45 V | 15A | 650 mV @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 175°C | Surface Mount |
|
|
FERD40U45CG-TRDIODE ARRAY 45V 20A D2PAK |
795 | $2.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | FERD (Field Effect Rectifier Diode) | 45 V | 20A | 460 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.8 mA @ 45 V | 175°C (Max) | Surface Mount |
|
DURF2040CTDIODE RECTIFIER 10A 400V ITO220A |
425 | $2.22 |
RFQ |
Datasheet |
Tube | DUR | Active | 1 Pair Common Cathode | Standard | 400 V | 10A | 1.3 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 400 V | -55°C ~ 150°C | Through Hole |
|
|
STPS40SM100CTDIODE ARRAY SCHOTTKY 100V TO220 |
2,701 | $2.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 810 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 45 µA @ 100 V | 150°C (Max) | Through Hole |
|
|
RB238NS-60TLSUPER LOW IR, 60V, 40A, TO-263S |
975 | $2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 860 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 12 µA @ 12 µA | 150°C | Surface Mount |
