| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSC2X51SDA070JSIC SBD 700 V 50 A DUAL PARALLEL |
3,749 | $49.15 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 700 V | 50A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 700 V | -55°C ~ 175°C | Chassis Mount |
|
163CMQ100DIODE ARRAY SCHOTTKY 100V TO249 |
3,619 | $51.87 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 980 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
VS-203CNQ100PBFDIODE SCHOTTKY 100V 100A TO244 |
3,888 | $54.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 100A | 860 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|

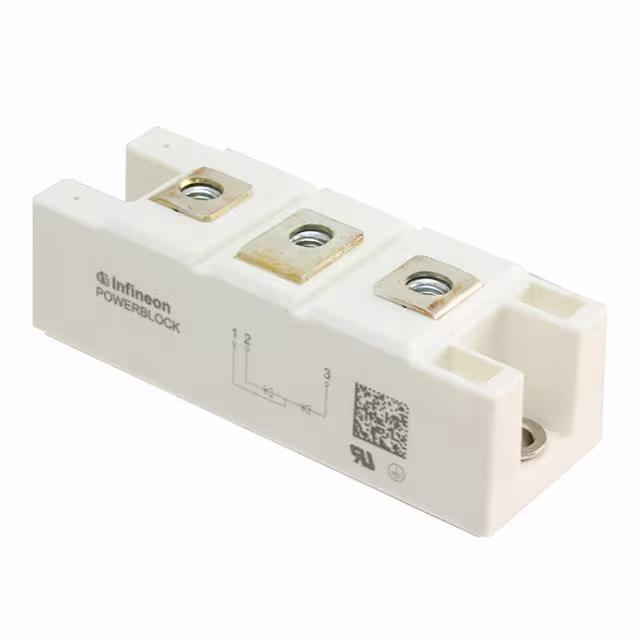

DD170N16SHPSA1BRIDGE RECT 1P 1.6KV 165A PB34SB |
3,328 | $55.46 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 165A | - | - | - | 9 mA @ 1600 V | 135°C (Max) | Chassis Mount |
|
VS-409CNQ150PBFDIODE MODULE 150V 400A TO244 |
2,358 | $58.47 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 400A | 1.46 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | - | Chassis Mount |
|
|
MSC2X50SDA120JSIC SBD 1200 V 50 A DUAL ANTI-PA |
2,682 | $63.34 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 50A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
MSC2X51SDA120JSIC SBD 1200 V 50 A DUAL PARALLE |
2,447 | $63.34 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 50A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
MSCDC150A120D1PAGPM-DIODE-SIC-SBD-D1P |
2,532 | $203.83 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1200 V | 150A (DC) | 1.8 V @ 150 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
|
MSCDC200KK120D1PAGPM-DIODE-SIC-SBD-D1P |
3,626 | $248.98 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 200A (DC) | 1.8 V @ 200 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
|
MSCDC200A120D1PAGPM-DIODE-SIC-SBD-D1P |
3,470 | $248.98 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 1200 V | 200A (DC) | 1.8 V @ 200 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
|
MSCDC300A70AGPM-DIODE-SIC-SBD-SP6C |
2,237 | $309.97 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Series Connection | Silicon Carbide Schottky | 700 V | 300A (DC) | 1.8 V @ 300 A | No Recovery Time > 500mA (Io) | 0 ns | - | -40°C ~ 175°C | Chassis Mount |
|
DD260N16KHPSA1DIODE MODULE GP 1600V 260A |
2,536 | $179.46 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 260A | 1.32 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
DD350N16KHPSA1DIODE MODULE GP 1600V 350A |
3,605 | $199.15 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 350A | 1.28 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

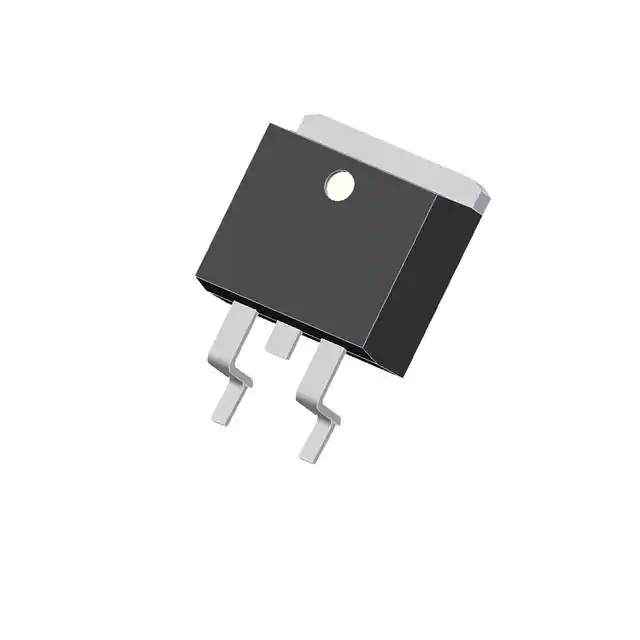

12CTQ035S12A, 35V, D2PAK, SCHOTTKY RECTIF |
800 | $0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 6A | 600 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 35 V | -55°C ~ 175°C | Surface Mount |
|
MBRB2090CT20A, 90V, D2PAK, SCHOTTKY RECTIF |
800 | $0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 90 V | - | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 90 V | -55°C ~ 150°C | Surface Mount |
|
|
20CTQ035S20A, 35V, D2PAK, SCHOTTKY RECTIF |
800 | $1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | Surface Mount |
|
MBRF2060CTPDIODE ARRAY SCHOTTKY 60V ITO220 |
396 | $0.77 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 800 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | Through Hole |
|
VS-MURB1020CT-1-M3DIODE ARRAY GP 200V 5A TO262 |
975 | $0.81 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 5A | 1.25 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -65°C ~ 175°C | Through Hole |
|
15CTQ03515A, 35V, TO-220AB, SCHOTTKY REC |
2,690 | $0.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 15A | 840 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | Through Hole |
|
|

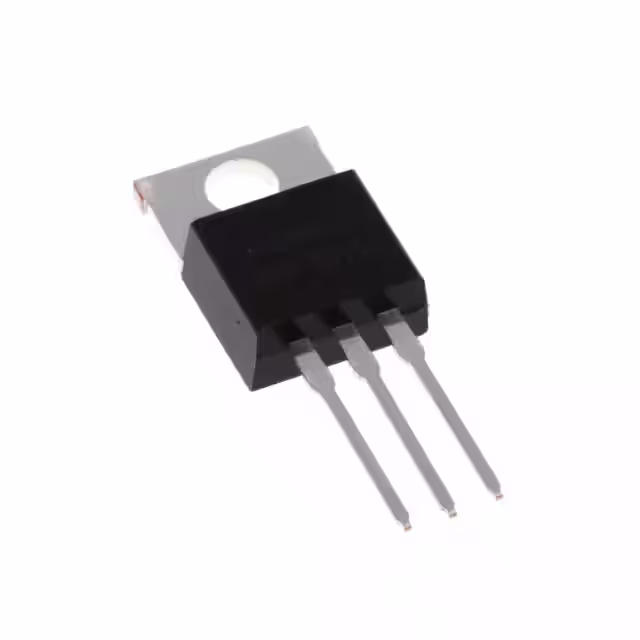

15CTQ04015A, 40V, TO-220AB, SCHOTTKY REC |
988 | $0.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 15A | 840 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | -55°C ~ 150°C | Through Hole |
