| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;.jpg)
|
208CMQ060DIODE SCHOTTKY 60V 100A PRM4 |
3,818 | $64.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 680 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
GHXS100B120S-D3SIC SBD PARALLEL POWER MODULE 12 |
3,397 | $82.31 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Silicon Carbide Schottky | 1200 V | 198A (DC) | 1.7 V @ 100 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
2952790DIODE MODULE 1KV 1.5A |
2,883 | $104.06 |
RFQ |
Datasheet |
Bulk | - | Active | 4 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | DIN Rail/Channel |
|

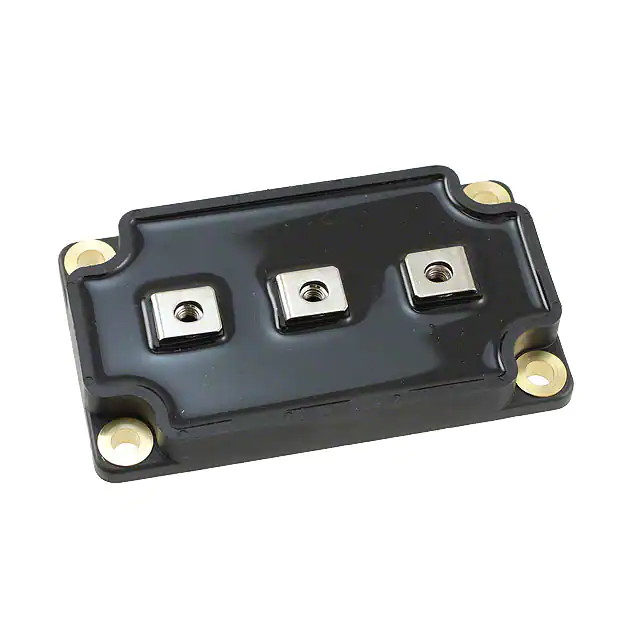

APTDF400KK20GDIODE MODULE 200V 500A SP6 |
2,230 | $130.99 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 200 V | 500A | 1.1 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 750 µA @ 200 V | - | Chassis Mount |
|
2949389DIODE MODULE 1KV 1.5A |
3,518 | $135.03 |
RFQ |
Datasheet |
Bulk | - | Active | 8 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | DIN Rail |
|
2320160DIODE MODULE 48V 20A DIN RAIL |
2,615 | $278.29 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 48 V | 20A (DC) | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - |
|
2954785DIODE MODULE 1.3KV 200MA |
2,954 | $328.65 |
RFQ |
Datasheet |
Bulk | - | Active | 16 Pair Common Cathode | Standard | 1300 V | 200mA | - | Small Signal =< 200mA (Io), Any Speed | - | - | -20°C ~ 50°C | DIN Rail/Channel |
|
BAT120S,115DIODE ARRAY SCHOTTKY 25V SOT223 |
681 | $0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 25 V | 1A (DC) | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 25 V | 125°C (Max) | Surface Mount |
|
DD600N16KHPSA3DIODE MODULE GP 1600V 600A |
3,307 | $319.46 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 600A | 1.32 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
SDURF1030CTDIODE ARRAY GP 300V ITO220AB |
238 | $0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 300 V | - | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 300 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF10150CTDIODE ARRAY SCHOTTKY 150V ITO220 |
3,864 | $0.65 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 930 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | Through Hole |
|
BYQ28E-200,127DIODE ARRAY GP 200V 10A TO220AB |
894 | $0.76 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 200 V | 10A | 1.25 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 200 V | 150°C (Max) | Through Hole |
|
10CTQ15010A, 150V, TO-220AB, SCHOTTKY |
484 | $0.77 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 5A | 930 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
MBRF20200CTDIODE ARRAY SCHOTTKY 200V ITO220 |
995 | $0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | - | 950 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 175°C | Through Hole |
|
|
MBR20150CTDIODE ARRAY SCHOTTKY 150V TO220 |
533 | $0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF20100CTDIODE ARRAY SCHOTTKY 100V ITO220 |
407 | $0.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 800 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Through Hole |
|
SBR30A60CTB-13DIODE ARRAY SBR 60V 15A D2PAK |
810 | $1.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 15A | 630 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -65°C ~ 150°C | Surface Mount |
|
SDT40A100CTFPDIODE ARRAY SCHOTT 100V ITO220AB |
350 | $0.91 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 720 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
SDT30A100CTDIODE SCHOTTKY 100V 15A TO220AB |
495 | $0.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 730 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SBR20100CTDIODE SCHOTTKY 100V TO220AB |
324 | $0.95 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Through Hole |
