| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

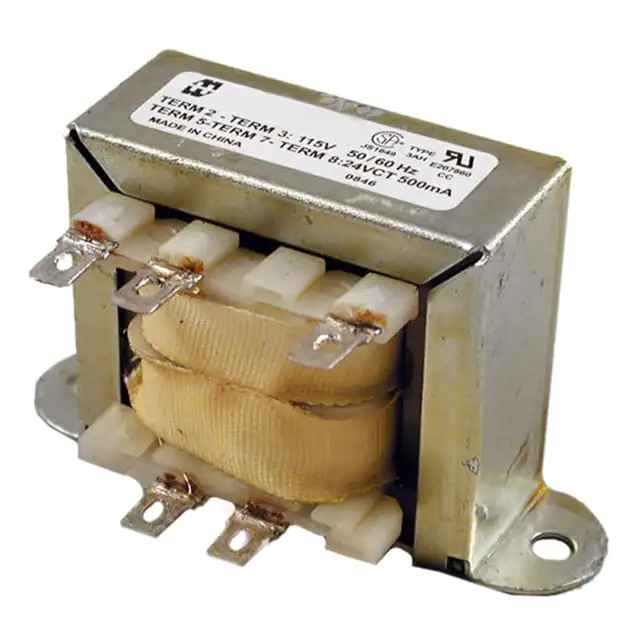

186B24PWR XFMR LAMINATED 6VA CHAS MT |
2,130 | $16.06 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 24V | 250mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|

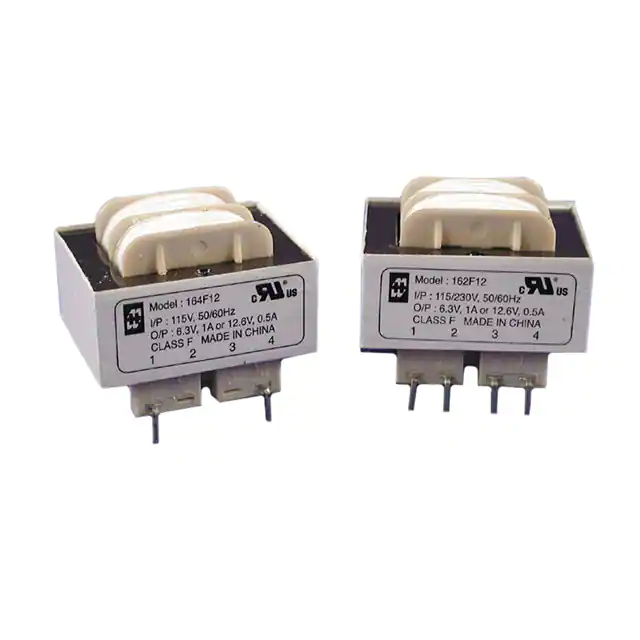

164G36PWR XFMR LAMINATED 12VA TH |
598 | $16.63 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
FS12-090-C2PWR XFMR LAMINATED 1.1VA TH |
5,472 | $5.13 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 4200Vrms |
|
|
FS20-055-C2PWR XFMR LAMINATED 1.1VA TH |
6,615 | $5.13 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 4200Vrms |
|
F16-150-C2PWR XFMR LAMINATED 2.5VA TH |
715 | $5.33 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|
|
F12-200-C2PWR XFMR LAMINATED 2.5VA TH |
391 | $5.33 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
|
F28-085-C2PWR XFMR LAMINATED 2.4VA TH |
137 | $5.33 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|

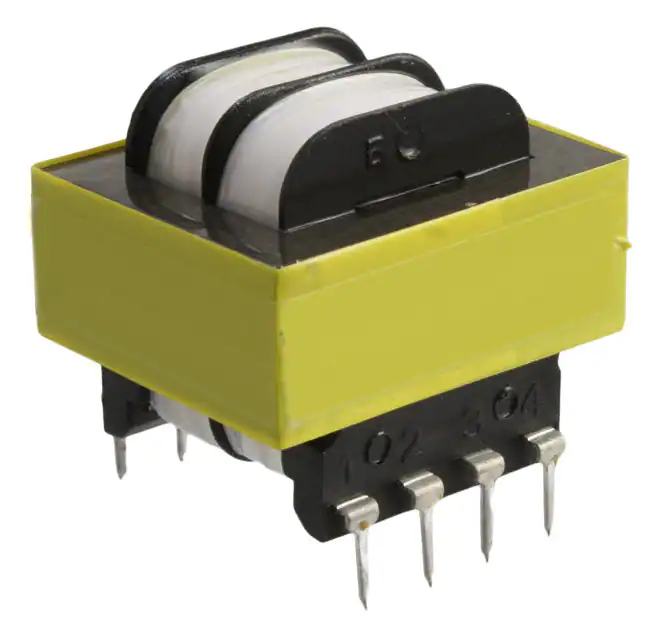

3FD-324PWR XFMR LAMINATED 2.4VA TH |
2,515 | $5.61 |
RFQ |
Datasheet |
Tube | 3FD-3xx | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms |
|
|
3FD-312PWR XFMR LAMINATED 2.4VA TH |
1,073 | $5.61 |
RFQ |
Datasheet |
Tube | 3FD-3xx | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms |
|

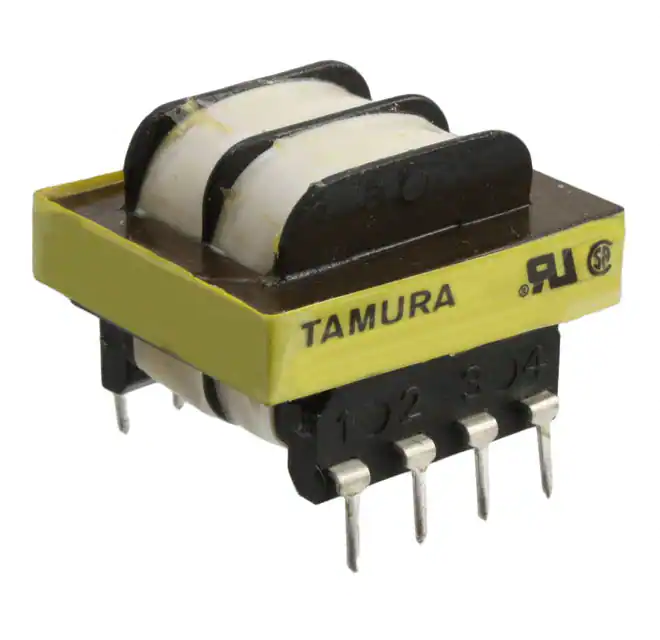

3FD-212PWR XFMR LAMINATED 1.1VA TH |
641 | $5.62 |
RFQ |
Datasheet |
Tube | 3FD-2xx | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 38.00mm | 2500Vrms |
|
|
FS20-120-C2PWR XFMR LAMINATED 2.4VA TH |
34,214 | $5.83 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|
|
FS24-100-C2PWR XFMR LAMINATED 2.4VA TH |
14,833 | $5.83 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|
|
FS12-200-C2PWR XFMR LAMINATED 2.4VA TH |
2,260 | $5.83 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|

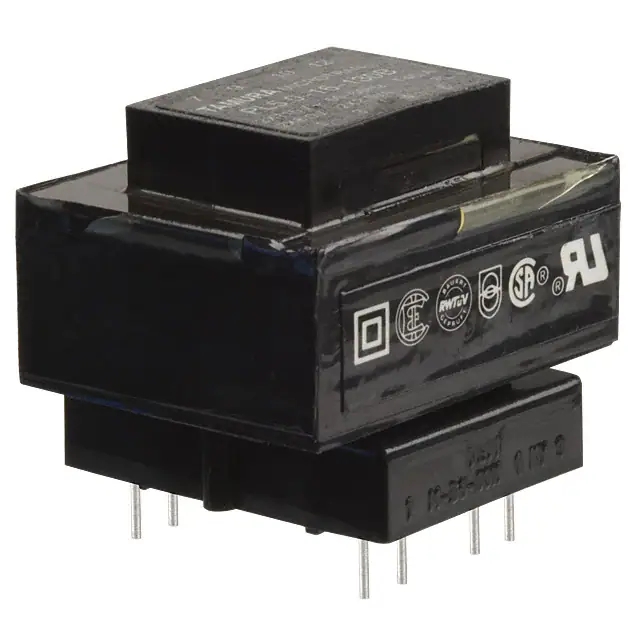

PL5.0-24-130BPWR XFMR LAMINATED 5VA TH |
3,763 | $8.05 |
RFQ |
Datasheet |
Tube | PL5.0-xx-130B | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 420mA, Series 210mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms |
|

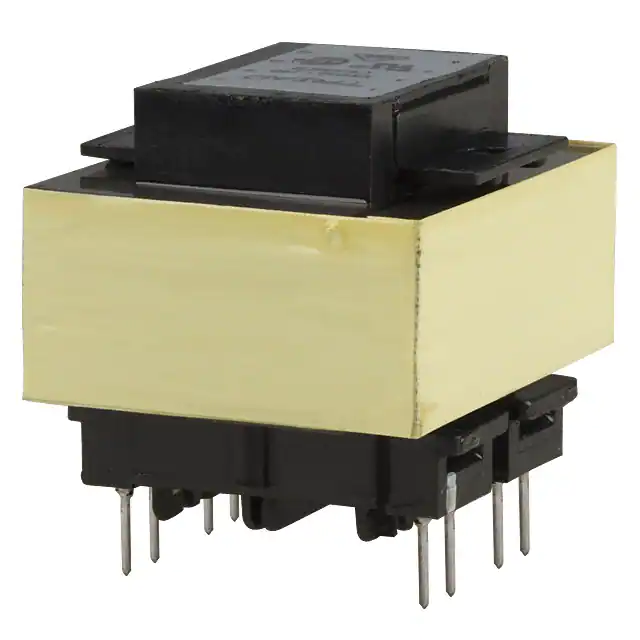

VPP24-100PWR XFMR LAMINATED 2.5VA TH |
2,169 | $8.82 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms |
|

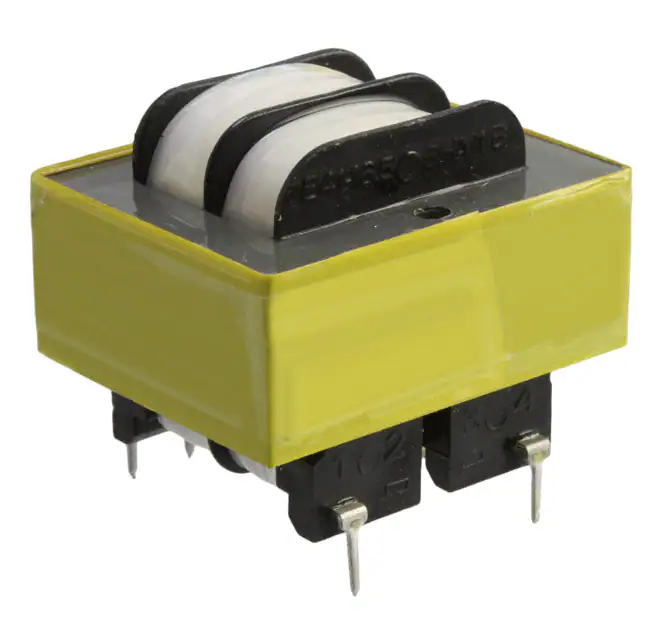

3FS-424PWR XFMR LAMINATED 6VA TH |
1,263 | $9.13 |
RFQ |
Datasheet |
Tube | 3FS-4xx | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 34.55mm | 2500Vrms |
|
|
F24-250-C2PWR XFMR LAMINATED 6VA TH |
14,460 | $9.30 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
VPP20-250PWR XFMR LAMINATED 5VA TH |
6,321 | $9.37 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 500mA, Series 250mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
|
|
VPP24-210PWR XFMR LAMINATED 5VA TH |
3,268 | $9.37 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 420mA, Series 210mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
|
|
VPP16-310PWR XFMR LAMINATED 5VA TH |
2,041 | $9.37 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 620mA, Series 310mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
