| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD125SC150A.T1PIV 150V IO 15A CHIP SIZE 125MIL |
2,089 | $1.29 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 5V, 1MHz | - | 500 µA @ 150 V | 150 V | 15A | -55°C ~ 200°C | 890 mV @ 15 A | |
|
|
SD125SC150B.T1PIV 150V IO 15A CHIP SIZE 125MIL |
2,165 | $1.29 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 5V, 1MHz | - | 500 µA @ 150 V | 150 V | 15A | -55°C ~ 200°C | 890 mV @ 15 A | |
|
|
SD125SC200B.T1PIV 200V IO 15A CHIP SIZE 125MIL |
3,415 | $1.29 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 5V, 1MHz | - | 350 µA @ 200 V | 200 V | 15A | -55°C ~ 200°C | 920 mV @ 15 A | |
|
|
SD125SCU100A.T1PIV 100V IO 15A CHIP SIZE 125MIL |
3,267 | $1.29 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 600pF @ 5V, 1MHz | - | 350 µA @ 100 V | 100 V | 15A | -55°C ~ 200°C | 840 mV @ 15 A | |
|
|
S3D30065D1DIODE SCHOTTKY SILICON CARBIDE S |
275 | $10.14 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
S3D30065HDIODE SCHOTTKY SILICON CARBIDE S |
300 | $10.38 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1705pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 30A | -55°C ~ 175°C | 1.75 V @ 30 A | |
|
|
S4D20120ADIODE SCHOTTKY SILICON CARBIDE S |
150 | $10.70 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 721pF @ 0V, 1MHz | 0 ns | 40 µA @ 1200 V | 1200 V | 20A | -55°C ~ 175°C | 1.8 V @ 20 A | ||
|

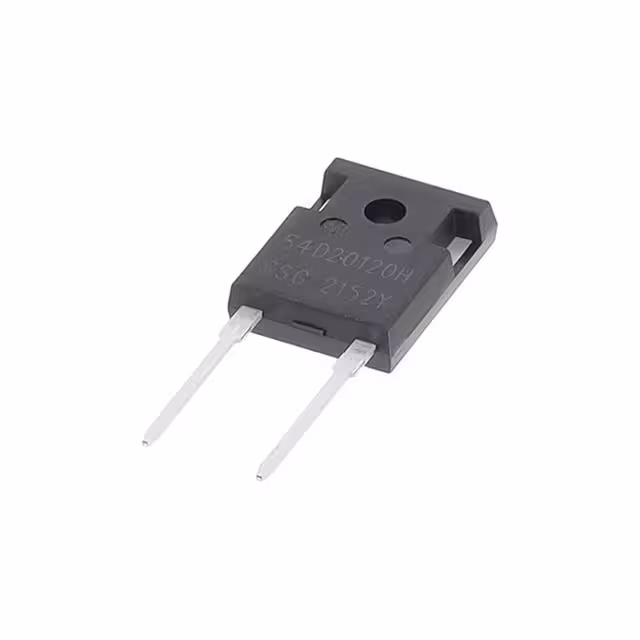

S4D20120HDIODE SCHOTTKY SILICON CARBIDE S |
600 | $11.17 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 721pF @ 0V, 1MHz | 0 ns | 40 µA @ 1200 V | 1200 V | 20A | -55°C ~ 175°C | 1.8 V @ 20 A | |
|
|
S3D35065D1DIODE SCHOTTKY SILICON CARBIDE S |
600 | $11.56 |
RFQ |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 2000pF @ 0V, 1MHz | 0 ns | 45 µA @ 650 V | 650 V | 35A | -55°C ~ 175°C | 1.7 V @ 35 A | ||
|
SDUR6020WDIODE GEN PURP 200V 60A TO247AC |
2,623 | $1.23 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 40 µA @ 200 V | 200 V | 60A | -55°C ~ 150°C | 1.08 V @ 60 A | |
|
|
SD165SC150B.T2PIV 150V IO 30A CHIP SIZE 165MIL |
3,852 | $1.24 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1000pF @ 5V, 1MHz | - | 1 mA @ 150 V | 150 V | 30A | -55°C ~ 200°C | 890 mV @ 30 A | |
|
|
10SQ050TR10A, 50V, R-6, SCHOTTKY RECTIFIE |
3,389 | $0.91 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 50 V | 50 V | 10A | -55°C ~ 175°C | 550 mV @ 10 A | ||
|
|
SD175SA30A.T2PIV 30V IO 30A CHIP SIZE 175MIL |
2,648 | $1.25 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 2200pF @ 5V, 1MHz | - | 4 mA @ 30 V | 30 V | 30A | -55°C ~ 150°C | 490 mV @ 30 A | |
|
|
SD175SA30B.T2PIV 30V IO 30A CHIP SIZE 175MIL |
2,267 | $1.25 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 2200pF @ 5V, 1MHz | - | 4 mA @ 30 V | 30 V | 30A | -55°C ~ 150°C | 490 mV @ 30 A | |
|
|
SD175SA45A.T2PIV 45V IO 30A CHIP SIZE 175MIL |
2,469 | $1.25 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1600pF @ 5V, 1MHz | - | 3 mA @ 45 V | 45 V | 30A | -55°C ~ 150°C | 560 mV @ 30 A | |
|
|
SD175SB45A.T2PIV 45V IO 30A CHIP SIZE 175MIL |
2,597 | $1.25 |
RFQ |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1600pF @ 5V, 1MHz | - | 800 µA @ 45 V | 45 V | 30A | -55°C ~ 175°C | 640 mV @ 30 A | ||
|
|
SD175SB45B.T2PIV 45V IO 30A CHIP SIZE 175MIL |
2,430 | $1.25 |
RFQ |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1600pF @ 5V, 1MHz | - | 800 µA @ 45 V | 45 V | 30A | -55°C ~ 175°C | 640 mV @ 30 A | ||
|
SDURB2060TRDIODE GEN PURP 600V 20A D2PAK |
2,383 | $0.35 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 600 V | 600 V | 20A | -55°C ~ 150°C | 2 V @ 20 A | |
|
SDURF2060DIODE GEN PURP 600V 20A ITO220AC |
2,132 | $0.35 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 600 V | 600 V | 20A | -55°C ~ 150°C | 2 V @ 20 A | |
|
|
SD200SA30B.T1PIV 30V IO 60A CHIP SIZE 200MIL |
2,991 | $3.40 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 3300pF @ 5V, 1MHz | - | 6 mA @ 30 V | 30 V | 60A | -55°C ~ 150°C | 530 mV @ 60 A |
