MCC255-16IO1 Dual Thyristor Module: Features, Applications, and Performance Guide
7/2/2025 4:37:55 PM
The MCC255-16IO1 from IXYS is a strong and reliable dual thyristor module built for heavy-duty jobs. It handles high voltages and currents, making it perfect for motor control, heating systems, and power conversion. This article explains its main features, common applications, size and installation details, how it performs in real use, typical problems and how to solve them, alternative products, and how it compares with similar modules. Continue reading to learn why the MCC255-16IO1 is a trusted choice for managing electrical power.

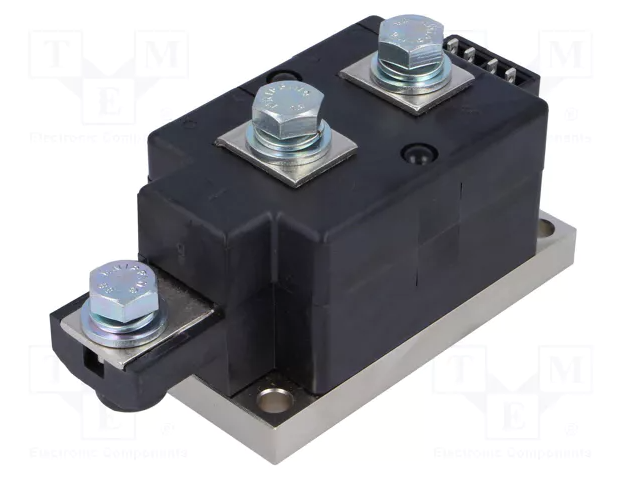

The MCC255-16IO1 from IXYS is a strong and reliable dual thyristor (SCR) module. It can handle high voltage up to 1.6 kV and high current up to 250 A, making it great for tough jobs. With a surge current of up to 7.82 kA and good cooling performance, it works well even in harsh conditions.
The module is easy to install, has strong insulation up to 3.6 kV, and is perfect for motor controls, heaters, and power converters. Its solid design helps keep systems running smoothly and reduces maintenance. Whether you are upgrading old systems or building new ones, this module is a safe and cost-effective choice for controlling large amounts of power.
If you are interested in purchasing the MCC255-16IO1, feel free to contact us for pricing and availability.
MCC255-16IO1 Features/Benefits
The MCC255-16IO1 offers several important features that make it a strong choice for demanding power applications. These benefits help ensure reliable performance and easy integration into different systems. The main features include:
International Standard Package
Makes it easy to use and replace in many systems around the world.
Direct copper bonded Al₂O₃-ceramic with copper base plate
Provides excellent heat transfer and strong mechanical support, helping it run cooler and last longer.
Planar Passivated Chip
Improves durability and protects the chip surface, ensuring stable performance over time.
Keyed gate/cathode twin pins
Allows easier and safer connections, reducing the risk of wiring mistakes.
MCC255-16IO1 Applications
Motor Control, Softstarter
Helps start and manage motors smoothly, protecting equipment and improving efficiency.
Power Converter
Converts electrical power from one form to another, useful in many industrial and energy systems.
Heat and Temperature Control for Industrial Furnaces and Chemical Processes
Maintains precise heating levels, ensuring safety and consistent product quality in high-temperature processes.
Lighting Control
Provides reliable switching and dimming for lighting systems, saving energy and extending bulb life.
Solid State Switches
Used for fast and reliable switching without moving parts, increasing system durability and reducing maintenance.
MCC255-16IO1 Package Outline
The packaging outline of the MCC255-16IO1 shows the shape and size of the module so you can easily plan how to install it. The module is 115 mm long, 50 mm wide, and about 45 mm tall. These details help you know how much space it needs.
The drawing also shows where to put the screws and how far apart the terminals are. The big screw terminals marked 1, 2, and 3 are for the main power connections. The smaller pins (numbered 4 to 7) are for control signals like the gate and cathode.
The side view shows the height and screw positions clearly. It also tells you the size of screws to use, like M8 bolts, so the module stays firmly attached.
Overall, this outline makes it easier to install the MCC255-16IO1 safely and correctly.
MCC255-16IO1 Performance Graph
Figure 1 shows the surge overload current, meaning how much sudden high current the module can handle for a short time without damage.
Figure 2 displays the I²t value over time, which helps understand how much energy the module can absorb during a fault or short circuit.
Figure 3 shows the maximum forward current the module can carry depending on the case temperature and type of current waveform. Together, these graphs help users know the safe limits of the module to avoid overheating or failure and ensure reliable operation in real-world applications.
MCC255-16IO1 Manufacturer
The MCC255-16IO1 is made by IXYS, a well-known company that makes reliable power semiconductor products. IXYS is famous for high-quality thyristors, diodes, and modules that control power in motors, heaters, and other industrial systems. Their products, like the MCC255-16IO1, are trusted because they last long and work well even in tough conditions.
Conclusion
The MCC255-16IO1 is a dependable module that works well even under tough conditions. By understanding common issues like overheating, trigger failures, and electrical stress, users can easily keep it running smoothly. Performance graphs and clear installation instructions help make sure it's used safely and efficiently. If you need a strong and easy-to-use power module, the MCC255-16IO1 is a great option. Contact us now for more details and bulk order information.
